Home /Products/Underground Fiber Optic Cable/Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53

Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53

1km
MOQ
Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Model Number: GYTA53/GYTS53
Number Of Fiber: 4-288 Cores
Sheath: PE
Suitable Temperature: -40℃ +70℃
Fiber Type: Single Mode G652D
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Manufacturer: Yes
Armored Fiber Cable: Yes
OEM: Available
Highlight:

288 Fibers Armored Optical Fiber Cable

,

4Fibers Armored Optical Fiber Cable

,

288 Fibers Underground Fiber Optic Cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC
Model Number: GYTA53/GYTS53
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Product Description

Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53

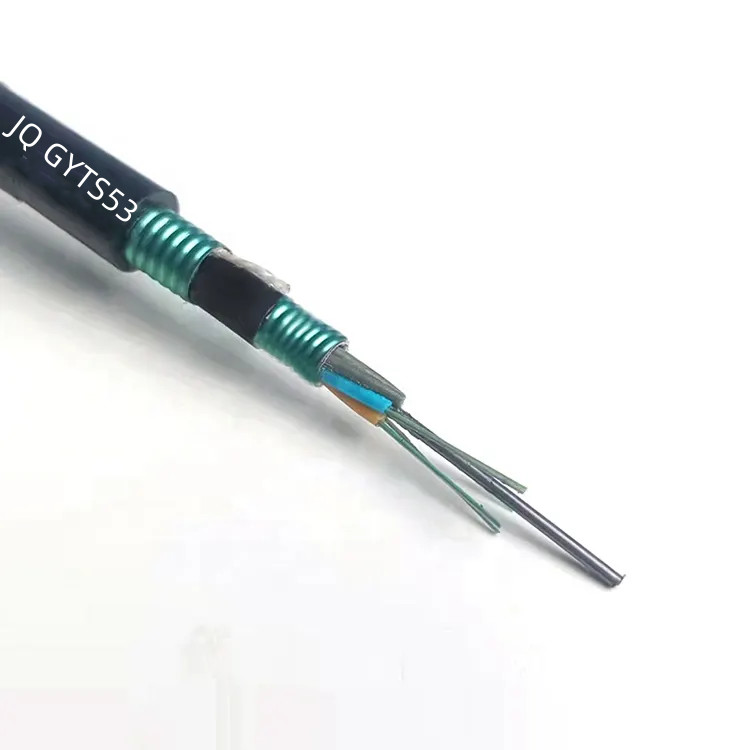

1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

2.A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

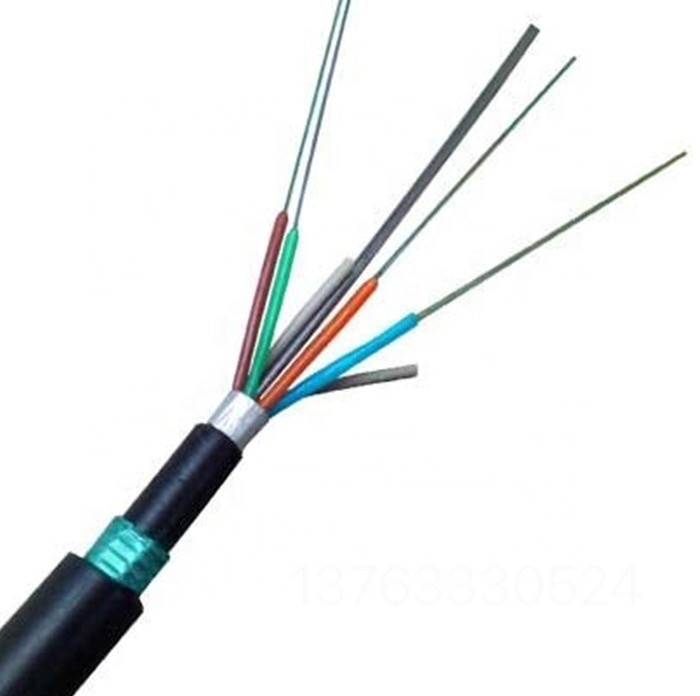

Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53 0

Features

Loose tube gel-filled construction for superiorfiber protection.

Double jacket single armored(GYTY53) and Double jacket double armored

(GYTA53) for rodent pr.otection and direct burial.

UV and moisture-resistant design



Applications

Directburied, DuctorUnderground conduits.

Backbone.


Technical data
No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.5
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.8
1.8
2.1
Thickness(±0.03)mm
0.32
0.32
0.35
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.8
1.8
2.1
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.25
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
13.2
13.2
13.8
Cable Weight(±10)kg/km
152
155
165
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

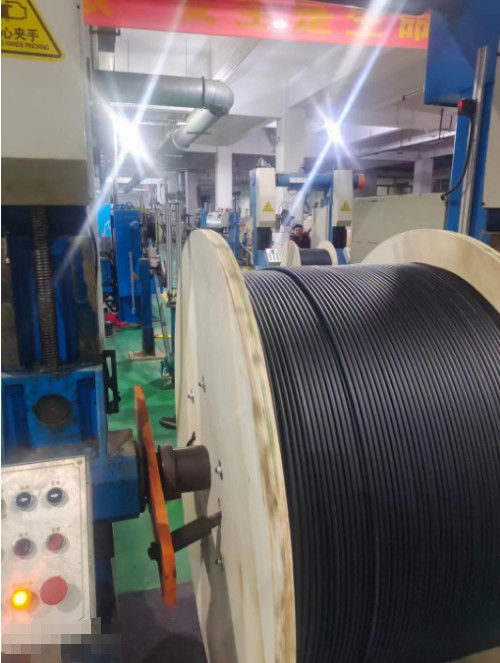

Exhibition:

Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53 1

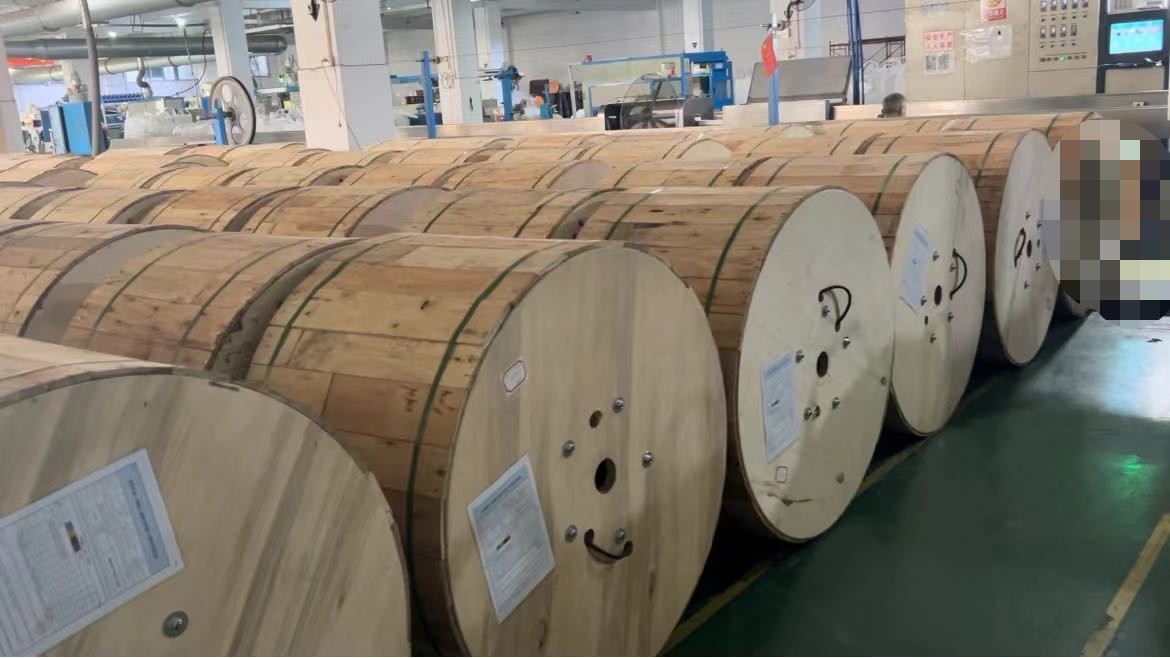

Company profile:

Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53 2

FAQ



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53 3
