Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD for Overhead Laying with 1MM Steel Wire Strength
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
---|---|---|---|
Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
Supply Ability : | 4500km per month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO9001 | Model Number: | GYFTY |
Detail Information |
|||
Place Of Origin: | Zhejiang, China | Brand Name: | Jiqian |
---|---|---|---|
Number Of Conductors: | ≥ 10 | Strength Member: | FRP |
Laying Mode: | Duct/Aerial | Storage/operating Temperature:: | -40 To +70 °C |
Installation: | Duct/overhead | OEM: | Yes |
Manufacturer: | Yes | Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
Highlight: | ISO9001 96cores aerial fiber optic cable 96Cores Aerial Fiber Optic Cable,FCC SDOC 96Cores FRP Fiber Optic Cable,SDOC Aerial Fiber Optic Cable |
Product Description

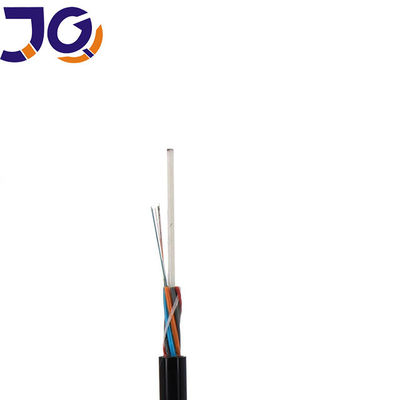

96 Cores Non-Armored Stranded Loose Tube Strength Member FRP Fiber Optic Cable
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
No. of cable
|
96
|
||
Fiber Model
|
G652D
|
||
Design(Strength Member +Tube)
|
1+8
|
||
Central Strength Member
|
Material
|
FRP
|
|
Diameter(±0.05)mm
|
2.1
|
||
Cushion
|
Material
|
PE
|
|
Thickness(±0.03)mm
|
0.65
|
||
Loose Tube
|
Material
|
PBT
|
|
Diameter(±0.06)mm
|
2.1
|
||
Thickness(±0.03)mm
|
0.35
|
||
The Max.Core NO./Tube
|
12
|
||
Water Blocking layer(Material)
|
Flooding Compound
|
||
Outer Sheath
|
Material
|
MDPE
|
|
Thickness(±0.2)mm
|
1.8
|
||
Cable Diameter(±0.2)mm
|
11.2
|
||
Cable Weight(±5)kg/km
|
90
|
||
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|
Under Maximum Tension
|
20.0×Cable-φ
|
||
Temperature range
(℃) |
Installation
|
-20~+60
|
|
Transport&Storage
|
-40~+70
|
||
Operation
|
-40~+70
|
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
