GJXH GJXFH LSZH Jacket 2 Core G657A FTTH Drop Cable
GJXH GJXFH LSZH Jacket 2 Core G657A FTTH Drop Cable GJXH GJXFH LSZH Jacket 2 Core G657A FTTH Drop Cable
Contact Now

Detail Information
Place Of Origin: Guangzhou,China Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GJXH
Service: OEM Manufactuer: Yes
Weigt: 10kg Strength Member: 0.5mm Steel Wire Or FRP
Material Of Jacket: LSZH Number Of Fiber: 1/2/4 Cores
High Light:

GJXH GJXFH FTTH Drop Cable

,

GJXFH G657A FTTH Drop Cable

,

LSZH GJXH GJXFH 2 core drop cable

Product Description

GJXH GJXFH LSZH Jacket 2 core G657A FTTH Drop Cable


FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), orother contracted material.Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.

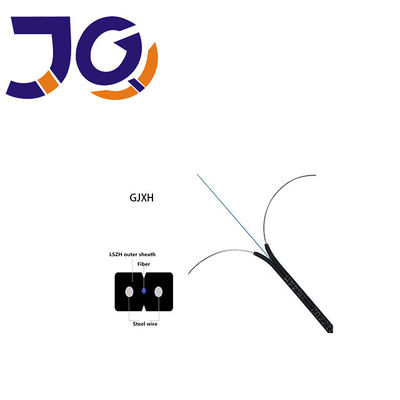

GJXH GJXFH LSZH Jacket 2 Core G657A FTTH Drop Cable 0

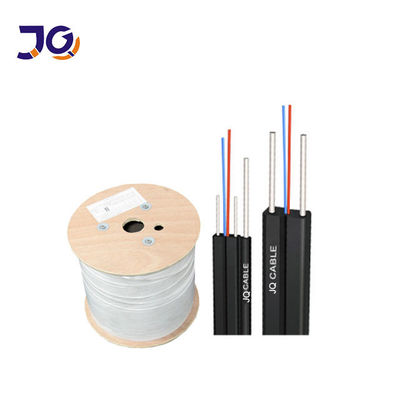

GJXH GJXFH LSZH Jacket 2 Core G657A FTTH Drop Cable 1

Feature



1.Two parallel steel wire /FRP strength members ensure good performance of crush resistance to protect the fiber.


2.Novel flute design, easily strip and splice, simplify the installation and maintenance.

3.Low smoke zero halogen (LSZH)and flame retardant sheath.

4.Cable diameter (2.0±0.2)x(3.0±0.2)mm.

Application

1.Fiber to the home (FTTH)
2.Wide Area Networks (WANs)
3.Industrial, medical & military
4.CATV
5.Video
6.Active Device Termination
7.Premise Installations
8.Telecommunication Networks

Optical Characteristics

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5




Structure and Technical Specification

Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)


Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
1-4 3.0*2.0 9.0 80/200 40/100 1000/2200 500/1000




FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
