Home /Products/FTTH Fiber Optic Drop Cable/G657a G652d 4 Core FTTH Fiber Optic Drop Cable LSZH Sheath

G657a G652d 4 Core FTTH Fiber Optic Drop Cable LSZH Sheath

1km
MOQ
G657a G652d 4 Core FTTH Fiber Optic Drop Cable LSZH Sheath
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Number Of Conductors: 1/2/4
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
Certification: ISO 9001
Manufacturer: Yes
Outer Sheath: LSZH
Fiber Brand: Fiberhome/YOFC
Highlight:

G652d FTTH Fiber Optic Drop Cable

,

G657a FTTH Fiber Optic Drop Cable

,

4 Core Ftth Drop Cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001
Model Number: GJYXCH
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

Supply Ftth Fiber G657a G652d 1 2 4 Core Self Supporting Lszh Sheath Fiber Optical Drop Cable

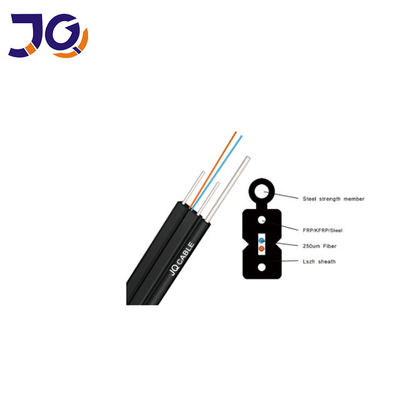

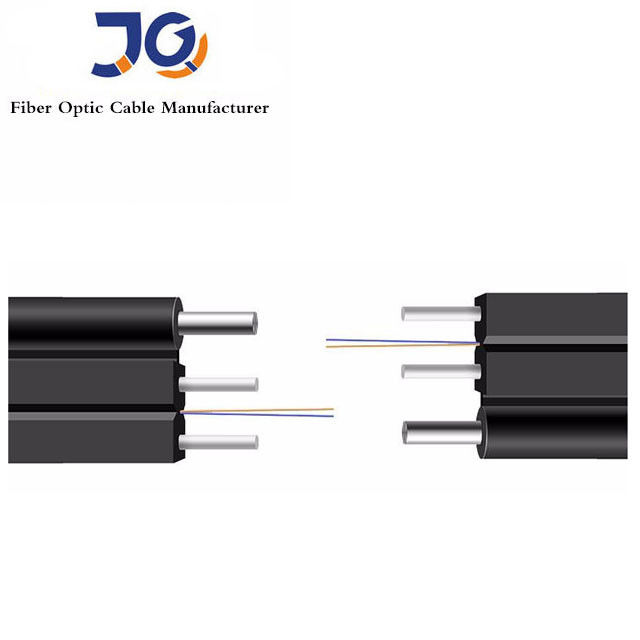

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. it's completed with black or white LSZH sheath.



G657a G652d 4 Core FTTH Fiber Optic Drop Cable LSZH Sheath 0



Optical Characteristics

  G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20°C)

 @850nm     ≤3.5 dB/km ≤3.5 dB/km
@1300nm     ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.45 dB/km ≤0.50 dB/km
@1550nm ≤0.30 dB/km ≤0.50dB/km



Bandwidth (Class A)

 @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm







Technical Parameters


Fiber Count
Cable Diameter
mm
Cable Weight
kg/km
Tensile Strength
Long/Short Term
N		 Crush Resistance
Long/Short Term
N/100mm
Bending Radius

Static
/Dynamic
mm
1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
2 (2.0±0.2)×(3.4±0.2) 8.5 30/60 300/1000 15/30
4 (2.0±0.2)×(4.0±0.2) 10 30/60 300/1000 15/30






FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
