1MM Steel Wire Strength 2 4 8 12 24 Core Outdoor Fiber Optic Cable GYXTW
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T |
Supply Ability : | 30KM Per days |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001 ROHS CE-EMC FCC | Model Number: | GYFXY-12B1 |
Detail Information |
|||
Fiber Type: | Single Mode G652D | Jacket Material: | PE/MDPE |
---|---|---|---|
Strength Member: | FRP | Cable Diameter: | 5.5/6.0/7.0/8.0/9.0 Mm |
Color: | Black | Storage/Operation: | -40℃~+70℃ |
Application: | Aerial/Duct | Fiber Count: | 2/4/6/8/12 Core |
Type: | Singlemode & Multimode | Length: | 2km Or Customized Length |
Highlight: | GYFXY Fiber Optic Cable,MDPE Fiber Optic Cable,5.5mm Aerial Fiber Optic Cable |
Product Description
Product Description

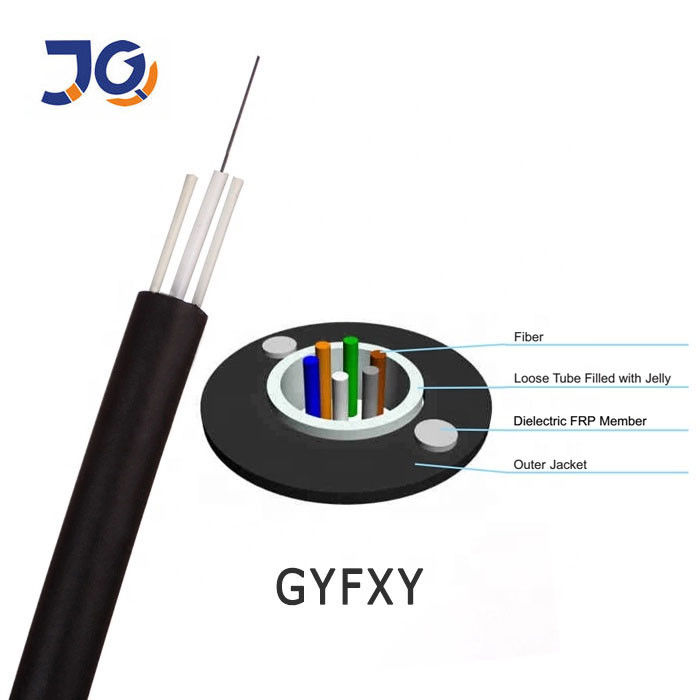

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.
The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
Optical Characteristics
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
Attenuation(+20C) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
@1310nm |
≤036dB/km |
≤0.40dB/km |
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
|
≤2500MHz-km |
≥2200MHz.km |
@1300nm |
|
|
≤1000MHz.km |
≥2600MHz-km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.15NA |
|
CableCut-off Wavelength |
≤1260m |
≤1480nm |
|
|
Technical Data
Fiber count |
Cable diameter(mm) |
Nominal weight(KGS) |
AllowableTensileLoad(mm) |
Allowable Crush Resistance(N/100m) |
||
Short term |
Long term |
Short term |
Long term |
|||
2-12 |
8.0 |
60 |
800N |
400N |
1000N/100m |
300N/100m |
Package
Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;
Shipping way
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Performance
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
Fiber : Single mode G652D/Mutli mode 50/125 or 62.5/125
Installation : Suitable for aerial or duct
Application : Apply to Long distance communication system, Local area network system and Subscriber
Network system
Lifetime : above 30 years
Operating temperature : -30°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.
