12 16 24 48 core Fiber Optic Cable GYTA53 Direct burial Double Sheath and Armored Outdoor Optical Fiber Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYTA53 |
|
Detail Information |
|||
| Fiber Type: | G652D | Color: | Black |
|---|---|---|---|
| Jacket: | PE,MDPE | Fiber Count: | 2-288cores |
| Product Name: | Stranded Loose Tube Armored Cable | Length: | 2km Or Customized Length |
| Installation: | Aerial & Duct | Oem: | Available |
| Application: | Telecommunication | Type: | Singlemode &Multimode |
| Name: | Outdoor Armor Fiber Optic Cable | ||
| Highlight: | GYTA53 Fiber Optic Cable,SDOC Fiber Optic Cable,2km Underground Fiber Optic Cable |
||
Product Description
Double Jacket Armored Direct Buried Duct GYTA53 GYTS53 Underground Cable

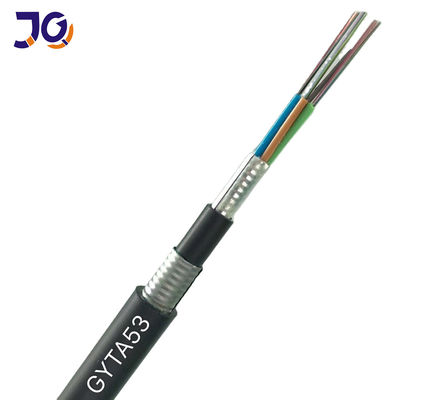

Aluminum Armored Directly Buired Fiber Optic Cable GYTA53

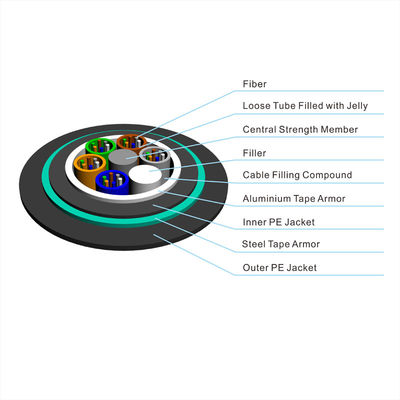

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with PE outer sheath.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Suitable for directly buired laying method
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
|
Fiber
Count |
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Allowable Tensile Load
(N) |
Allowable Crush Resistance
(N/100mm) |
||
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
|
2~30
|
13.2
|
162
|
3000
|
1000
|
3000
|
1000
|
|
32~48
|
13.8
|
175
|
3000
|
1000
|
3000
|
1000
|
|
50~72
|
14.6
|
205
|
3000
|
1000
|
3000
|
1000
|
|
74~96
|
16.0
|
230
|
3000
|
1000
|
3000
|
1000
|
|
98~144
|
17.6
|
285
|
3000
|
1000
|
3000
|
1000
|
|
＞144
|
Avaliable upon customer's request
|
|||||
Product show
Packing
1/2/3/4km or customized length export wooden drum
