2 cores 4 cores FTTH fiber optic cable flat cable GJXH/GJXFH with steel wire or FRP
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500 per month |
| Model Number: | GJYXCH/GYXFCH |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Number Of Conductors: | 1/2/4 |
| Application: | Outdoor Aerial | Fiber Type: | G652D/G657A1/G657A2 |
| Manufacturer: | Yes | Outer Sheath: | LSZH |
| Fiber Brand: | Fiberhome/YOFC | ||
| High Light: | Aerial FTTH Fiber Optic Drop Cable,657A FTTH Fiber Optic Drop Cable |
||
Product Description

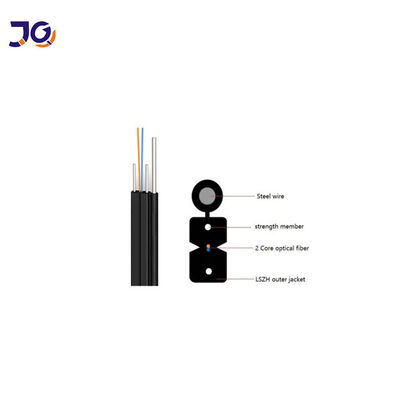

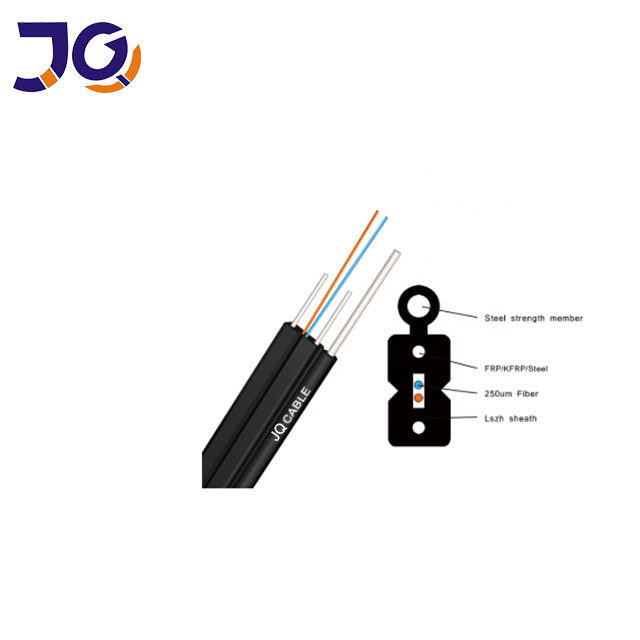

Outdoor Aerial Single Mode Ftth Drop Cable 1/2/4 657A Flat Cable With Messenger Fiber Optic Cable
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20°C) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.45 dB/km | ≤0.50 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.50dB/km | |||
|
Bandwidth (Class A) |
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
||
Technical Parameters
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
Packing:
Certification:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
