6mm Unit Tube Two FRP Fiber Optic Cable GYFXTY

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC Model Number: GYFXTY-12B1

Detail Information

Fiber Type: Single Mode G652D Jacket Material: PE
Strength Member: FRP Cable Diameter: 6mm
Color: Black Storage/Operation: -40℃~+70℃
Application: Aerial/Duct Fiber Count: 2/4/6/8/12 Core
Type: Singlemode & Multimode Length: 2km Or Customized Length
High Light:

FRP Fiber Optic Cable

,

6mm Fiber Optic Cable

,

GYFXTY Aerial Fiber Optic Cable

Product Description

Unit tube Non-metallic Non-armored Fiber Optic Cable GYFXY

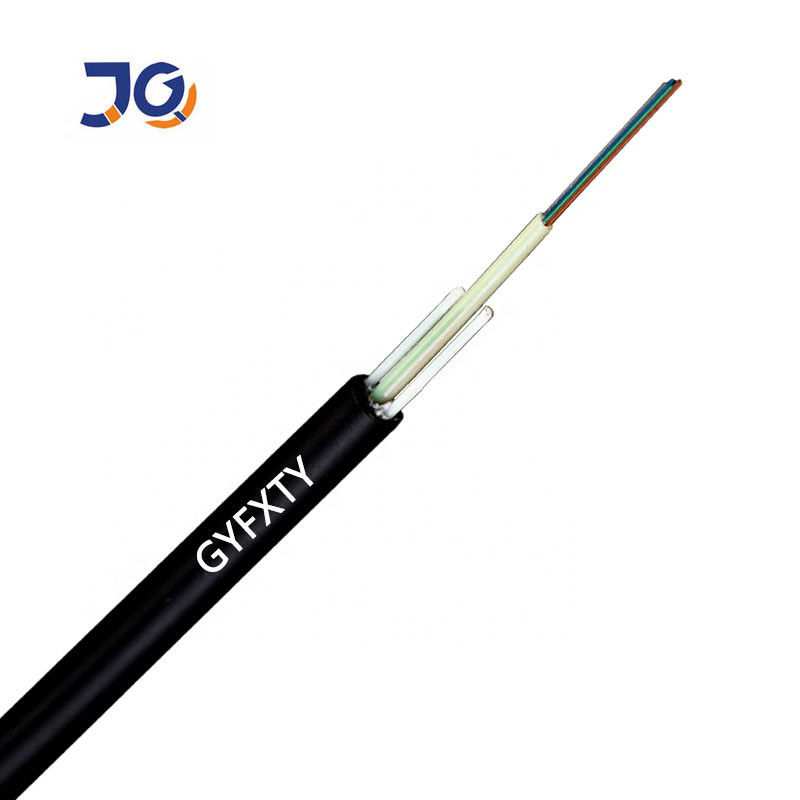

6mm Unit Tube Two FRP Fiber Optic Cable GYFXTY



Product Description

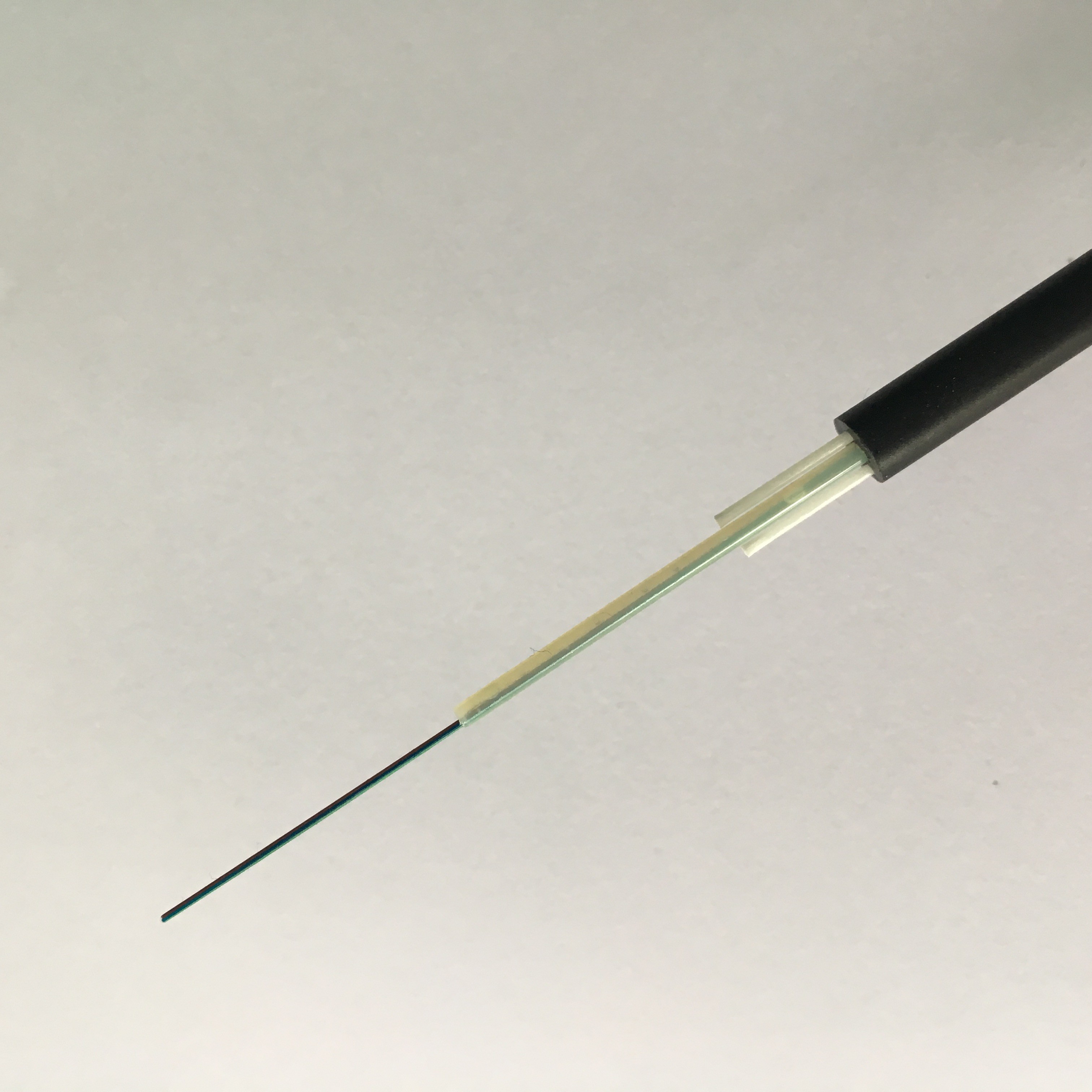

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.

The cable is completed with a polyethylene (PE) sheath.



Features

Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.



Optical Characteristics











G.652



G.655



50/125μm



62.5/125μm



Attenuation(+20C)



@850nm











3.0dB/km



≤3.0dB/km



@1300nm











≤1.0dB/km



≤1.0dB/km



@1310nm



≤036dB/km



≤0.40dB/km











@1550nm



0.22dB/km



≤0.23dB/km











Bandwidth(ClassA)



@850nm











2500MHz-km



2200MHz.km



@1300nm











1000MHz.km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.15NA



CableCut-off Wavelength



1260m



1480nm













Technical Data



Fiber

count



Cable

diameter(mm)



Nominal

weight(KGS)



AllowableTensileLoad(mm)



Allowable Crush Resistance(N/100m)



Short term



Long term



Short term



Long term



2-12



6.0



45



800N



400N



1000N/100m



300N/100m





Package

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;

6mm Unit Tube Two FRP Fiber Optic Cable GYFXTY 0



Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

6mm Unit Tube Two FRP Fiber Optic Cable GYFXTY 1

Performance


Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
Fiber : Single mode G652D/Mutli mode 50/125 or 62.5/125
Installation : Suitable for aerial or duct
Application : Apply to Long distance communication system, Local area network system and Subscriber
Network system
Lifetime : above 30 years
Operating temperature : -30°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.
