G657A2 Self Supporting 2 4 Cores FTTH Fiber Optic Drop Cable

1km
MOQ
G657A2 Self Supporting 2 4 Cores FTTH Fiber Optic Drop Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Number Of Conductors: 1/2/4
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
Certification: ISO 9001
Manufacturer: Yes
Outer Sheath: LSZH
Fiber Brand: Fiberhome/YOFC
Highlight:

G657A2 FTTH Fiber Optic Drop Cable

,

ROHS FTTH Fiber Optic Drop Cable

,

Self Supporting Optic Drop Cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001 CE FCC ROHS
Model Number: GJYXCH/GYXFCH
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

Self-supporting Fibre To The Home FTTH 1 2 4 cores Fiber Optic Drop Cable



FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. it's completed with black or white LSZH sheath.

G657A2 Self Supporting 2 4 Cores FTTH Fiber Optic Drop Cable 0
G657A2 Self Supporting 2 4 Cores FTTH Fiber Optic Drop Cable 1
Technical data:

Product Model
GJYXCH/GJYXFCH
Product Name
Self- supporting metallic strength member optical fiber drop cable
size
5.2×2.2MM

Attenuation index

wavelength
B1.1 B1.3
(G.652)
(DB/KM)
B6a(G.657A)
(DB/KM)
B6b(G.657b)
(DB/KM)
1310
≤0.45
≤0.45
≤0.60
1550
≤0.30
≤0.30
≤0.50

Technical parameter
Model
Fiber
count
Fiber
model
Max.tensile (N)
Long-time/
short-time
Max.squashed force (N)
Long-term/
short time
Max.Bending radius
Long-time/
Short-time
GJYXFCH
4
B1.1 B1.3
300/600
1000/2200
30/60
B6a
300/600
1000/2200
15/30
B6b
300/600
1000/2200
10/25
GJYXFCH
1/2
B1.1 B1.3
300/600
1000/2200
30/60
B6a
300/600
1000/2200
15/30
B6b
300/600
1000/2200
10/25
Length type
500M 1000M 2000M per reel or as your request

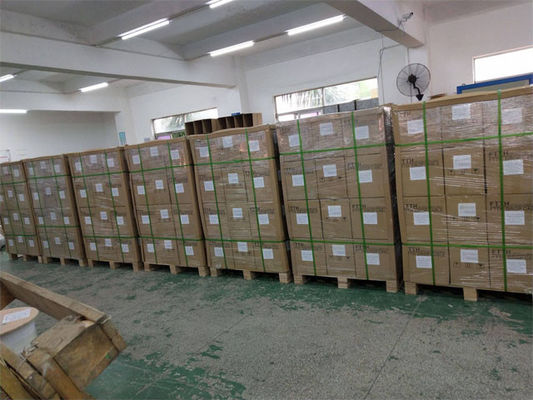

Packing:

G657A2 Self Supporting 2 4 Cores FTTH Fiber Optic Drop Cable 2

Certification:

G657A2 Self Supporting 2 4 Cores FTTH Fiber Optic Drop Cable 3

FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
