YOFC LSZH Sheath FTTH Fiber Optic Drop Cable for Communication
Contact Person : Philip
Phone Number : +8613422342788
WhatsApp : +8613422342788
|Minimum Order Quantity :||1000m||Packaging Details :||package carton|
|Delivery Time :||2-4day||Payment Terms :||Western Union, MoneyGram, T/T, L/C|
|Supply Ability :||100km per 2 day|
|Place of Origin:||CHINA||Brand Name:||jiqian|
|Certification:||ISO||Model Number:||GJXH GJXCH GJXFXCH|
|Material:||LSZH /PVC||Fiber Type:||G657A1/A2/G652D/G657A1/G657A2|
|Color:||White /black||Central Strength Member:||FRP Strength Member/steel Wire|
|Core:||2 4 6|
Gjyxfch Drop Wire Cable,
G657A1 Drop Wire Cable,
FRP Fiber Optic Drop Cable
Outdoor Self-supporting Gjyxfch G657/G652D Fiber Ftth Drop Cable
Gjyxfch Drop Wire Outdoor Self Supporting Drop Wire Cable 2F G657A1 Fiber FRP Strength
Item Model: GJYXFCH (1/ 2 / 4 fibers)

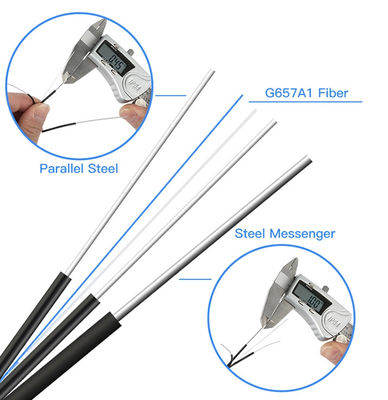

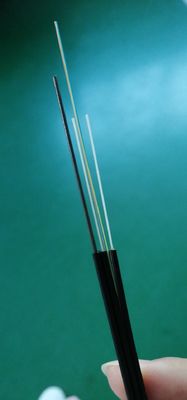

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Special low-bend sensitivity fibre provides high bandwidth and excellent communication transmission property.
Two parallet FRP strength member ensure good performance of crush resistance to protect the fibre.
Simple structure, light weight and high practicability for 1 to 4 core SM Indoor FTTH Drop cable.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.
Single steel wire as the additional strength member ensures good performance of tensile strength
|Number of fiber||1~4 core|
|strength member||Material||steel wire/FRP/KFRP|
|Self support Messenger wire||Material||steel wire|
|Cable size (Height * width)||2.0(±0.1) mm × 5.0(±0.2)mm|
|Cable sheath thickness||Max. 0.8mm/Min. 0.4mm|
|Messenger sheath thickness||0.5~0.7mm|
|Installation Temperature range(℃)||-20+60|
|Operation and transport temperature(℃)||-40+70|
|Min Bending Radius(mm)||Long term||15D|
|Crush Load (N/100mm)||Long term||1000|
|Crush Load (N/100mm)||short term||2200|

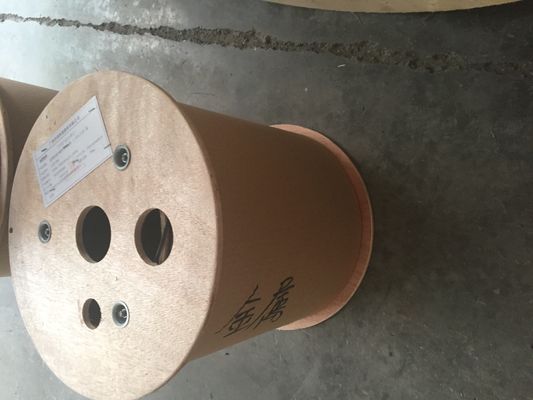

1.Wooden roll, 1000m/roll,2000m/roll,3000m/roll,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.
