Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable
Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable
Contact Now

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable

Minimum Order Quantity : 1KM Packaging Details : wooden package or cartoon box
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 Model Number: GJYXCH/GJYXFCH

Detail Information
Fiber Count: 1/2/4 Core Jacket Color: Black,White
Jacket Material: LSZH/PVC/PE Attenuation(max): ≤0.36dB /KM(1310nm)
Strength Member: Steel Messenger Wire/FRP Fiber: YOFC,or As Request
Weight: 20kgs/km Length: 1km Or 2km
Fiber Type: G657A1/A2/G652D Application: FTTH,Network
High Light:

G652D FTTH Fiber Optic Drop Cable

,

Outdoor FTTH Fiber Optic Drop Cable

,

LSZH Fiber Optic Drop Cable

Product Description

Self-Supporting Steel Strand Outdoor FTTH Fiber Optic Drop Cable

Product Description

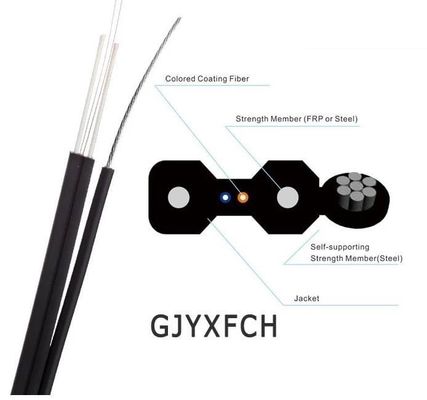

The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance.

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 0



Features

G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable

Outdoor ftth Self-supporting drop cable(GJYXCH/GJYXFCH)
FRP/KFRP or steel wire strength element

Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification

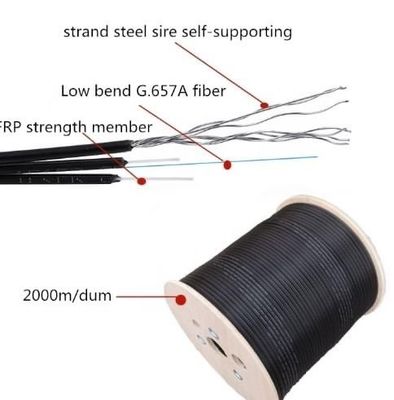

Product detail

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 1

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 2

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 3



Fiber Parameters



No.



Items



Unit



Specification



G.657A1



1



Mode Field Diameter



1310nm



μm



9.0±0.4



1550nm



μm



10.1±0.5



2



Cladding Diameter



um



124.8±0.7



3



Cladding Non-Circularity



%



≤0.7



4



Core-Cladding Concentricity Error



um



≤0.5



5



Coating Diameter



um



245±5







Coating Non-Circularity



%



≤6.0



7



Cladding-Coating Concentricity Error



μm



≤12.0



8



Cable Cutoff Wavelength



nm



入cc≤1260



9



Attenuation(max.)



1310nm



dB/km



≤0.35



1550nm



dB/km



≤0.21



10



Macro-Bending Loss



1turnx10mm

radius@1550nm



dB



≤0.75



1turnx10mm

radius@1625nm



dB



≤1.5





Technical parameters



Product
Model		 Fiber
Count
(core)		 Cable Diameter(mm) Cable Weight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

 Bending
Radius
Static/Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30



Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply



Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 4



Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 5



Self Supporting G652D Outdoor FTTH Fiber Optic Drop Cable 6
