Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY

Contact Now

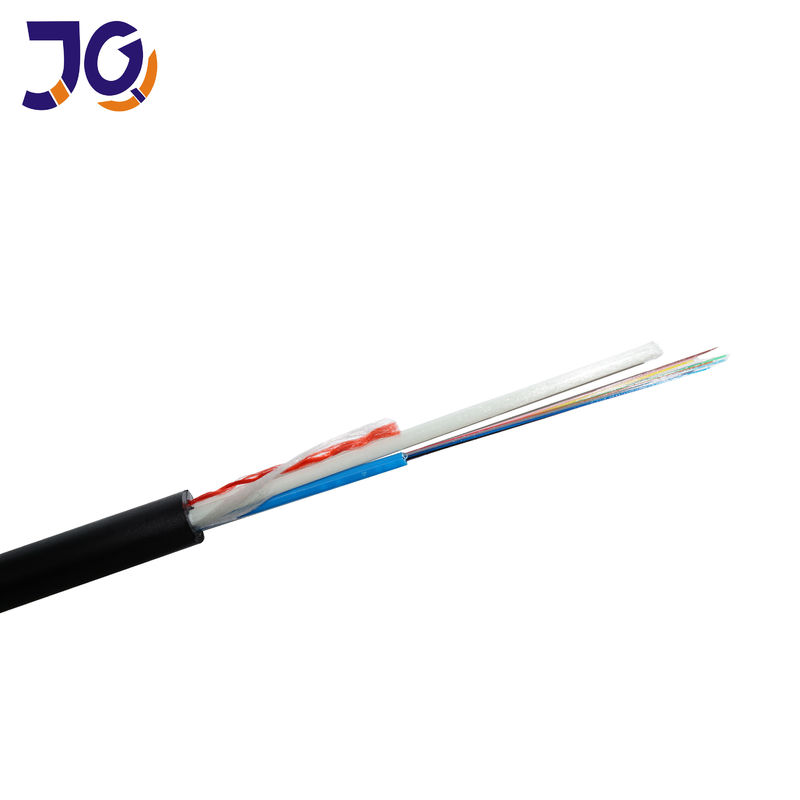

Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY

Minimum Order Quantity :	2km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	ASU Cable/GYFFY

Detail Information
Fiber Count:	12core	Type:	Aerial
Span Length:	80m Or 100m	Fiber Model:	G652D
Sheath:	PE/LSZH/PVC	Strength Member:	FRP/KFRP
Sheath Color:	Black
High Light:	FRP Drop Fiber Optic Cable , Aerial Drop Fiber Optic Cable

Product Description

Two FRP Aerial 12 Core ASU 80 Drop Fibra Optica Cable GYFFY

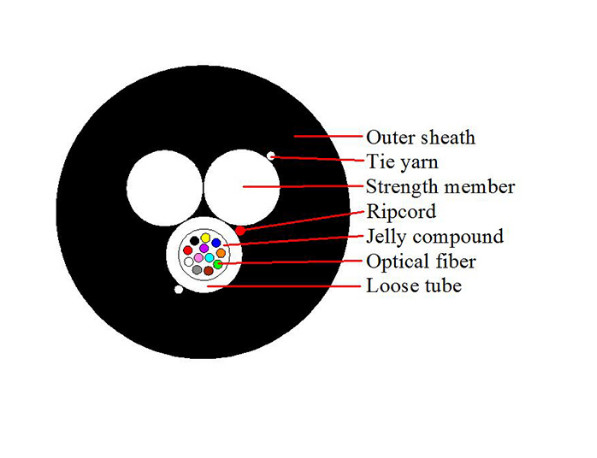

ASU cable is one loose tube stranded. Fibers, 250um , are positioned into a loose tube made of high modulus plastics. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

Feature

Small Size and Ligth Weight

Two FRP as strength member to provide good tensile performance

Gel Filled or gel free , good waterproof performance

Low price ,high fiber capacity

applicable for short span aerial and duct installation

Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY 0

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

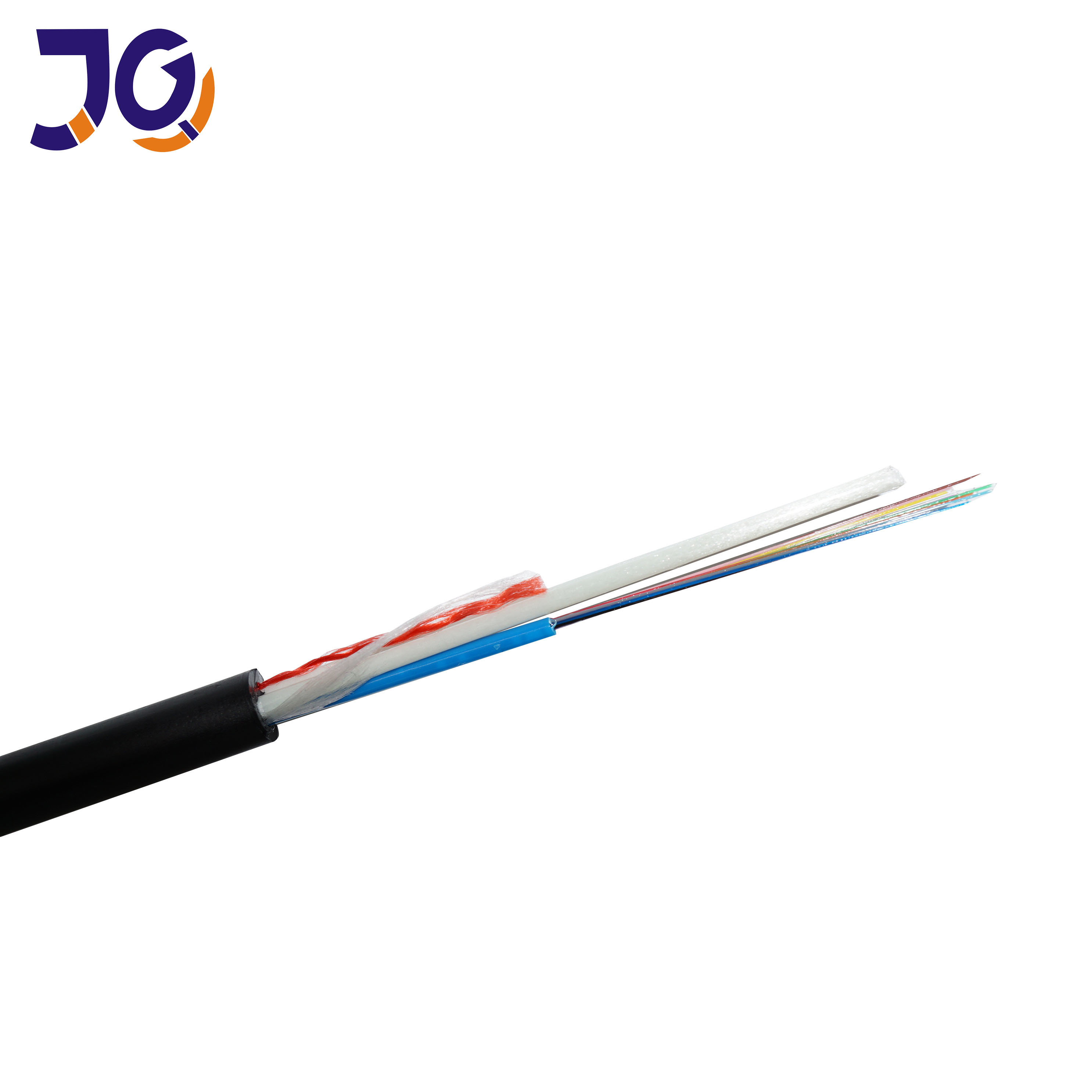

Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY 1

Technical parameter

Cable Core	Unit	2F	4F	6F	8F	10F	12F
No. Of Tubes		1	1	1	1	1	1
No. Of fibers	core	2	4	6	8	10	12
Fiber Counts in tube	core	2	4	6	8	10	12
Cable Diameter	mm	6.6±0.5			6.8±0.5
Cable Weight	Kg/km	40±10			45±10
Allowable tensile Strength	N	Span=80,1.5*P
Allowable crush resistance	N	1000N
Operation temperature	℃	-20℃ to +65℃

FAQ

1.Are you trading company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
