Steel Wire Strength Member FTTH Fiber Optic Cable GYXTPY

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Brand Name: JQ/OEM Certification: ISO 9001,ROHS CE-EMC FCC SDOC
Model Number: GYXTPY

Detail Information

Place Of Origin: Guangzhou,China Manufactuer: Yes
Type: Drop Cable GJXH Fiber Type: G657A1/A2/G652D/G657A1/G657A2
Jacket: LSZH PVC Length: 1km Or 2km
Oem: Available Strength Member: FRP Strength Member,steel Wire Strength Member
Weight: 20-40kg/km
High Light:

250μm FTTH Fiber Optic Cable


SDOC FTTH Fiber Optic Cable

Product Description

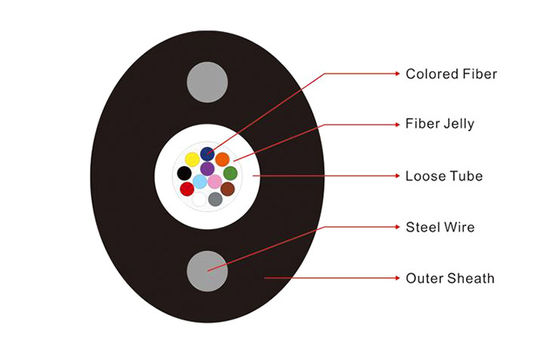

Steel Wire Strength Member Fiber Optic Cable GYXTPY Ftth Cable



1.250μm Coloured Fiber

2.PBT loose Tube

3.Tube Filling Compound(Gel)

4.PE Outer Sheath


· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Inexpensive and can reduce operating costs

· Two parallel steel wires/FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
· Long delivery length.



GYXTPY cable complies with Standard YD/T 769-2003.

Storage/Operating Temperature: -40°C to + 70°C

Steel Wire Strength Member FTTH Fiber Optic Cable GYXTPY 0
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.
The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.



Technical parameters


Model Number GYXTPY
Type Coaxial
Number of Conductors 2
Certification UL ,ROHS,SGS
Fiber SM/MM/OM3/OM4
Fiber Core 1~12 core
Jacket Material PE /LSZH/PU
Laying method Pipeline/Overhead
keywords outdoor fiber optic cable
Color Black or customized
Fiber brand Corning, YOFC,Fiberhome etc
Fire Resistant Yes
Application FTTH

Optical Characteristics:

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply



Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong drum in a carton box


Steel Wire Strength Member FTTH Fiber Optic Cable GYXTPY 1

Steel Wire Strength Member FTTH Fiber Optic Cable GYXTPY 2

Steel Wire Strength Member FTTH Fiber Optic Cable GYXTPY 3


Related Products

Steel Wire Strength Member FTTH Fiber Optic Cable GYXTPY 4



1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.


3.Q:Which brand of fiber do you use?



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


6.Can you supply customized products and logo?

A:Yes. We supply OEM service.


7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
