Product Description
Outdoor Optical Fiber Cable GYXTW 12cores G652 Fiber Optic Cable
High srength GYXTW 4 core outdoor fiber optic cable with two steel wires

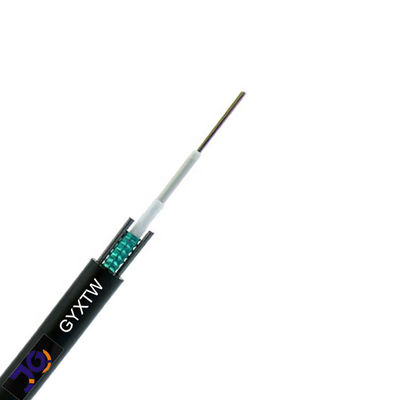

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Cable Parameters
| Items |
Specifications |
| Fiber Count |
2~24 |
| Colored Coating Fiber |
Dimension |
250μm+15μm |
| Color |
Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise |
| Loose Tube |
Dimension |
2.0mm±0.05mm |
| Material |
PBT |
| Color |
Natural |
| Strength Member |
Diameter |
1.0mm/0.7mm |
| Material |
Steel |
| Outer Jacket |
Dimension |
6.0~9.0mm |
| Material |
PE |
| Color |
Black |
Technical Parameters
Fiber
Count |
Cable
Diameter(mm) |
Cable Weight
kg/km) |
Tensile Strength
Long/Short
Term (N) |
Crush Resistance
Long/Short
Term (N/100mm) |
Bending
Radius Static/Dynamic
mm)
|
| 2~12 |
8 |
78 |
1000/3000 |
1000/3000 |
10D/20D |
| 14~24 |
10 |
90 |
1000/3000 |
1000/3000 |
10D/20D |
Application
Usable in Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
