9.0mm Diameter 4 Core Outdoor Duct Fiber Optic Cable

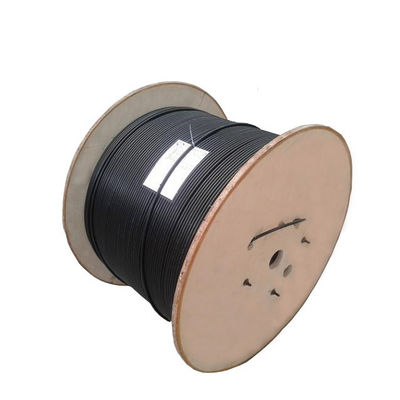

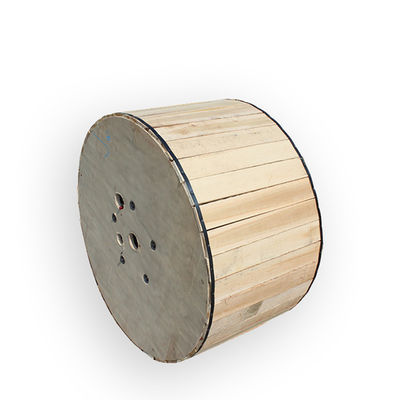

Minimum Order Quantity : 1km Packaging Details : 1/2/3/4/5 km in one wooden drum
Delivery Time : 3-5dyas Payment Terms : L/C, T/T, Western Union
Supply Ability : 200 KM Per day
Place of Origin: Guangdong China Brand Name: JQ/OEM
Certification: ISO9001/CE/ROHS Model Number: GYXTW-4B1

Detail Information

Jacket Material: PE, HDPE,MDPE,LSZH Outer Diameter: 8.0mm/6.0mm/7.0mm/9.0mm
Steel Wire: 1.0mm/0.7mm Color: Black
Fiber Type: Single Mode G652D Fiber Count: 2/4/6/8/12/24 Core
Structure: Unitube Strength Member: Two Steel Wire
Installation: Aerial &Duct Product Name: Central Loose Tube Outdoor Optic Fiber Cable
Fiber Brand: Corning/ YOFC Or Customerized
High Light:

9.0mm Duct Fiber Optic Cable


HDPE Fiber Optic Cable

Product Description

fiber optic cable 4 core outdoor


High srength GYXTW 4 core outdoor fiber optic cable with two steel wires

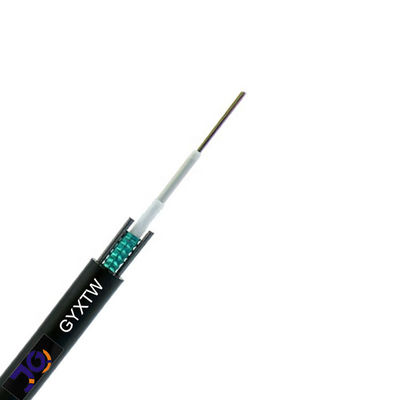

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.





9.0mm Diameter 4 Core Outdoor Duct Fiber Optic Cable 0

9.0mm Diameter 4 Core Outdoor Duct Fiber Optic Cable 1

9.0mm Diameter 4 Core Outdoor Duct Fiber Optic Cable 2



Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation


Optical Characteristics

Items Unit Specification
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22




Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White,Red, Black,Yellow,violet,pink,Turquoise
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm/0.7mm
Material Steel
Outer Jacket Dimension 6.0~9.0mm
Material PE
Color Black



Technical Parameters

Cable Weight
Tensile Strength
Term (N)
Crush Resistance
Term (N/100mm)


Radius Static/Dynamic

2~12 8  78 1000/3000 1000/3000 10D/20D
14~24 10  90 1000/3000 1000/3000 10D/20D




Usable in Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃




1.Are you trading company or manufacturer?
 We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
 for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
 We will delivery before tested every fibers when finished production.
 After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
   Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
