12 16 24 48 core Fiber Optic Cable GYTA53 Direct burial Double Sheath and Armored Outdoor Optical Fiber Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 4500KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001/ ROHS/ CE/ FCC | Model Number: | GYTA53 |
Detail Information |
|||
Fiber Type: | G652D | Color: | Black |
---|---|---|---|
Outsheath: | PE | Fiber Count: | 2-288cores |
Product Name: | Stranded Loose Tube Armored Cable | Length: | 2km Or Customized Length |
Installation: | Aerial & Duct | Oem: | Available |
Application: | Telecommunication | Type: | Singlemode &Multimode |
Name: | DJDA Outdoor Fiber Optic Cable | Jacket: | Black Double Jacket |
Highlight: | GYTA53 Fiber Optic Cable,250µm Fiber Optic Cable |
Product Description
Manufactory Supply 36 core GYTA53 Single mode fiber optic cable outdoor fibre cable

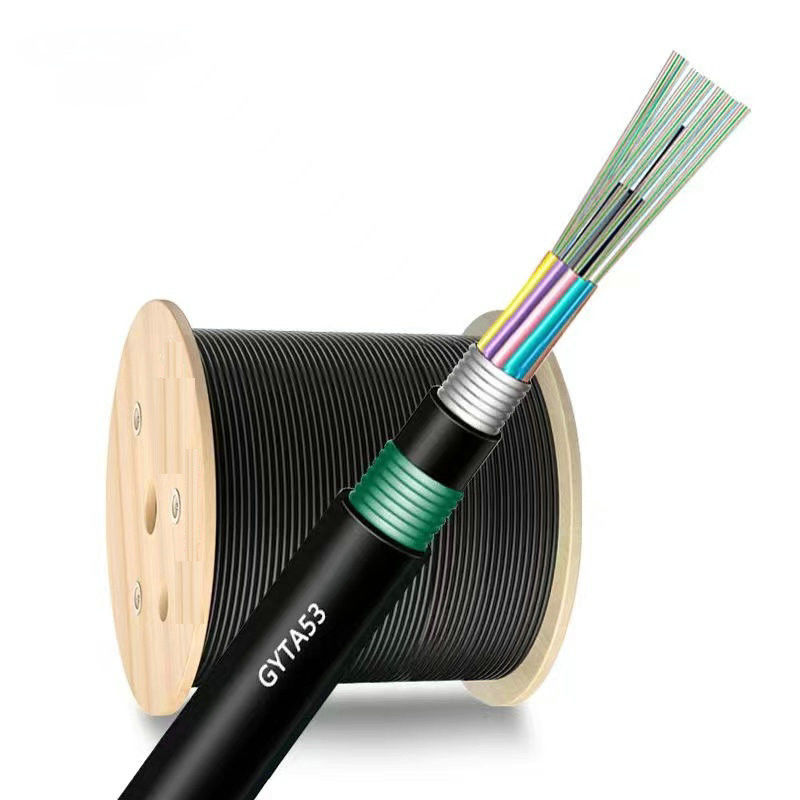

Aluminum Armored Directly Buired Fiber Optic Cable GYTA53

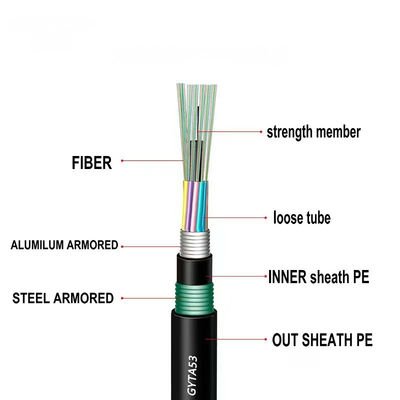

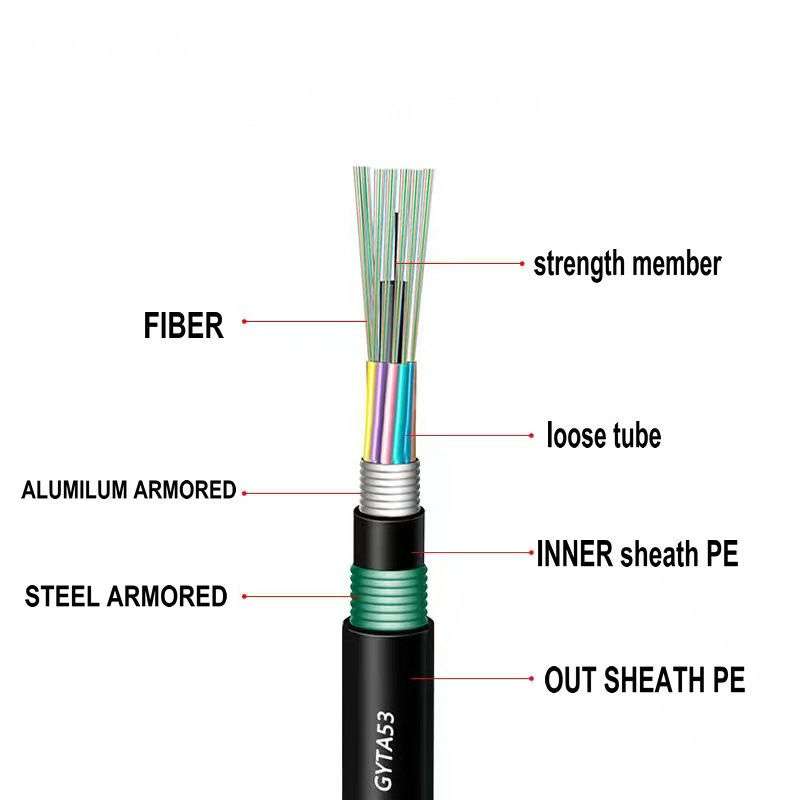

The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Suitable for directly buired laying method
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count |
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Allowable Tensile Load
(N) |
Allowable Crush Resistance
(N/100mm) |
||
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
2~30
|
13.2
|
162
|
3000
|
1000
|
3000
|
1000
|
32~48
|
13.8
|
175
|
3000
|
1000
|
3000
|
1000
|
50~72
|
14.6
|
205
|
3000
|
1000
|
3000
|
1000
|
74~96
|
16.0
|
230
|
3000
|
1000
|
3000
|
1000
|
98~144
|
17.6
|
285
|
3000
|
1000
|
3000
|
1000
|
>144
|
Avaliable upon customer's request
|
Cable type | Drum | ||||
Height (mm) |
Width (mm) |
Inner diameter (mm) |
Length (km) |
Drum type | |
GYTA53-12 | 950 | 760 | 400 | 2 | Wooden drum |
GYTA53-24 | 950 | 760 | 400 | 2 | Wooden drum |
GYTA53-48 | 1100 | 760 | 500 | 2 | Wooden drum |
GYTA53-96 | 1200 | 760 | 500 | 2 | Wooden drum |

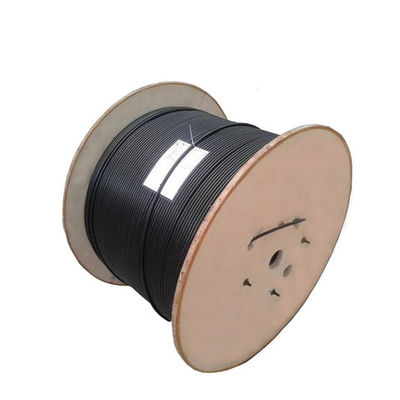

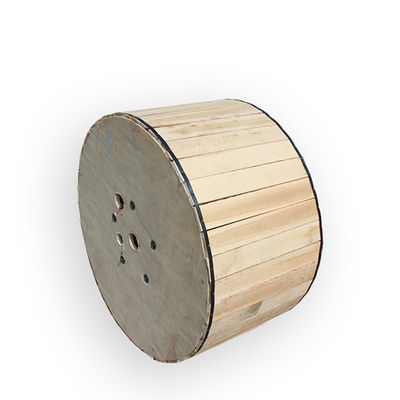

Packing
1/2/3/4km or customized length export wooden drum
