Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | GYXTW |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | Aerial | Number Of Conductors: | ≥ 10 |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40 ~ +60 C |
| High Light: | GYXTW 12 Core Fiber Optic Cable,G652D Fiber Optic Cable,Loose Tube Armored Fiber Optic Cable |
||
Product Description
|
Name
|
JIQIAN GYXTW Cable
|
|
Fiber
|
2-24 Core
|
|
Material
|
Fiber---G652D
Sheath---PE or customized
|
|
Installation way
|
Aerial
|
|
Package
|
Wooden accessory
|
|
Delivery
|
Within 20 days
By sea, careful ship to your address!
|

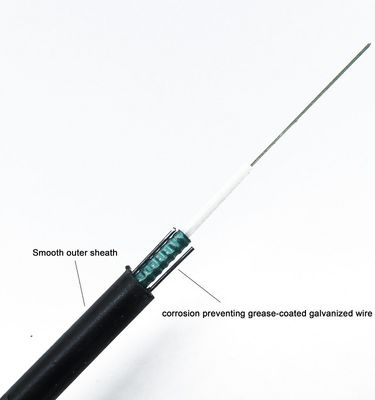

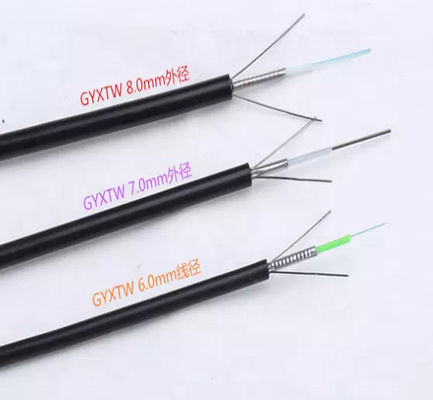

GYTXW 250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.
Feature:
Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Applications
• Outdoor Duct, overhead
Optical Techology:
|
Cable Count |
Out sheath Diameter |
Weight |
Minimum allowable TensileStrength (N) |
Minimum allowable Crush Load (N/100nm) |
Minimum Bending Radius(MM) |
Storage Temperature |
|||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (°C) | |
| 12 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| LCD Delivery | <10000m | <20000m | <50000m | >100000m |
| 25days | 22days | 18days | 10days | |
