Home /Products/FTTH Fiber Optic Drop Cable/G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core

1KM
MOQ
G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 1/2/4/6 Core
Jacket Color: Black,White
Jacket Material: LSZH/PVC/PE
Attenuation(max): ≤0.36dB /KM(1310nm)
Strength Member: Steel Messenger Wire/FRP
Weight: 20kgs/km
Length: 1km
Fiber Type: G657A1/A2/G652D
Application: FTTH,Network
Highlight:

LSZH FTTH Fiber Optic Drop Cable

,

G652D FTTH Fiber Optic Drop Cable

,

G657A FTTH Fiber Optic Drop Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GJYXCH/GJYXFCH
Payment & Shipping Terms
Packaging Details: wooden package or cartoon box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100KM Per day
Product Description

FTTH G652D G657A LSZH single mode 1 2 4 core Outdoor indoor Fiber drop cable



Description

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.

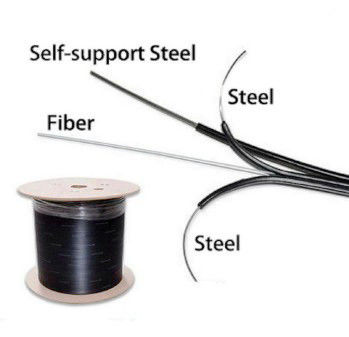

The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.




Features



Self Supporting Construction

Fiber:250µm colorfiber G657A1
Self-supported Member:Steel Wire or Fiberglass reinforced plastic (FRP)

Outer Jacket:UV and Flame resistant LSZH





Application

• Outdoor/Indoor wiring system

• FTTH, terminal system

• Indoor shaft,building wiring



Product detail

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core 0

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core 1

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core 2G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core 3



Fiber Parameters



Type Fiber attenuation(+20℃) OFL Band Width 10G Ethernet link length Minimum bending radius
Condition 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Typical value MAX Typical value MAX
Unit dB/km dB/km dB/km dB/km MHZ.km MHZ.km m mm
G657A1 0.36/0.22 0.5/0.4 --- --- --- --- --- 10
G657A2 0.36/0.22 0.5/0.4 --- --- --- --- --- 7.5
OM3 --- --- 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 --- --- 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30







Technical parameters



Product
Model		 Fiber
Count
(core)		 Cable Diameter(mm) Cable Weight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

 Bending
Radius
Static/Dynamic
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30





Package



Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box



G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core 4



G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core 5



Tag:

Self Supporting FTTH Fiber Optic Drop Cable

GJYXCH fiber drop cable

GJYXCH FTTH Optical Fiber Cable
