Loose Tube ADSS Fiber Cable Dual Jacket Transmission Span 490M 950M

1km
MOQ
Loose Tube ADSS Fiber Cable Dual Jacket Transmission Span 490M 950M
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black,Customized
Length: 2km Or Customized Length
Jacket Material: PE
Name: ADSS Optical Fiber Cable
Strength Member: FRP
Application: Aerial
Operating Temperature: -40 ~ +60 C
Type: ADSS,S-Z Stranded Type
Fiber Type: G652D
Packing: 2-4km/wooden Drum
Highlight:

Loose Tube ADSS Fiber Cable

,

Span 490M ADSS Fiber Cable

,

Dual Jacket ADSS Fiber Cable
Basic Infomation
Place of Origin: Guangzhou
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC
Model Number: ADSS-DJ-32F
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Product Description

ADSS Loose Tube Optical Cables Dual Jacket Transmission Span 490 m – 950 m

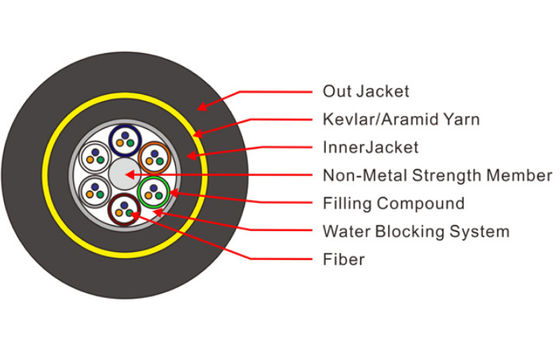

ADSS-48B1-PE-100 Cross Section

Benefits

  • Fiber Count up to 216f
  • The dry water blocking materials can easily be removed without the use of cable cleaning solvents, yielding significant labor cost savings
  • Suitable for all types of aerial lines
  • Rapid deployment
  • Installs on live power lines
  • Available for long, medium and short spans

Fiber Types

  • G.651 multi-mode fiber
  • G.652D single-mode fiber
  • G.655 NZDS fiber for DWDM applications

Full range of protections

  • Water Blocked

Full range of applications

  • Outdoor
  • Aerial

Optional protections

  • Track resistant



Cable structure

 product name ADSS-48B1-PE-100

Center  strengthen core FRP

 2.0mm

Loose tube (filling gel)

 2.2±0.1mm

Outsheath thickness PE

 1.8±0.2mm

Cable diameter

 10.0±0.3mm

cable weight

 85±10%kg/km

Loose tube(pcs)

 4

Each tube contains fibers

 12cores



Loose tube color

Blue,Orange,Green,Brown,





Optical fiber color

Blue,Orange,Green,Brown,Gray,Natural,

Red,Black, Yellow,Purple,Pink,Aqua

Loose Tube ADSS Fiber Cable Dual Jacket Transmission Span 490M 950M















Specification

Fiber cores 32F
Span (Meters) 100 M
Aramid quality International A level
Jacket material PE
Jacket thickness 1.8 mm
Wind Speed (m/s) <30
Cable outer diameter OD 9.8 ±0.5 mm
Cable weight 85 kg/km
Length/drum 5km
5km/drum gross weight 460kg
Tensile Strength(N/100mm) 2200
Min Bending Radius(mm) Static 15D
  Dynamic 25D







Optical Cores Characteristics:

  G.652D 50/125μm 62.5/125μm OM3-300
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth(Class A) @850nm   ≥500 MHz·km ≥600 MHz·km ≥600 MHz·km
@1300nm   ≥1000 MHz·km ≥1000 MHz·km ≥1000 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm





Dimensions of Cable Constructions

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 82
6 1+6 6 2.0±0.1 2.0/2.0 1.6 9.8±0.2 82
8 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 82
12 1+6 6 2.1±0.1 2.0/2.0 1.6 9.8±0.2 82
24 1+6 6 2.1±0.1 2.0/2.0 1.6 9.8±0.2 85
36 1+6 12 2.2±0.1 2.0/2.0 1.6 10.0±0.2 85
48 1+6 12 2.2±0.1 2.0/2.0 1.6 10.0±0.2 88
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.5±0.3 98
96 1+8 12 2.2±0.1 2.0/3.4 1.7 11.8±0.3 123
144 1+12 12 2.2±0.1 3.0/7.2 1.7 15.2±0.3 175

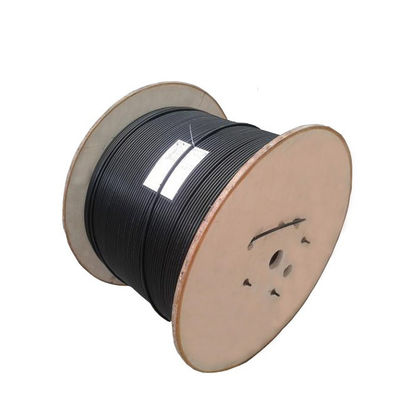

Package Detail

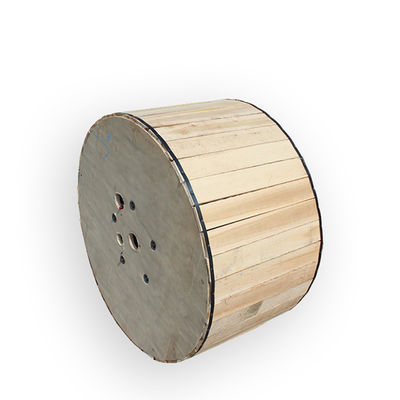

Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Loose Tube ADSS Fiber Cable Dual Jacket Transmission Span 490M 950M





Shipping:

By sea/by air or express delivery,it depends on the order quantity



Lead time:

Quantity(km) 1-300 Above 300
Earliest time(day) 7-10 Negotiable
