Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Type: G652D

Oem: Available

Application: Aerial

Number Of Conductors: 12 Core

Structure: Stranded Loose Tube

Operating Temperature: -40 ~ +60 C

Central Strength Member: FRP

Jacket: HDPE

Highlight:

ADSS Drop Fiber Optic Cable

FTTH Drop Fiber Optic Cable

12 Core Drop Fiber Optic Cable

Basic Infomation

Place of Origin: CHINA

Brand Name: jiqian

Certification: ISO

Model Number: ASU

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 2-4day

Payment Terms: Western Union, T/T, L/C

Supply Ability: 100km per 2 day

Gallery

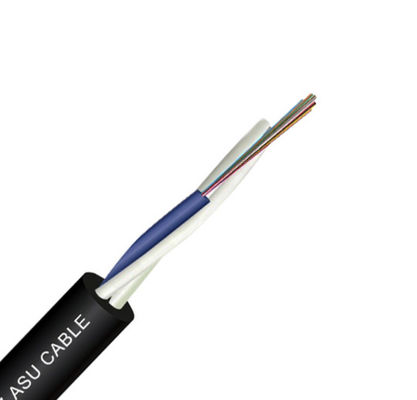

FTTH 12 Core ADSS Drop Fiber Optic Cable Stranded Loose Tube

Product Description

FTTH outdoor 12 core ADSS ASU drop fibra optica cable 12 hilos

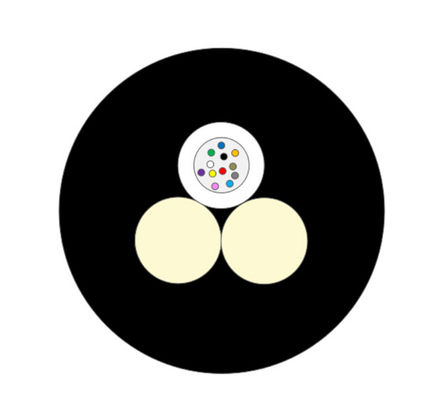

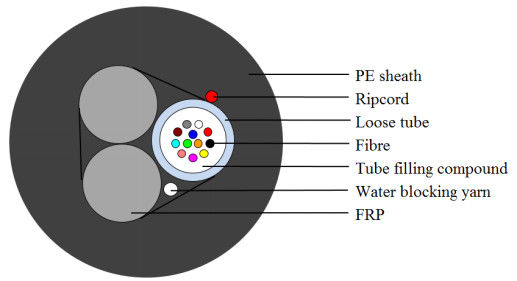

ASU cable is one loose tube stranded. Fibers, 250um , are positioned into a loose tube made of high modulus plastics. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

ASU OPTICAL FIBER CABLES

1.4-12 cores colored fiber

2.Non-metallic self-supporting member

3.Good-performance sheath materials

FEATURES

1.Compact structure

2.Able to be terminated onsite - Not to scale-

3.All dielectric structure, resistant to electromagnetic interference

4.Easy for stripping, splicing, simplified installation and maintenance

TECHNOLGY DATA:

No. of cable			1-12
Fiber Model			G.652D
Strength Member	Material		FRP
	Diameter(±0.05)mm		1.8
Loose Tube	Material		PBT
	Diameter(±0.06)mm		1.8
	Thickness(±0.03)mm		0.35
	The Max.Core NO./Tube		12
Outer Sheath	Material		PE
Cable Diameter(±0.2)mm			6.7
Cable Weight(±5)kg/km			38
Min. bending radius		Without Tension	10.0×Cable-φ
		Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)		Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
