Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : lillian
Phone Number : 8618122384553
WhatsApp : +8618122384553
| Minimum Order Quantity : | 2km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | ASU Cable/GYFXY |
|
Detail Information |
|||
| Fiber Count: | 2-12core | Type: | Aerial |
|---|---|---|---|
| Span Length: | 80m Or 100m | Fiber Model: | G652D |
| Sheath: | PE | Strength Member: | 2*FRP |
| Sheath Color: | Black | OD: | 7.0mm |
| High Light: | 12 Core adss fiber optic cable,FRP Strength adss fiber optic cable,Dielectric aerial drop cable |
||
Product Description

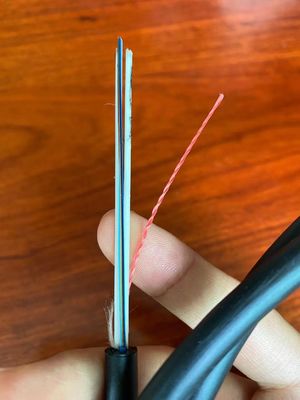

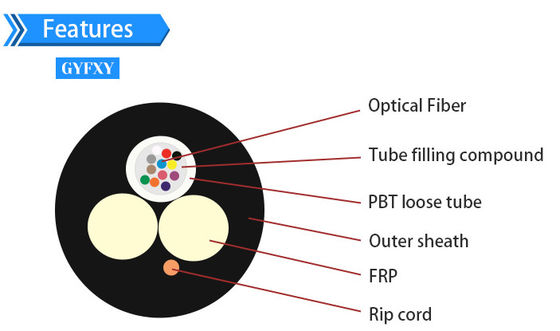

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
Feature
Small Size and Ligth Weight
Two FRP as strength member to provide good tensile performance
Gel Filled or gel free , good waterproof performance
Low price ,high fiber capacity
applicable for short span aerial and duct installation
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical parameter
Cable Core |
Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable Diameter | mm | 7.0mm±0.2 | 0.8±0.2 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80,1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
