YOFC LSZH Sheath FTTH Fiber Optic Drop Cable for Communication
Contact Person : lillian
Phone Number : 8618122384553
WhatsApp : +8618122384553
| Minimum Order Quantity : | 1KM | Packaging Details : | wooden package or cartoon box |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100KM Per day |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GJYXCH/GJYXFCH |
|
Detail Information |
|||
| Fiber Count: | 1/2/4Core | Jacket Color: | Black,White |
|---|---|---|---|
| Jacket Material: | LSZH/PVC/PE | Strength Member: | Steel Messenger Wire/FRP |
| Weight: | 20kgs/km | Length: | 1km |
| Fiber Type: | G657A1 | Application: | FTTH,Network |
| Cable Diameter: | 1mm Steel Wire 0.45mm Frp | ||
| High Light: | 657A1 ftth drop fiber optic cable,4 core fiber optic drop wire,single mode ftth drop cable |
||
Product Description
single mode outdoor aerial ftth drop cable 1 core 2 core 4core 657A1 flat cable FRP with messenger Fiber Optic Cable
Description

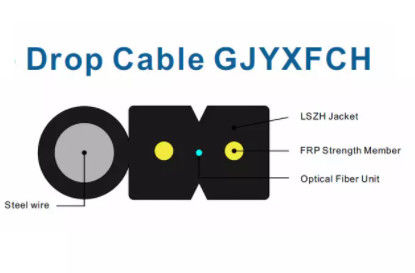

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides. Then, the cable is completed with a black or color LSZH sheath.
Features
Self Supporting Construction
Fiber:250µm colorfiber G657A1
Self-supported Member:Steel Wire or Fiberglass reinforced plastic (FRP)
Outer Jacket:UV and Flame resistant LSZH
Product detail
Application
• Outdoor/Indoor wiring system
• FTTH, terminal system
• Indoor shaft,building wiring
Fiber Parameters
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Technical parameters
| Product Model |
Fiber Count (core) |
Cable Diameter(mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance |
Bending Radius Static/Dynamic |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |

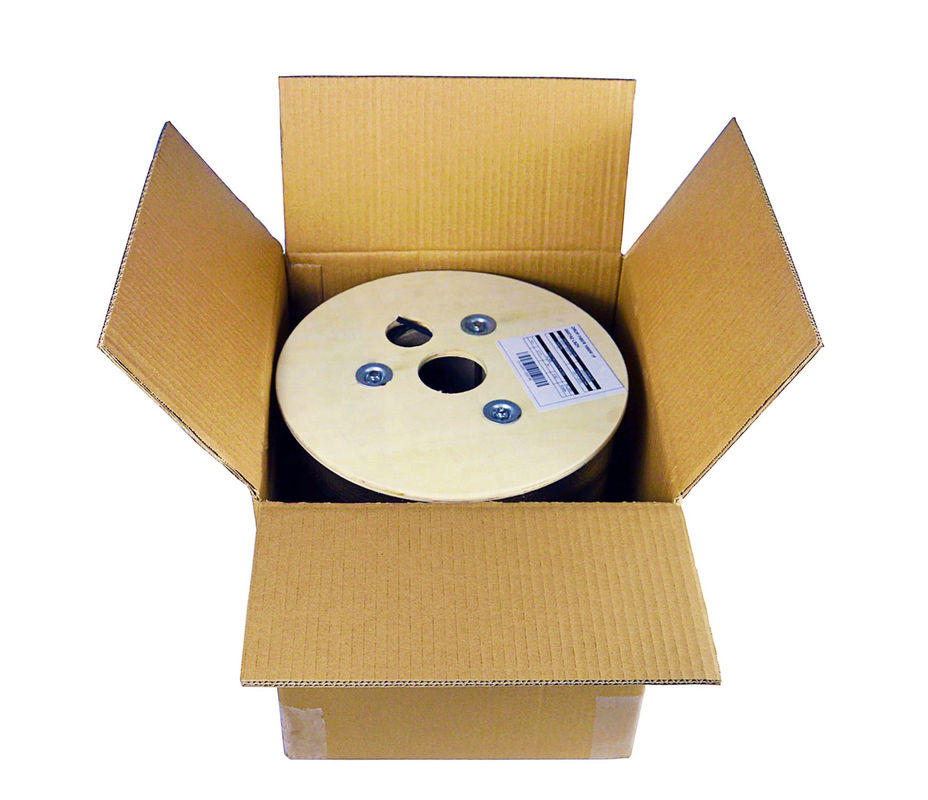

Packaing detail

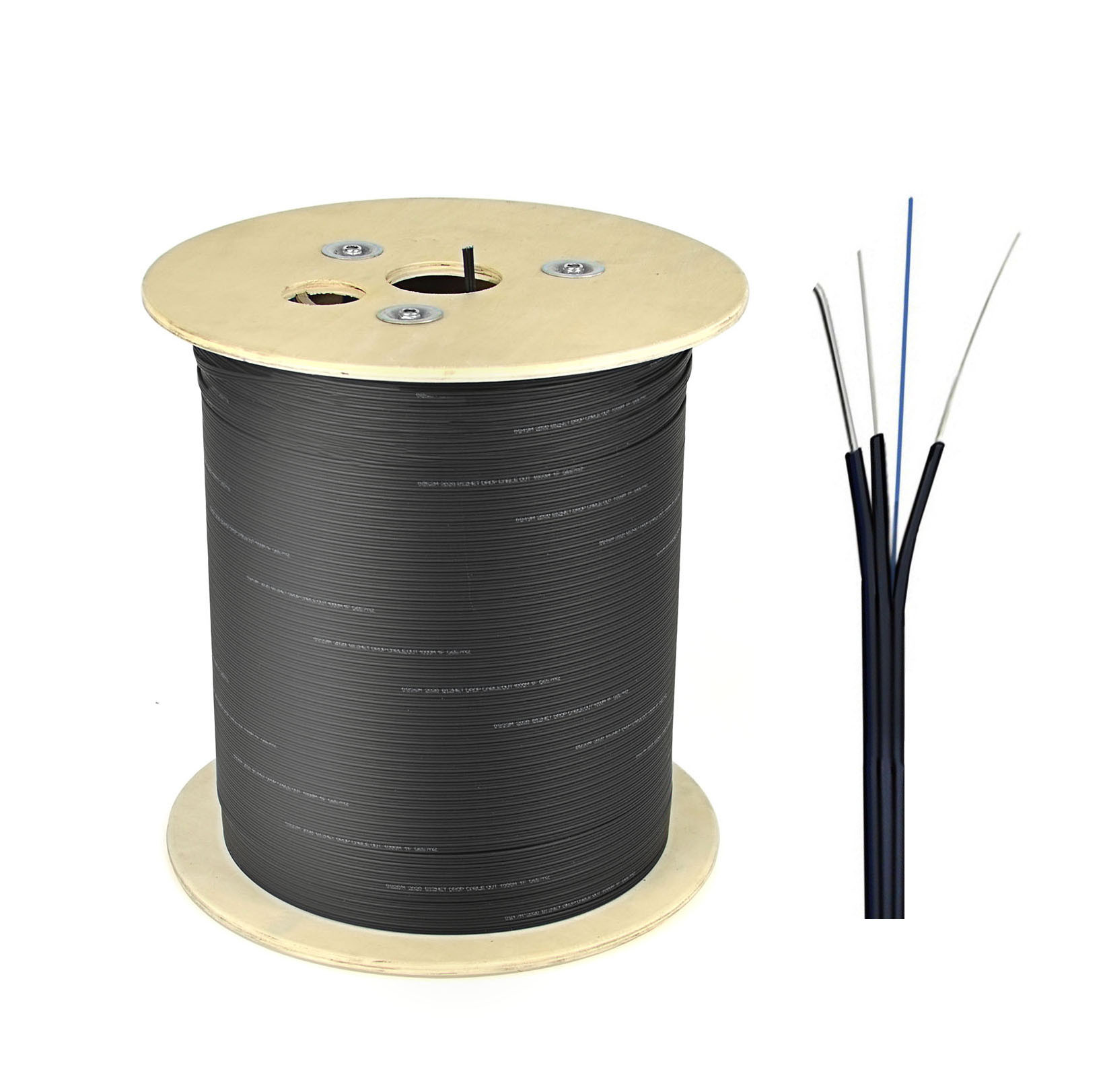

1km/2km per wooden drum,Outside package is Cartoon
1KM:350*350*345MM. 2KM:410*380*415MM
Shipping:By sea/by air or express delivery,it depends on the order quantity.
Lead time:
| Quantity(km) | 1-500 | Above 500 |
| Earliest time(day) | 5-7 | Negotiable |
