Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | GYFTY |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | ≥ 10 | Strength Member: | FRP |
| Laying Mode: | Duct/Aerial | Storage/operating Temperature:: | -40 To +70 °C |
| Application: | Networking | OEM: | Yes |
| Manufacturer: | Yes | Structure: | Stranded Loose Tube |
| Package: | Wooden Drum | ||
| High Light: | 24 Core Aerial Fiber Optic Cable,24 Core GYFTY Fiber Optic Cable,Networking GYFTY Fiber Optic Cable |
||
Product Description
Fiber Optic Cable GYFTY 24 Core G652D Fibre Optic

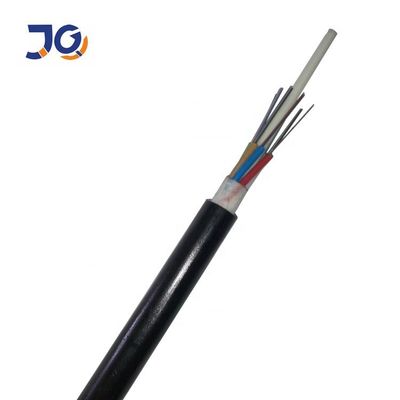

The fibers, 250μm, are positioned in a loose tube which is made of a high modulus plastic. All the tubes are filled with a water- resistent filling compound. We use the FRP(fiber reinforced plastic) as the strength member. The optical cable have a very good mechanical and temperature performance. You don't need to worry about the crush resistance and flexibility during the storage and operating.
Cable Performance
| Item | Parameters | |
| Fiber Count | 48 | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | Blue,Orange,Green,Brown | |
| Filler | Material | PE |
| Color | Black | |
| Central Strength Member | Dimension | 1.6mm±0.05mm |
| Material | FRP | |
| Armoured | Material | NONE |
| Outer jacket | Material | PE |
| Color | Black | |
Fiber parameter
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
