Double Sheath Double Armoured Underground Directly Buried GYTA53 4 8 12 24 48 96 144 Core Fiber Optic Cable
Contact Person : vicky
Phone Number : +8618998347595
WhatsApp : +8618998347595
Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
---|---|---|---|
Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
Supply Ability : | 6000km one month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO9001 ROHS CE FCC | Model Number: | GYTA53 |
Detail Information |
|||
Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
---|---|---|---|
Model Number: | GYTA53 | Laying Mode: | Direct Burial |
Suitable Temperature: | - 40℃~ +60℃ | Central Strength Member: | Metallic Tape |
Number Of Fiber: | 2-288 | Manufacturer: | Yes |
Certification: | ISO9001 ROHS CE FCC | ||
High Light: | Glass Yarn Underground Fiber Optic Cable,Anti Rodent Underground Fiber Optic Cable,FCC metallic tape Underground Cable |
Product Description

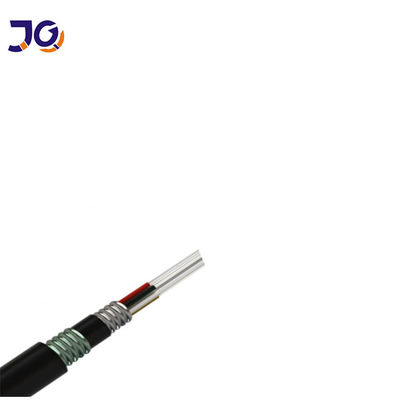

Anti Rodent Glass Yarn Single Mode Optical Fiber Cable 8 12 24 48 Core For Under Ground Use
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Characteristics
Application
1. Direct burial
2. Underground
Cable performance
Item | Parameters | |
Fiber Count | 12/48 | |
Colored coated fiber |
Dimension | 250µm±15µm |
Color |
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
Loose tube |
Dimension | 1.9mm±0.1mm |
Material | PBT | |
Color | Blue,Orange,Green,Brown | |
Filler |
Material | PE |
Color | Black | |
Central Strength Member |
Dimension | 1.4mm±0.2mm |
Material | Phosphating steel wire | |
Armoured |
Material |
Plastic coated steel tape and aluminium tape |
Outer jacket |
Material | PE |
Color | Black |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
