144Cores Single Mode Underground Duct Cable GYFTS

1km
MOQ
144Cores Single Mode Underground Duct Cable GYFTS
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiberhome,as Request
Color: Black
Jacket: PE,MDPE
Strength Member: Steel Wire
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Armored: Steel Tape
Product Name: Single Mode Armoured GYTS 48 Core Fiber Optical Cable
Application: Network
Highlight:

GYFTS underground duct cable

,

144Cores underground duct cable

,

GYFTS Single Mode Duct cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYFTS
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Single Mode Underground Duct Aerial Fiber Optic Cable GYFTS

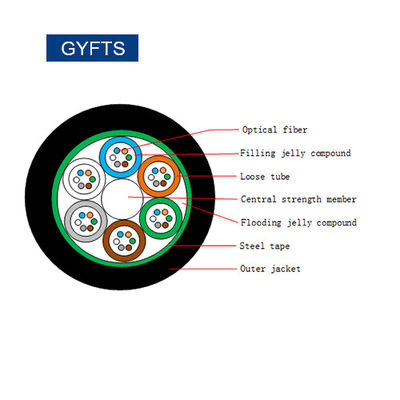

Cable structure

144Cores Single Mode Underground Duct Cable GYFTS 0

Features

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Crush resistance and flexibility
4.PE sheath protects cable from ultraviolet radiation
5.FRP used as the central strength member
6. Loose tube filling compound
7. 100% cable core filling
8. PSP enhancing moisture-proof


Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Parameters

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.4 9.0±0.3 80
6 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
8 1+5 8 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
12 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
24 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 85
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 100
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 105
60 1+5 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 110
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6±0.3 122
96 1+8 12 2.2±0.1 1.6/3.5 1.6 12.0±0.3 160
144 1+12 12 2.2±0.1 2.0/6.4 1.8 15.6±0.3 240
216 1+6+12 12 2.2±0.1 2.2/2.2 1.8 16.0±0.3 270
288 1+9+15 12 2.2±0.1 2.2/4.3 2.0 18.2±0.3 282





Application



Suitable for external application in duct and aerial





Packaing detail:

1km/ 2km/3km/4km per wooden drum



Shipping:

By sea/by air or express delivery,it depends on the order quantity



Lead time:

Quantity(km) 1-300 Above 300
Earliest time(day) 5-7 Negotiable



144Cores Single Mode Underground Duct Cable GYFTS 1

144Cores Single Mode Underground Duct Cable GYFTS 2

144Cores Single Mode Underground Duct Cable GYFTS 3
