4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: FTTH

Detail Information

Fiber Count: 1/2 /4Cores Jacket Material: LSZH
Jacket Color: Black/White Warranty: 15 Years
Fiber Type: G652D,G657A Application: FTTH FTTB FTTX Network
Factory: Yes
High Light:

G657A FTTH Drop Fiber Cable

,

4 Core FTTH Drop Fiber Cable

,

GJYXCH ftth flat drop cable

Product Description

1 2 4 Core Single Mode G657a Ftth Outdoor Drop Optical Fiber Cable GJYXCH

4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 0

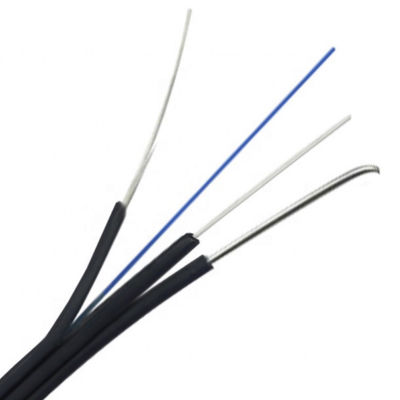

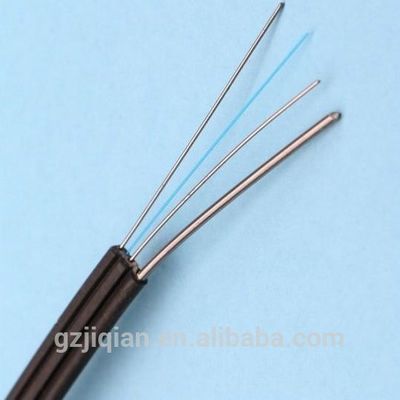

Description:

  • The optical fiber unit is positioned in the center.
  • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
  • Then the cable is completed with a black or white color LSZH sheath.



4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 1

Features:

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance
  • Low smoke, zero halogen and flame retardant sheath
  • Simple structure, light weight and high practicability

4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 2



Application:

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable













4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 3



There are twelve fiber color code.They are A grade fiber.

4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 4





Fiber Characteristic:



Cable code

Fiber

Count

Cable diameter

mm

Cable

weight

Kg/km

Tensilse

Strength

Long/Short term

N

Crush

Resistance

Long/Short term

N

Bedning

Radius

Dynamic/Static

mm

GJXFH-1    1  (2.0±0.2)×(3.0±0.2)     8   30/60    300/1000           15/30
GJXFH-2    2  (2.0±0.2)×(3.0±0.2)     8.5   30/60    300/1000           15/30
GJXFH-4    4  (2.0±0.2)×(3.0±0.2)     10   30/60    300/1000           15/30
GJXH-1    1  (2.0±0.2)×(3.0±0.2)     9   30/60    300/1000           15/30
GJXH-2    2  (2.0±0.2)×(3.0±0.2)     9.5   30/60    300/1000           15/30
GJXH-4    4  (2.0±0.2)×(3.0±0.2)     10   30/60    300/1000

15/30




4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 5

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 6

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



4 Core Single Mode G657A FTTH Drop Fiber Cable GJYXCH 7

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1:Are you a factory or trade company?
We are a factory.



Q2:What is the MOQ?

The MOQ of Fiber Optic cable is 1km.


Q3:Which brand of fiber do you use?
YOFC,Fiberhome,etc


Q4:Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.



Q5:What’s delivery time?
The general delivery time is 3-5 working days after order confirmed. It depends on the order quantity.


Q6.Can you supply customized products and logo?

Yes. We supply OEM service.


Q7.What’s your payment terms?
We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
