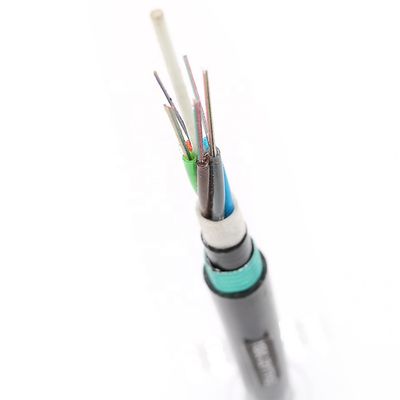

144 Core Underground Communication Cable GYFTA53 1km

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYFTA53

Detail Information

Fiber Count: 2-288 Jacket Material: PE
Jacket Color: Black Lift Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Underground
Factory: Yes Fiber Brand: YOFC/corning
High Light:

1km Underground Communication Cable

,

144 Core Underground Communication Cable

,

144 Core gyfta53 Communication Cable

Product Description

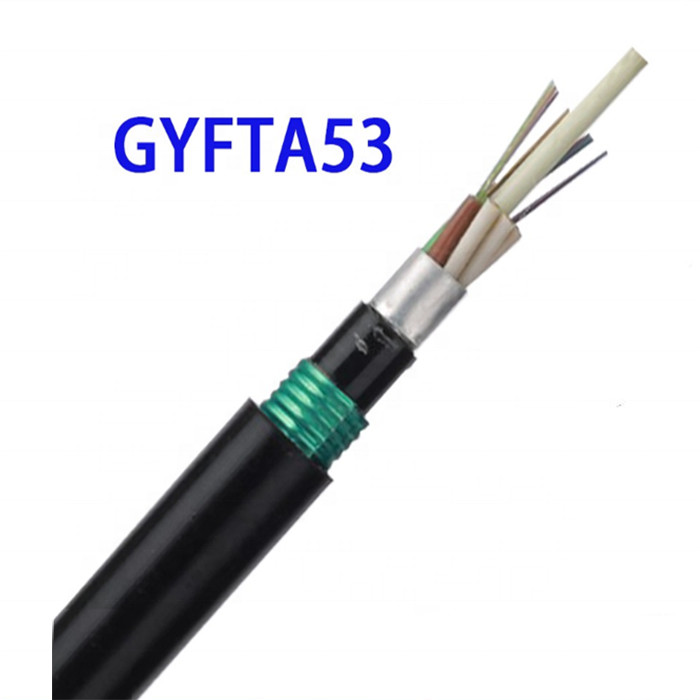

China Factory Price Outdoor 48 96 144 Core Underground Communication Cable Double Sheath GYFTA53 Fiber Optic Cable 1km

144 Core Underground Communication Cable GYFTA53 1km 0


Product Description

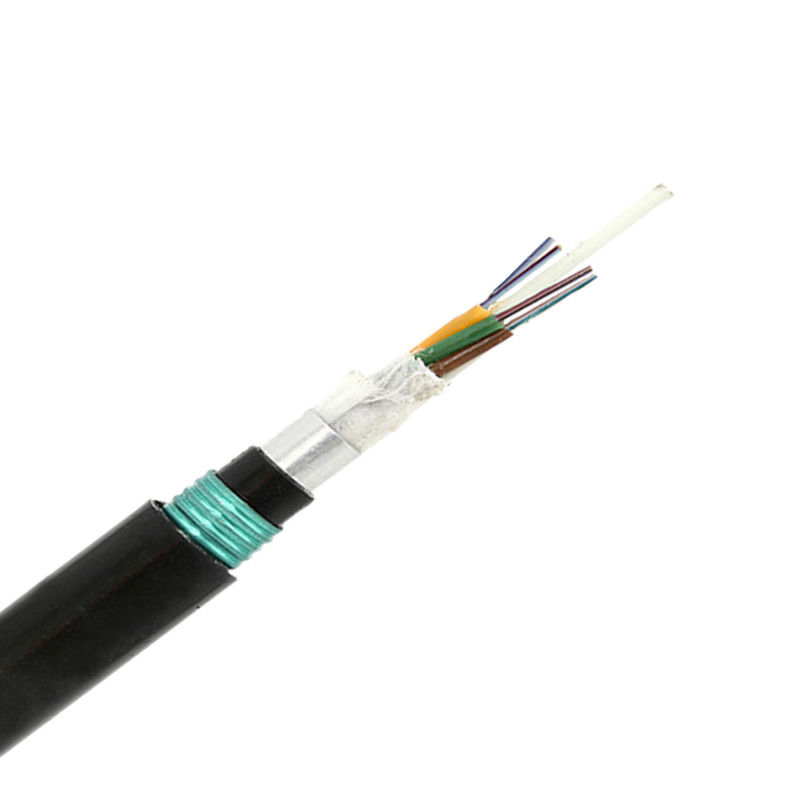

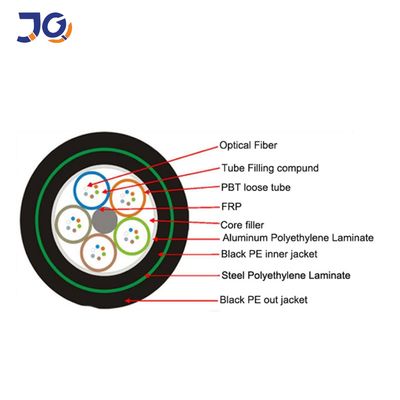

The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP) locates in the center of core as non-metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

An Aluminum Ployethylene Laminate (APL) is applied around the cable core.

Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress.

After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

144 Core Underground Communication Cable GYFTA53 1km 1

Features:

  • Good mechanical and temperature performance;
  • High strength loose tube that is hydrolysis resistant;
  • Special tube filling compound ensure a critical protection of fiber;
  • Special designed compact structure is good at preventing loose tubes from shrinking;
  • PE sheath protects cable from ultraviolet radiation;
  • The following measures are taken to ensure the cable water tight: FRP used as central strength member; 100% cable core filling; loose tube filling compound; APL moisture barrier; PSP enhancing moisture barrier; Water-blocking material.
144 Core Underground Communication Cable GYFTA53 1km 2
Applicable fields:
Direct buried
144 Core Underground Communication Cable GYFTA53 1km 3


Technical Parameters:

Fiber Count Tubes Fillers Cable Weight (kg/km) Bending Radius (mm) Tensile Strength (N) Cruch Resistance (N/100mm)
Static Dynamic Long term Short term Long term Short term
2-6 1 7 255 10D 20D 600 1500 1000 3000
8-12 2 6 255 10D 20D 600 1500 1000 3000
14-18 3 5 255 10D 20D 600 1500 1000 3000
20-24 4 4 255 10D 20D 600 1500 1000 3000
26-30 5 3 255 10D 20D 600 1500 1000 3000
32-36 6 2 255 10D 20D 600 1500 1000 3000
38-42 7 1 255 10D 20D 600 1500 1000 3000
44-48 8 0 255 10D 20D 600 1500 1000 3000
50-60 5 3 320 10D 20D 600 1500 1000 3000
62-72 6 2 320 10D 20D 600 1500 1000 3000
74-84 7 1 320 10D 20D 600 1500 1000 3000
86-96 8 0 320 10D 20D 600 1500 1000 3000
98-108 9 1 380 10D 20D 600 1500 1000 3000
110-120 10 0 380 10D 20D 600 1500 1000 3000
122-132 11 1 415 10D 20D 600 1500 1000 3000
134-144 12 0 415 10D 20D 600 1500 1000 3000



144 Core Underground Communication Cable GYFTA53 1km 4

Optical Parameters:

    50/125µm 62.5/125µm G.652 G.655
Attenuation(+20°C) @850nm ≤3.0dB/km 3.3dB/km
  @1300nm 1.0dB/km 1.0dB/km
  @1310nm     0.36dB/km 0.4dB/km
  @1550nm     0.22dB/km 0.23dB/km
Bandwidth (Class A) @850nm ≥ 500MHz.km ≥ 200MHz.km
  @1300nm ≥ 1000MHz.km ≥ 600MHz.km
Numerical Aperture   0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wavelength λcc       ≤ 1260nm ≤ 1450nm














144 Core Underground Communication Cable GYFTA53 1km 5



There are twelve fiber color code.They are A grade fiber.

144 Core Underground Communication Cable GYFTA53 1km 6








144 Core Underground Communication Cable GYFTA53 1km 7

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



144 Core Underground Communication Cable GYFTA53 1km 8

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



144 Core Underground Communication Cable GYFTA53 1km 9

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
