12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground
12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground
Contact Now

12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYFTY53

Detail Information
Fiber Count: 2-144 Jacket Material: PE
Jacket Color: Black Lift Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Underground
Factory: Yes Fiber Brand: YOFC
OEM: Yes
Highlight:

12 Core Direct Burial Fiber Cable

,

G652B Direct Burial Fiber Cable

,

12 Core Double Sheath Fiber Cable

Product Description

12 24 48 Core Double Sheath Underground Direct Burial Fiber Optic Cable Gyfty53





Product Application

With excellent mechanical and temperature resistant performance,

all-dielectric cables are designed for outdoor communications ,

adopted to outdoor distribution and suitable for direct burial laying method.

Long distance and local area network communication.



12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 0

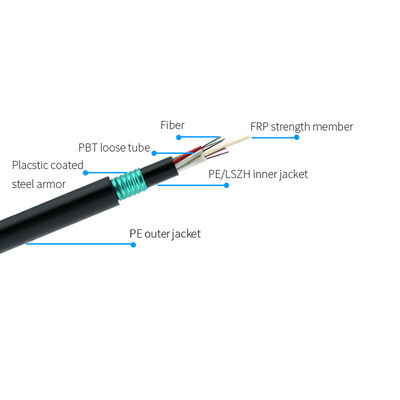

Product Description

1.GYFTY53 uses a Fiber Reinforced Plastic (FRP) as central strength member to provides anti-electromagnetic interference property.

2.The armored structure protects the cable from rat bite and moisture proof.
3.The tubes (and fillers) are stranded around the strength member into a compact and circular core.
4.Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress.
5.A layer of water-blocking material is applied around the cable core to prevent water ingress.

12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 1

Main Features

1.Good mechanical and temperature performance ·

2.High strength loose tube that is hydrolysis resistant ·

3.Special tube filling compound ensure a critical protection of fiber ·

4Loose tube gel-filled construction for superior fiber protection.

5.Steel tape armor to protect cable from mechanical damage.
6.UV and waterproof design.




12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 2







Technical Parameters:

Fiber Count Tubes Fillers Cable Weight (kg/km) Bending Radius (mm) Tensile Strength (N) Cruch Resistance (N/100mm)
Static Dynamic Long term Short term Long term Short term
2-6 1 7 255 10D 20D 600 1500 1000 3000
8-12 2 6 255 10D 20D 600 1500 1000 3000
14-18 3 5 255 10D 20D 600 1500 1000 3000
20-24 4 4 255 10D 20D 600 1500 1000 3000
26-30 5 3 255 10D 20D 600 1500 1000 3000
32-36 6 2 255 10D 20D 600 1500 1000 3000
38-42 7 1 255 10D 20D 600 1500 1000 3000
44-48 8 0 255 10D 20D 600 1500 1000 3000
50-60 5 3 320 10D 20D 600 1500 1000 3000
62-72 6 2 320 10D 20D 600 1500 1000 3000
74-84 7 1 320 10D 20D 600 1500 1000 3000
86-96 8 0 320 10D 20D 600 1500 1000 3000
98-108 9 1 380 10D 20D 600 1500 1000 3000
110-120 10 0 380 10D 20D 600 1500 1000 3000
122-132 11 1 415 10D 20D 600 1500 1000 3000
134-144 12 0 415 10D 20D 600 1500 1000 3000



12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 3

Optical Parameters:

    50/125µm 62.5/125µm G.652 G.655
Attenuation(+20°C) @850nm ≤3.0dB/km ≤3.3dB/km
  @1300nm ≤1.0dB/km ≤ 1.0dB/km
  @1310nm     ≤0.36dB/km ≤0.4dB/km
  @1550nm     ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥ 500MHz.km ≥ 200MHz.km
  @1300nm ≥ 1000MHz.km ≥ 600MHz.km
Numerical Aperture   0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wavelength λcc       ≤ 1260nm ≤ 1450nm














12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 4



There are twelve fiber color code.They are A grade fiber.

12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 5





Related Products

12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 6

12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 7

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 8

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



12 Core Double Sheath G652B Direct Burial Fiber Cable For Underground 9

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
