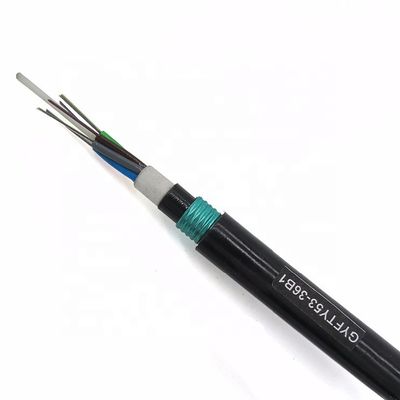

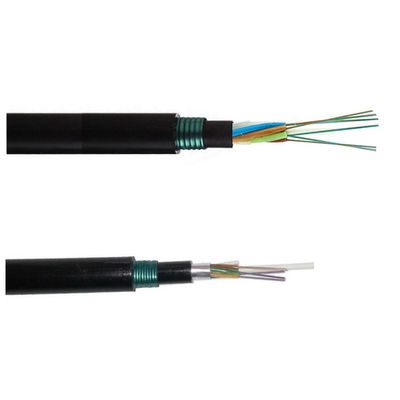

12 24 48 Core Double Sheath Underground Direct Burial Fiber Optic Cable Gyfty53
The Underground Direct Buried Fiber Optic Cable GYFTY53
are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried.
With fiber counts up to 288 and S-Z strand designs.
Product Application
With excellent mechanical and temperature resistant performance,
all-dielectric cables are designed for outdoor communications ,
adopted to outdoor distribution and suitable for direct burial laying method.
Long distance and local area network communication.
Main Features
1.Good mechanical and temperature performance ·
2.High strength loose tube that is hydrolysis resistant ·
3.Special tube filling compound ensure a critical protection of fiber ·
4Loose tube gel-filled construction for superior fiber protection.
5.Steel tape armor to protect cable from mechanical damage.
6.UV and waterproof design.

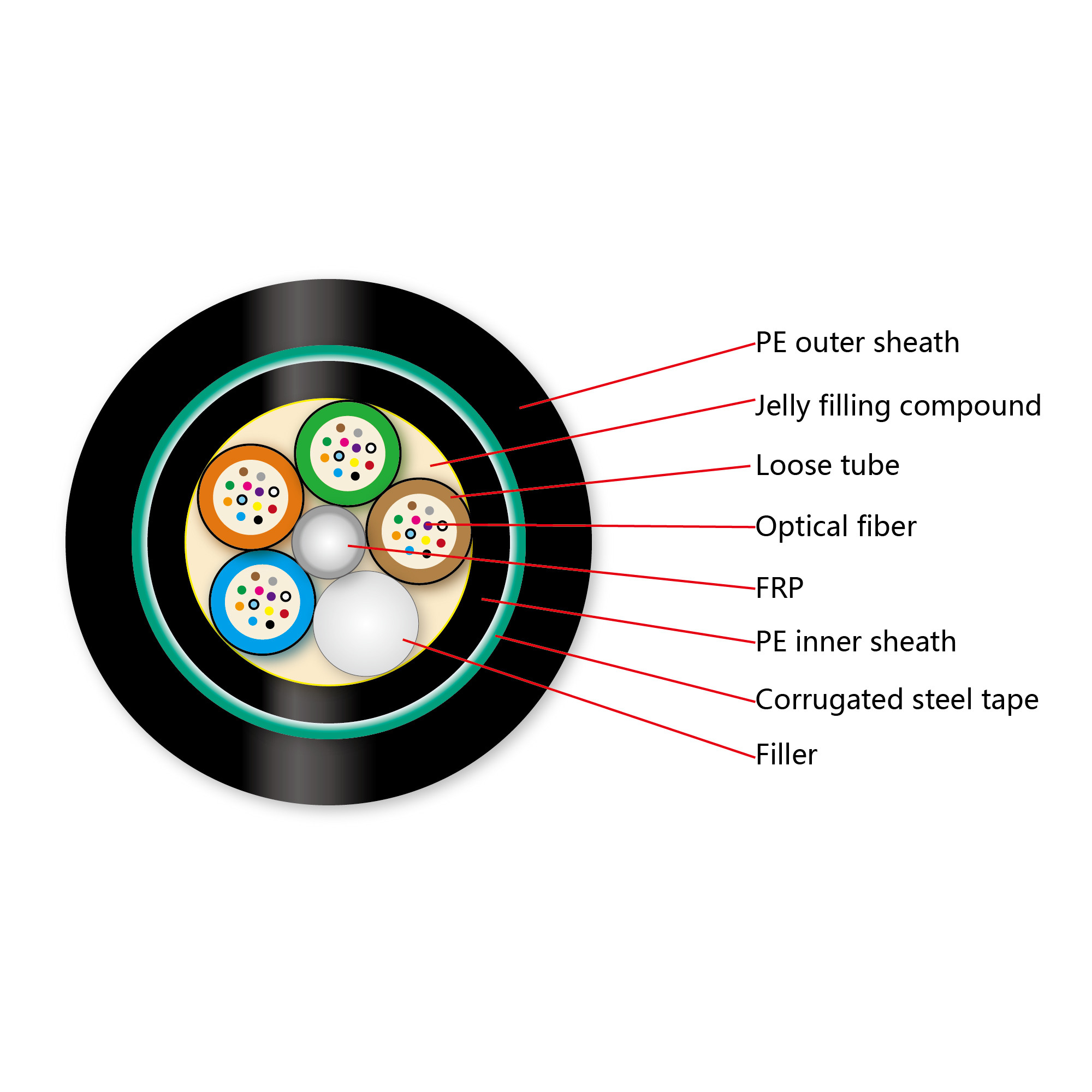

Cable performance:
| Item |
Parameters |
|
Loose tube
|
Material |
PBT |
| Color |
All colors display |
| Filler |
Material |
PE |
| Color |
Black |
| CSM |
Material |
FRP |
| Inner jacket |
Material |
MDPE |
| Color |
Black |
| Outer armoured |
Material |
Plastic coated steel strip |
| Outer jacket |
Material |
MDPE |
| Color |
Black |
| Min. bending radius |
Static |
12.5 times cable diameter |
| Dynamic |
25 times cable diameter |
|
Repeating bending
|
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
|
| Tensile performance |
Short term |
1500N |
| Crush |
Short term |
3000N/100mm |
| Torsion |
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. |
Optical Parameters:
| |
|
50/125µm |
62.5/125µm |
G.652 |
G.655 |
| Attenuation(+20°C) |
@850nm |
≤3.0dB/km |
≤3.3dB/km |
|
|
| |
@1300nm |
≤1.0dB/km |
≤ 1.0dB/km |
|
|
| |
@1310nm |
|
|
≤0.36dB/km |
≤0.4dB/km |
| |
@1550nm |
|
|
≤0.22dB/km |
≤0.23dB/km |
| Bandwidth (Class A) |
@850nm |
≥ 500MHz.km |
≥ 200MHz.km |
|
|
| |
@1300nm |
≥ 1000MHz.km |
≥ 600MHz.km |
|
|
| Numerical Aperture |
|
0.200 ±0.015NA |
0.275 ±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
|
|
|
≤ 1260nm |
≤ 1450nm
|
There are twelve fiber color code.They are A grade fiber.
More Products
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
