Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable
Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable
Contact Now

Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: ADSS

Detail Information
Fiber Count: 2-144 Jacket Material: PE
Jacket Color: Black Lift Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Overhead
Factory: Yes Fiber Brand: YOFC
High Light:

72 Core ADSS Fiber Optic Cable

,

Double PE Jacket ADSS Fiber Optic Cable

,

G652D Double Jacket ADSS Cable

Product Description

Supply ADSS Double Jacket Self-supporting 24 48 72 Core Fiber Optic Cable Price Per Meter 100m Span

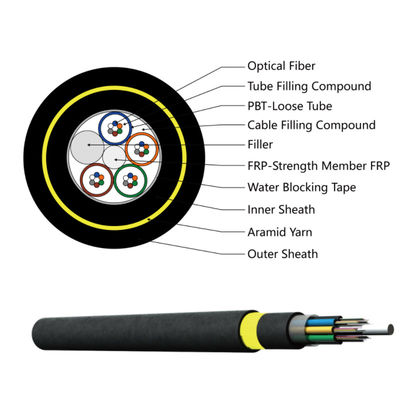

Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 0

Description:

Loose tube design, non-metallic central strength member, SZ stranded core filled with gel, aramid yam assistant strength member, outer PE sheath (Anti-tracking sheath used for voltages above 110kV)

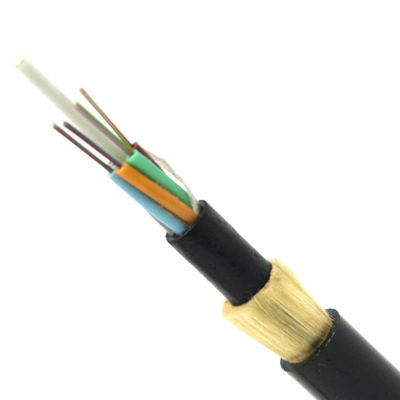

Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 1

Features:

  • ◇low transmission attenuation and dispersion.
    ◇Reasonable design, precise control of excess length of fibers in the loose tube
    and optimum cabling process provides the cable excellent mechanical and
    environmental properties.
    ◇ The SZ-stranded, loose tube design isolated fibers from installation and
    environmental rigors.
    ◇The water blocking gel filled core design provides the cable excellent water-proof
    performance and moisture-resistance, with smaller size.
    ◇Excellent flexibility.
    ◇Due to the non-metallic structure, the cable is light and easy in laying and has a
    very strong ability of anti-electromagnetic disturbance.
    ◇The cable is very suitable for self-supporting installation mode and has a high
    tensile strength along with a powerful harsh-environment surviving capability.

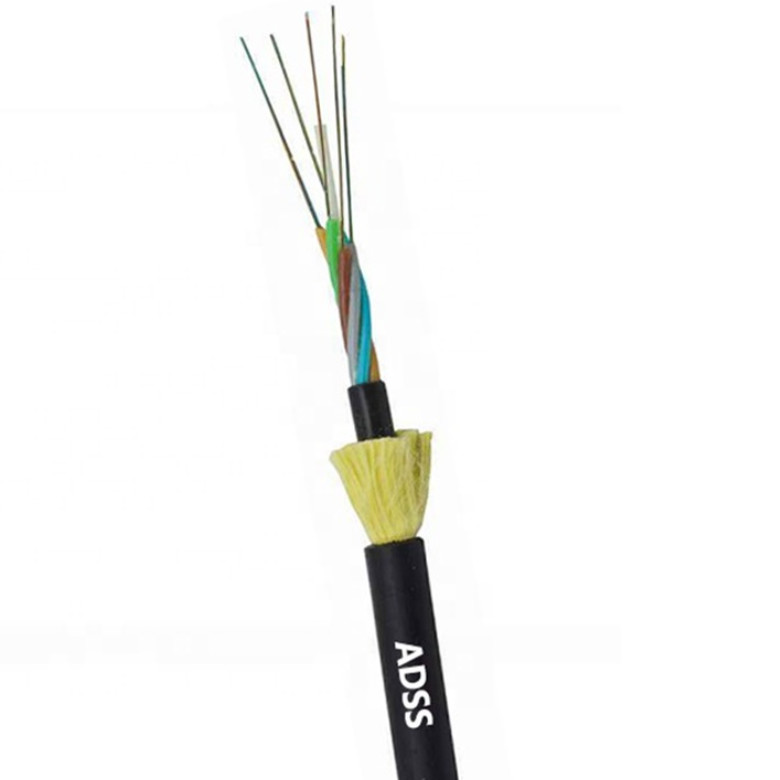

Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 2

Applicable fields:

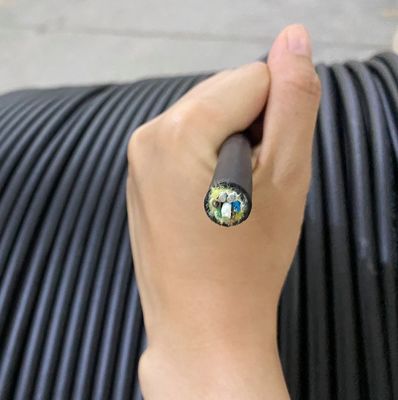

Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 3




Optical Parameters:

    50/125µm 62.5/125µm G.652 G.655
Attenuation(+20°C) @850nm ≤3.0dB/km ≤3.3dB/km
  @1300nm ≤1.0dB/km ≤ 1.0dB/km
  @1310nm     ≤0.36dB/km ≤0.4dB/km
  @1550nm     ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥ 500MHz.km ≥ 200MHz.km
  @1300nm ≥ 1000MHz.km ≥ 600MHz.km
Numerical Aperture   0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wavelength λcc       ≤ 1260nm ≤ 1450nm






Cable structure and parameter

Fiber
count		 Max. fiber
count
per tube		 Total unit
count
(LT + FR)		 Sheath
thickness
(nominal*)		 Overall diameter
(nominal**)		 Weight
(approx.)
mm mm kg/km
24 12 6 (2LT + 4FR) 1.8 11.5 101

* The nominal sheath thickness may vary by ±0.2mm.

** The nominal outer diameter and height may vary by ±0.2mm.





Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 4



There are twelve fiber color code.They are A grade fiber.

Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 5








Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 6

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 7

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable 8

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
