GYTA53 Underground Burial Wire with high fiber counts
GYTA53 Underground Burial Wire with high fiber counts GYTA53 Underground Burial Wire with high fiber counts GYTA53 Underground Burial Wire with high fiber counts GYTA53 Underground Burial Wire with high fiber counts
Contact Now

GYTA53 Underground Burial Wire with high fiber counts

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYTA53

Detail Information
Jacket: PE Color: Black
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 2-144 Cores
Life Time: 25 Years Length: 1km 2km 3km 4km
OEM: Yes
High Light:

GYTA53 underground burial wire

,

PE jacket underground burial wire

,

GYTA53 direct burial power cable

Product Description



Factory Price Underground Duct Direct Buried GYTA53 Armored Outdoor Fiber Optic Cable





GYTA53 Underground Burial Wire with high fiber counts 0

The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and
versatility required for today's most demanding installations, including direct buried. With fiber counts up to 144core.

GYTA53 Underground Burial Wire with high fiber counts 1

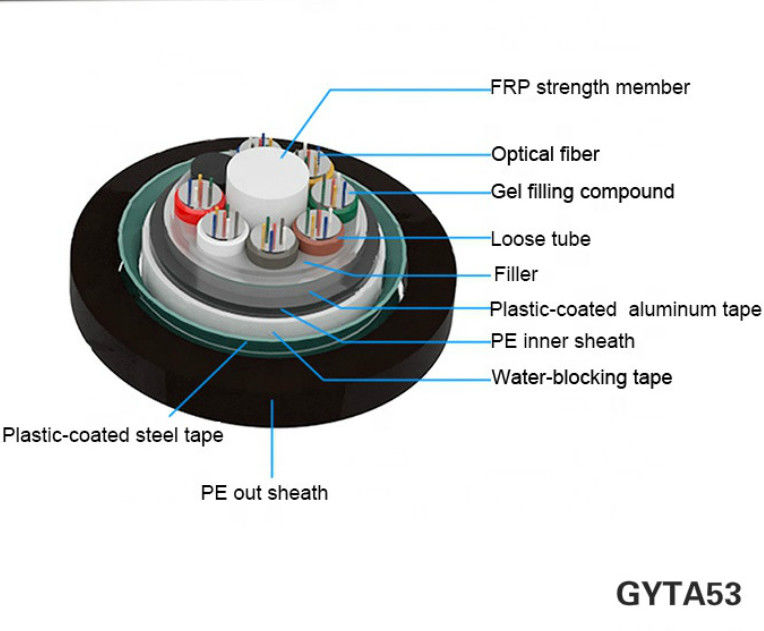

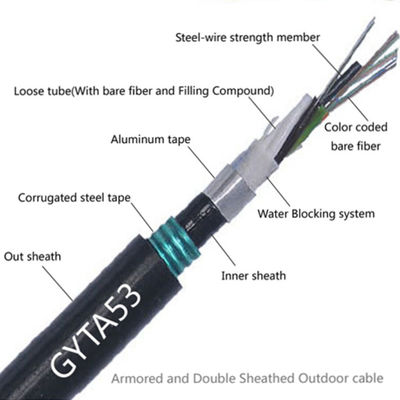

Fiber optic cable GYTA53, 2~288 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.


Product Feature
1.Loose tube gel-filled construction for superiorfiber protection.

2.Double jacket double armored

3.(GYTA53) for rodent protection and direct burial.

4.UV and moisture-resistant design
GYTA53 Underground Burial Wire with high fiber counts 2
Technical Parameters:
Item
Properties and Requirements
Fiber Count
2-288
Min Bending Radius
Dynamic
25✖diameter of cable
Static
12.5✖diameter of cable
Temperature Range
40°C~+60°C
Nominal Weight(kg/km)
Depends on Different Specifications
Laying method
Direct Buried

GYTA53 Underground Burial Wire with high fiber counts 3



Data Sheet
Fiber count
Loose tube diameter
(mm)
Nominal Thickness of outer jacket
(mm)
Cable diameter/
Height
(mm)
Cable weight
(kg/km)
12core
1.9±0.1
1.6
12.0±0.2
145
36core
1.9±0.1
1.6
13.2±0.2
155
48core
1.9±0.1
1.6
13.2±0.2
155





Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

GYTA53 Underground Burial Wire with high fiber counts 4

Delivery
For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
GYTA53 Underground Burial Wire with high fiber counts 5

Facory Picture
GYTA53 Underground Burial Wire with high fiber counts 6
GYTA53 Underground Burial Wire with high fiber counts 7
We are fiber cable manufacturer.We have a factory.
We have rich experience in foreign trade.
Give us a chance to serve you, saving you time and money.
Contact me: +8618122383351

Certificate
GYTA53 Underground Burial Wire with high fiber counts 8
