24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube

1km
MOQ
24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-288 Cores
Fiber Type: Single Mode/multi Mode
Jacket: Double PE,MDPE,HDPE Shealth
Color: Black
Product Name: Anti Rodent Direct Buried Optical Fiber Cable
Model Number: GYFTY63-24B1.3
Structure: Loose Tube
Installation: Duct Or Directly Burry
Strength Member: FRP
Oem: Available
Highlight:

24 Core Underground Fiber Optic Cable

,

multimode Underground Fiber Optic Cable

,

multimode direct burial fiber cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC
Model Number: GYFTY63-24B1.3
Payment & Shipping Terms

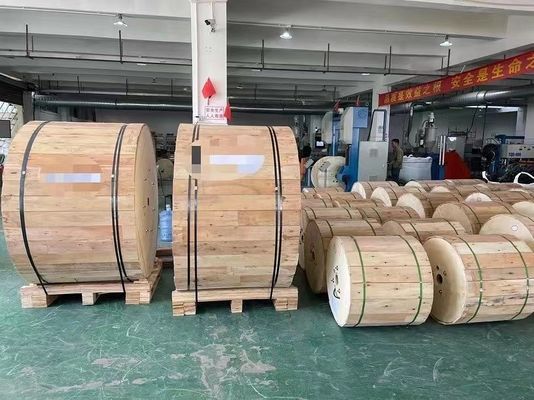

Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30km per day
Product Description

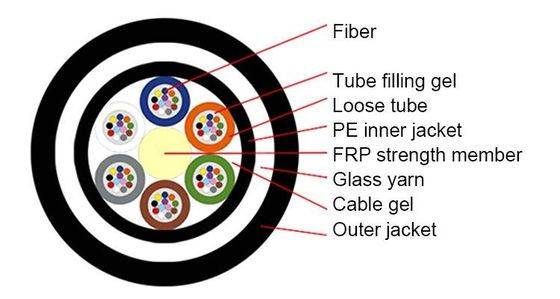

Double Jacket Single mode Anti-rodent 24 Core fiber optic cable GYFTY63



24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube

Features
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* The following measures are taken to ensure the cable watertight:
* Single Fiber Reinforced Plastic as the central strength member
* Loose tube filling compound
* 100% cable core filling
* PSP enhancing moisture-proof
* Water-blocking material

Application

1. Direct burial

2. Underground

3. Backbone Internet



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm















Technical Data



Fiber count



Nominal

Diameter(mm)



Nominal

weight(kg/km)



Max

Fibers per

Tube



No.of

(Tube+fillers)



AllowableTensile Load

(N/100mm)



Allowable Crush

Resistance(N/100mm)



short

Term



long

term



short

Term



long term



2~36



10.2



125



12



6



3000



1000



3000



1000



36~72



15.1



212



12



6



3000



1000



3000



1000



74~96



16.3



246



12



8



3000



1000



3000



1000



    98~120



17.8



288



12



10



3000



1000



3000



1000



   122~144



19.4



336



12



12



3000



1000



3000



1000



>144



Design according to the customer request



24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube24 Core GYFTY63 Underground Fiber Optic Cable multimode Loose tube
