Single Mode 72 Core G652d Fiber Optic Cable Selfsupporting Pe Jacketed

Product Description

Supply ADSS Double Jacket Self-supporting 24 48 72 Core Fiber Optic Cable Price Per Meter 100m Span

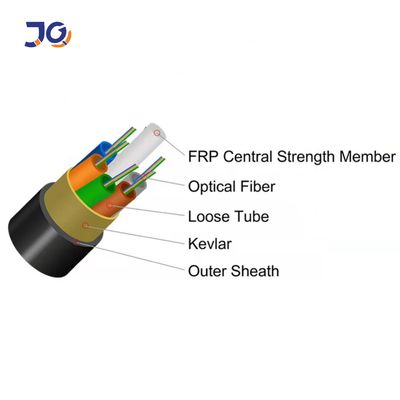

Structure Feature

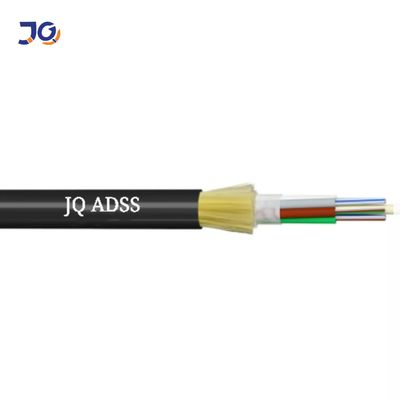

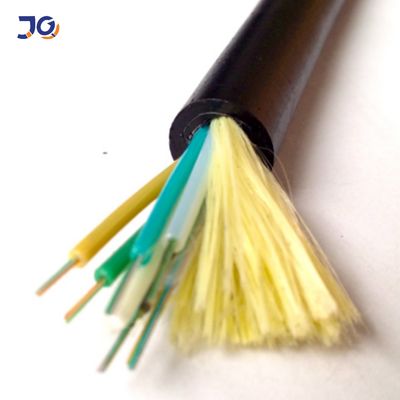

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT (anti-tracking) outer sheath.

Product Feature

1. Can be installed without shutting off the power;

2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;

3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;

4. Large span lengths and the largest span is over 1000m;

5. Good performance of tensile strength and temperature;

6.The design life span is 25 years.

Certificate

Factory Picture

We are fiber cable manufacturer.We have a factory.
We have rich experience in foreign trade.
Give us a chance to server you, saving your time and money.
Contact me!!! Whatsapp & Wechat: +8618122383351
