Features

Specifications

Jacket: PE

Color: Black

Fiber Type: G652D/G657A1/G657A2

Fiber Count: 2-12Cores

Life Time: 25 Years

Length: 1km 2km 3km 4km

OEM: Yes

Factory: Yes

Highlight:

FRP Strength Outdoor Communication Cable

G657A2 Aerial Communication cable

120m aerial communication cable

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Jiqian

Certification: CE/ISO9001

Model Number: ASU

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 days, it depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

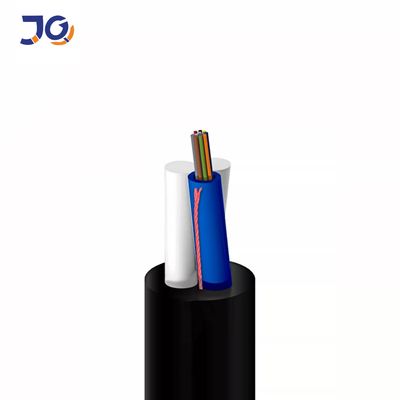

FRP Strength G657A2 Aerial Outdoor Communication Cable 120m Length

Product Description

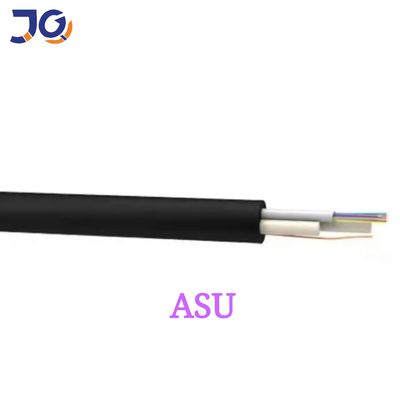

Aerial Outdoor Communication Cable 4 6 12 Core Asu Fiber Optic Cable With 120 Meters Length

The fiber optic cable Characteristics

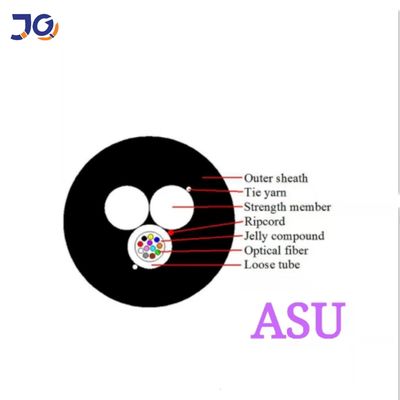

The cable structure is put the 250μm colored fiber in the PBT loose tube, and two FRP as strengthen member,

Feature	·Small Size and Ligth Weight
	·Two FRP as strength member to provide good tensile performance
	Gel Filled or gel free , good waterproof performance
	·Low price ,high fiber capacity
	·applicable for short span aerial and duct installation

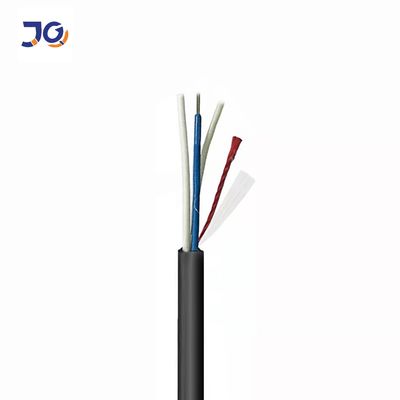

FRP Strength G657A2 Aerial Outdoor Communication Cable 120m Length 2


Technical Parameters:

			No. of cable

			2-12

			Fiber Model

			G.652D

			Strength Member

			Material

			FRP

			Diameter(±0.05)mm

			1.8

			Loose Tube

			Material

			PBT

			Diameter(±0.06)mm

			1.8

			Thickness(±0.03)mm

			0.35

			The Max.Core NO./Tube

			12

			Outer Sheath

			Material

			PE

			Cable Diameter(±0.2)mm

			6.7

			Cable Weight(±5)kg/km

			38

			Min. bending radius

			Without Tension

			10.0×Cable-φ

			Under Maximum Tension

			20.0×Cable-φ

			Temperature range

			(℃)

			Installation

			-20~+60

			Transport&Storage

			-40~+70

			Operation

			-40~+70

Applications

Packaging Details

1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery

For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Facory Picture
We are fiber cable manufacturer.We have a factory.
We privide you factory price.You can save costs, having good quality.

We have rich experience in foreign trade.
Give us a chance to serve you, saving you time and money.
Contact me: +8618122383351
