2 cores 4 cores FTTH fiber optic cable flat cable GJXH/GJXFH with steel wire or FRP
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1KM | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 working days ,it depends on your order | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 60000KM/month |
| Place of Origin: | Guangdong, China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001/CE | Model Number: | FTTH |
|
Detail Information |
|||
| Fiber Count: | 1/2/4 | Lift Time: | 15 Years |
|---|---|---|---|
| Fiber Type: | G652D,G657A | Application: | Aerial |
| Factory: | Yes | Fiber Brand: | YOFC |
| Wave Length: | 1310nm/1550nm | Jacket: | LSZH |
| Color: | Black/ White | ||
| High Light: | G657A Fiber Optic Drop Cable,single mode g657a cable,G657A Lszh Drop Cable |
||
Product Description

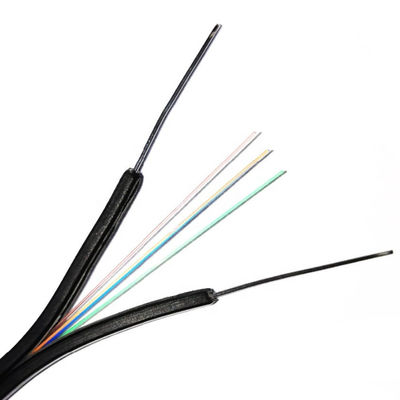

Fiber Optic Drop Cable G652d G657a LSZH Plywood Drum Ftth Drop Cable Single Mode Indoor Fiber Optic Cable
Characteristics:
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3.Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
4.Simple structure, light weight and high practicability
5.Novel flute design, easily strip and splice, simplify the installation and maintenance
6.Low smoke, zero halogen and flame retardant sheath.
Application:
Directly installed into houses Aerial Installation Suitable for Condominiuml Office Installation
Access network, fiber to the home
End users use directly cabling.
Support the internet, CATV and telephone.
Support more network increase service in futureGood mechanical and enviromental characteristic Anti-UV charateristics meet the requirements of relevant standards.
The mechanical charateristics meet the requirements of relevant standards Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission.
Meet various requirements of market and clients
Optical fiber performance:
| Category | Description | Specification |
|
Geometrical characteristics |
Cladding diameter | 125±0.7um |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter |
245±10um(before colored) 250±15um(after colored) |
|
| Fiber curl (Radius) | ≥4m | |
| Core concentricity error | ≤5um | |
|
Optical characteristics |
Mode field diameter at 1310 nm | 8.6-9.5 ± 0.4 um |
| Point discontinuity | ≤ 0.05dB | |
| Attenuation at 1310 nm | ≤ 0.35 dB/km | |
| Attenuation at 1380 nm | ≤ 0.35 dB/km | |
| Attenuation at 1550 nm | ≤ 0.21 dB/km | |
| Attenuation at 1625 nm | ≤ 0.23 dB/km | |
| Dispersion in 1288 – 1339 nm | ≤ 3.5 ps/(nm·km) | |
| Dispersion in 1271 – 1360 nm | ≤ 5.3 ps/(nm·km) | |
| Dispersion at 1550 nm | ≤ 18 ps/(nm·km) | |
| Zero dispersion wavelength | 1300 – 1324 nm | |
| Zero dispersion slope | ≤ 0.092 ps/(nm2·km) | |
| Cable cut-off wavelength | ≤ 1260 nm | |
| Polarization mode dispersion | ≤0.2 ps/√km | |
|
Polarization mode dispersion design link value (M=20, Q=0.01%) |
≤0.1 ps/√km |
|
| Mechanical specification | Proof stress level | ≥100kpsi (0.69 GPa) |
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.

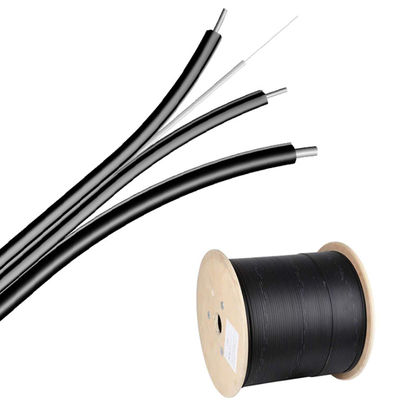

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
