| Minimum Order Quantity : | 1KM | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days, it depends on your quantity | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 60000KM/month |
| Place of Origin: | Guangdong,China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | FTTH |
|
Detail Information |
|||
| Fiber Count: | 1/2/4Cores | Jacket: | LSZH |
|---|---|---|---|
| Color: | Black | Warranty: | 15 Years |
| OEM: | Yes | Fiber Brand: | YOFC |
| Highlight: | YOFC FTTH Fiber Optic Drop Cable,YOFC frp cable,4 Cores frp cable |
||
Product Description
Self-supporting Outdoor/Indoor Steel Messenger Wire Frp G657a Ftth Drop 1 2 4 Core Fiber Optic Cable

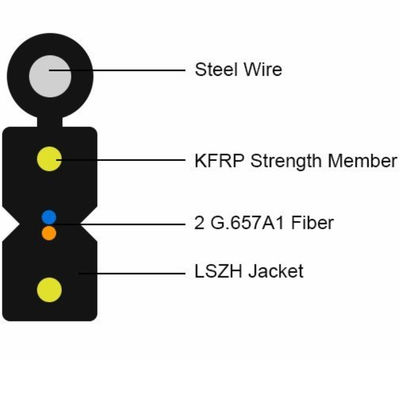

Strcture
Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center,
placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member,
and finally extrusion black LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Applications:
Technical Parameters
| Number of fiber | 1/2/4/6core | |
| strength member | Material | steel wire/FRP/KFRP |
| diameter | 2*0.45/0.5/0.5mm | |
| Self support Messenger wire | Material | steel wire |
| diameter | 1.0mm/7*0.4mm | |
| Outer sheath | material | LSZH |
| diameter | 1.8±0.2mm | |
| Cable size (Height * width) | 2.0(±0.1) mm × 5.0(±0.2)mm | |
| Cable sheath thickness | Max. 0.8mm/Min. 0.4mm | |
| Messenger sheath thickness | 0.5~0.7mm | |
| Cable weight | 1~2core | 19/20KG/KM |
| 4 core | 20/21KG/KM | |
