Product Description

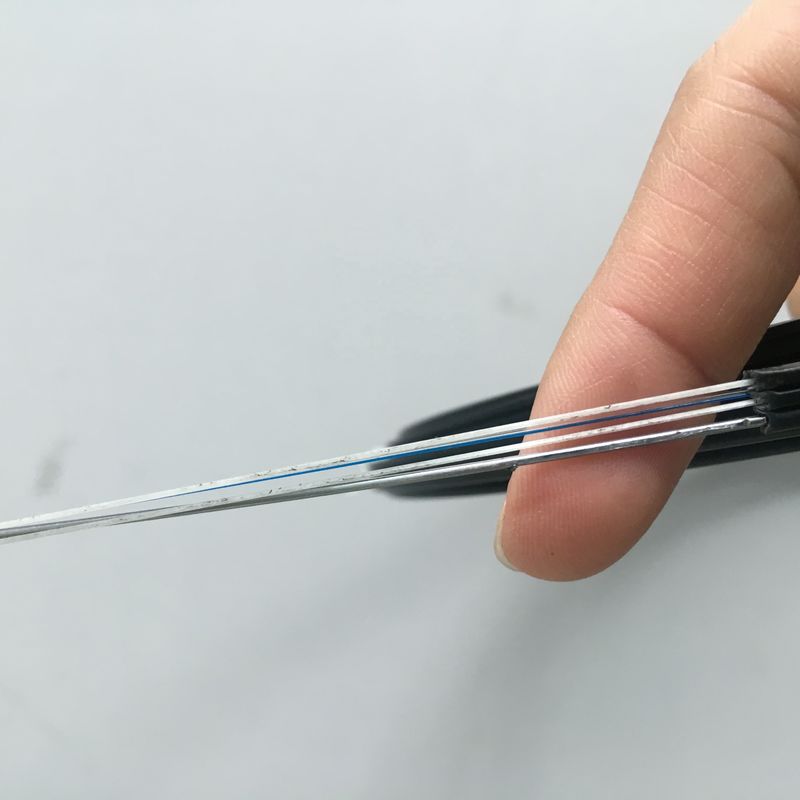

4 Core Single Mode Outdoor G657 G657a G657a1 G657a2 G657 Fiber Optical Cable Drop Cable Ftth
Description
The optical fiber unit is positioned in the centre.
Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides.
A steel wire as the additional strength member is also applied.
Then the cable is completed with a black LSZH sheath.
Optical Characteristics
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
2.Simple structure, light weight and high practicability;
3.Novel flute design, easily strip and splice, simplify the installation and maintenance;
4.Low smoke, zero halogen and flame retardant sheath.
There are twelve fiber color code.They are A grade fiber.
Fiber Characteristic:
| Cable code |
Fiber
Count
|
Cable diameter
mm
|
Cable
weight
Kg/km
|
Tensilse
Strength
Long/Short term
N
|
Crush
Resistance
Long/Short term
N
|
Bedning
Radius
Dynamic/Static
mm
|
| GJXFH-1 |
1 |
(2.0±0.2)×(3.0±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
| GJXFH-2 |
2 |
(2.0±0.2)×(3.0±0.2) |
8.5 |
30/60 |
300/1000 |
15/30 |
| GJXFH-4 |
4 |
(2.0±0.2)×(3.0±0.2) |
10 |
30/60 |
300/1000 |
15/30 |
| GJXH-1 |
1 |
(2.0±0.2)×(3.0±0.2) |
9 |
30/60 |
300/1000 |
15/30 |
| GJXH-2 |
2 |
(2.0±0.2)×(3.0±0.2) |
9.5 |
30/60 |
300/1000 |
15/30 |
| GJXH-4 |
4 |
(2.0±0.2)×(3.0±0.2) |
10 |
30/60 |
300/1000 |
15/30
|
Company Picture
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1:Are you a factory or trade company?
We are a factory.
Q2:What is the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3:Which brand of fiber do you use?
YOFC,Fiberhome,etc
Q4:Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
Q5:What’s delivery time?
The general delivery time is 3-5 working days after order confirmed. It depends on the order quantity.
Q6.Can you supply customized products and logo?
Yes. We supply OEM service.
Q7.What’s your payment terms?
We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
