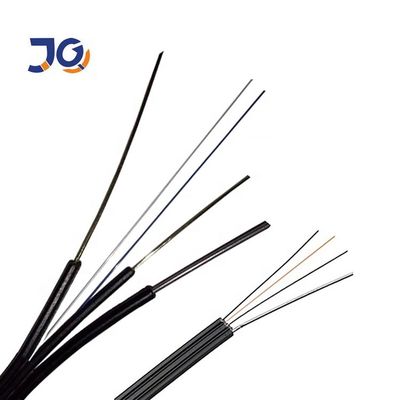

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: FTTH

Detail Information

Color: Black/White Life Time: 15 Years
Fiber Type: G652D,G657A Factory: Yes
Length: 1KM Fiber Brand: YOFC
Jacket: LSZH
High Light:

Self supporting Lszh Drop Cable

,

1F FTTH Drop Cable

,

1F Lszh Drop Cable

Product Description

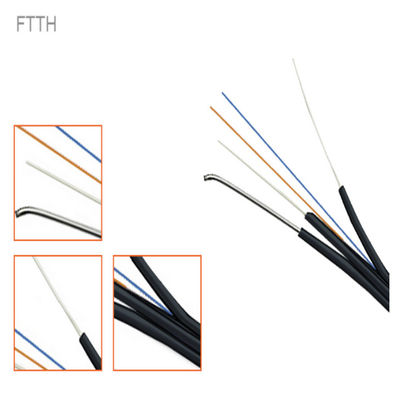

Self-supporting Lszh Drop Cable With Steel Wire Messenger 1f 2f 4f Ftth Fiber Optic Cable

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 0

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 1

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 2

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 3

Description

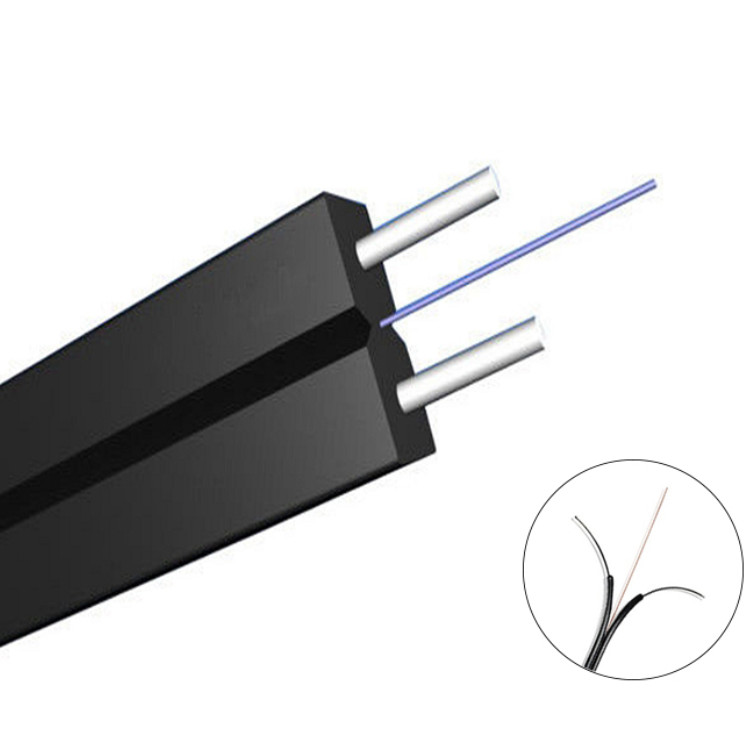

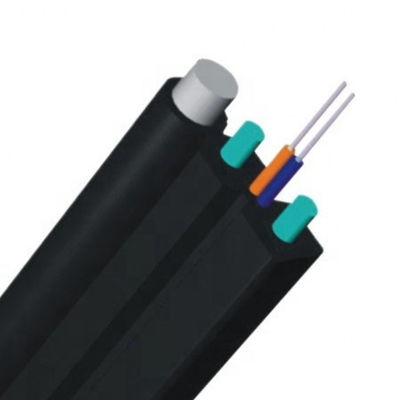

The optical fiber unit is positioned in the centre.

Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides.

A steel wire as the additional strength member is also applied.

Then the cable is completed with a black LSZH sheath.

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 4

Cable Mechanical characteristic

Items Description
Installation Temperature range(℃) -20+60
Operation and transport temperature(℃) -40+70
Min Bending Radius(mm) Long term 15D
Min Bending
Radius(mm)
Short term 30D
Min allowable
Tensile Strength(N)
Long term 400
Min allowable
Tensile Strength(N)
Short term 660
Crush Load (N/100mm) Long term 1000
Crush Load (N/100mm) short term 2200





1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 5



There are twelve fiber color code.They are A grade fiber.

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 6



Fiber Characteristic:



Cable code

Fiber

Count

Cable diameter

mm

Cable

weight

Kg/km

Tensilse

Strength

Long/Short term

N

Crush

Resistance

Long/Short term

N

Bedning

Radius

Dynamic/Static

mm

GJXFH-1    1  (2.0±0.2)×(3.0±0.2)     8   30/60    300/1000           15/30
GJXFH-2    2  (2.0±0.2)×(3.0±0.2)     8.5   30/60    300/1000           15/30
GJXFH-4    4  (2.0±0.2)×(3.0±0.2)     10   30/60    300/1000           15/30
GJXH-1    1  (2.0±0.2)×(3.0±0.2)     9   30/60    300/1000           15/30
GJXH-2    2  (2.0±0.2)×(3.0±0.2)     9.5   30/60    300/1000           15/30
GJXH-4    4  (2.0±0.2)×(3.0±0.2)     10   30/60    300/1000

15/30


Company Picture

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 7

1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 8

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 9

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



1F FTTH Self Supporting Lszh Drop Cable With Steel Wire Messenger 10

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1:Are you a factory or trade company?
We are a factory.



Q2:What is the MOQ?

The MOQ of Fiber Optic cable is 1km.


Q3:Which brand of fiber do you use?
YOFC,Fiberhome,etc


Q4:Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.



Q5:What’s delivery time?
The general delivery time is 3-5 working days after order confirmed. It depends on the order quantity.


Q6.Can you supply customized products and logo?

Yes. We supply OEM service.


Q7.What’s your payment terms?
We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
