Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : vicky
Phone Number : +8618998347595
WhatsApp : +8618998347595
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | ADSS-12B1.3 |
|
Detail Information |
|||
| Fiber Type: | YOFC | Fiber Count: | 4 -288 Core |
|---|---|---|---|
| Color: | Black | Length: | 2km Or Customized Length |
| Jacket Material: | PE Or AT | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP Central Strength Member | Operating Temperature: | -40 ~ +60 C |
| Span: | 100m | Installation: | Aerial |
| High Light: | 100m adss ofc cable,AT Jacket adss ofc cable,AT Jacket adss cable |
||
Product Description
Fibra Optica De 6 Hilos CABLE ADSS 6 12 Y 24 Hilos Fiber Optic Cable 100m

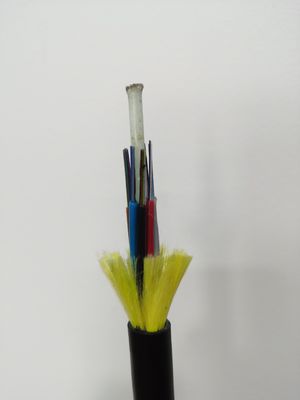

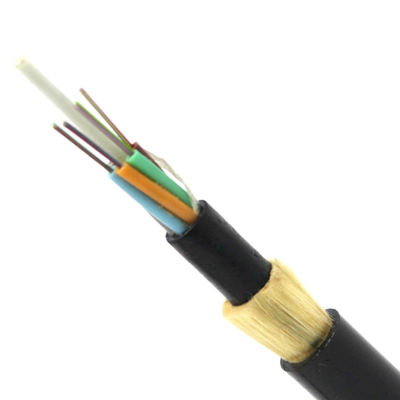

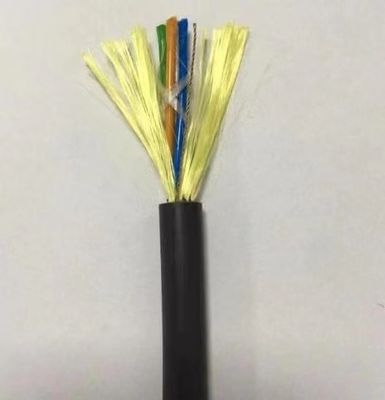

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
4-144 core ADSS Fiber Optic Cable
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter /pad diameter(mm) |
Nominal Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 84 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 93 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 95 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7 | 12.5±0.5 | 122 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.5/6.4 | 1.7 | 15.5±0.5 | 185 |
Package Detail
