G652 Figure 8 16 Core Self Support Fiber Optica Cable

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYTC8S

Detail Information

Fiber Count: 2-288 Core Lift Time: 25 Years
Fiber Type: G652D Application: Overhead
Fiber Brand: YOFC Wave Length: 1310/1550
High Light:

G652 Figure 8 Fibra Optica Cable

,

G652 Self Support Fiber Cable

,

16 Core Figure 8 Fiber Cable

Product Description

Aerial Self Support Mode G652 Figure 8 16 Core Fibra Optica Cable GYTC8S

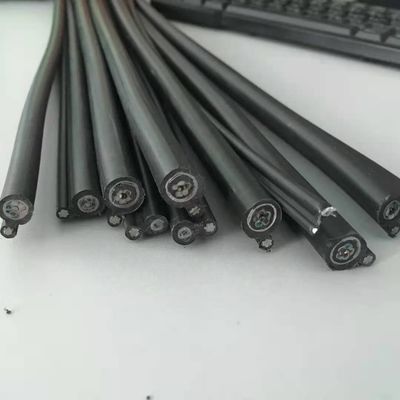

G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 0

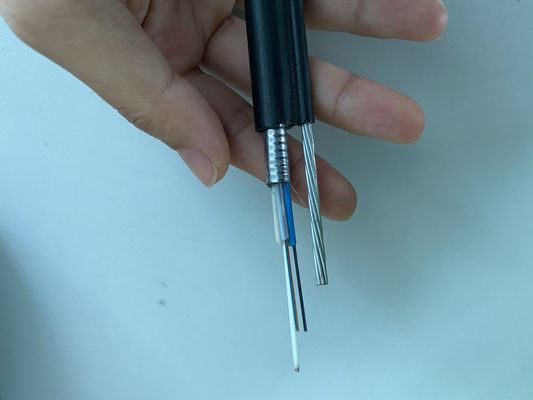

The structure of GYTC8S cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound.

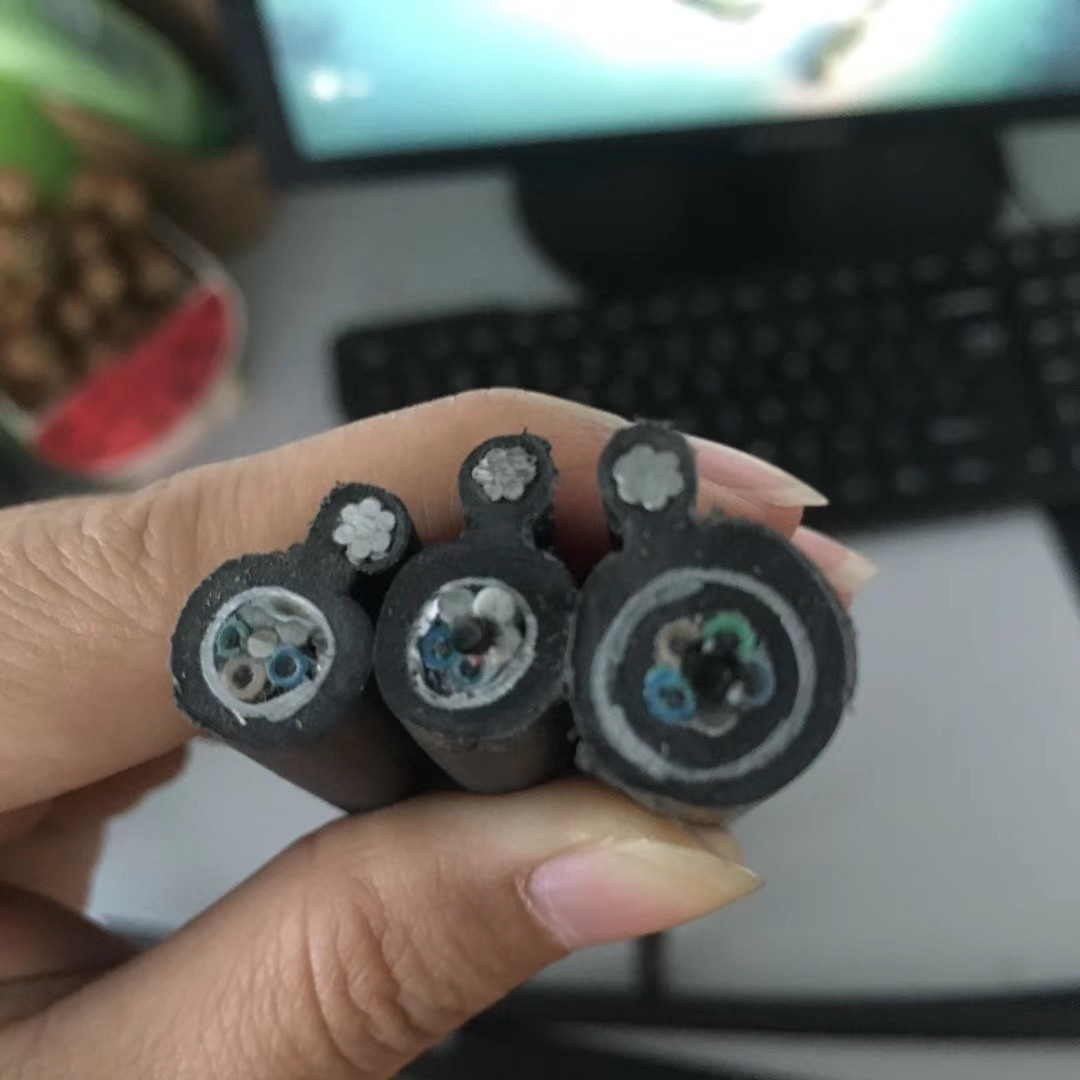

The cable core is wrapped in a plastic-coated steel and integrated with the steel strand into an 8-figure polyethylene sheath.

Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.

G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 1



Product Characteristics

• Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• With good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The loose tube is filled with special gel, which protect the optical fiber

• Take the following measures to ensure the waterproof performance of the optical cable

-Single metallic wire center reinforced core

-Filled with special Water-blocking material in loose tube

-Complete cable core filling

- Moisture-proof layer of plastic-coated steel

G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 2

Cable Performance

Item Parameters
Fiber Count 48
Colored coated fiber Dimension 250µm±15µm
Color Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube Dimension 2.2mm±0.1mm
Material PBT
Color Blue,Orange,Green,Brown
Filler Material PE
Color Black
Central Strength Member Dimension 1.6mm±0.05mm
Material Phosphating steel wire
Armoured Material Plastic coated steel strip
Strength Member Dimension 7*1.0mm
Material Stranding steel wire
Outer jacket Material PE
Color Black

G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 3



There are twelve fiber color code.They are A grade fiber.

G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 4

All products will have been strictly quality checked in house before packing.

All products will be well packed before shipment.



G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 5


G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 6





We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 7

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



G652 Figure 8 16 Core  Self Support  Fiber Optica Cable 8

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



1,Q:Are you a factory or trade company?

A:We are a factory



2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?

A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



5,Q:What’s delivery time?

A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
