Steel Tape Armoured 96 Cores GYTC8S Aerial Fiber Optic Cable

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001 Model Number: GYTC8S

Detail Information

Fiber Count: 2-144 Core Lift Time: 25 Years
Fiber Type: G652D Application: Overhead
Factory: Yes Fiber Brand: YOFC
Length: 1km 2km 3km 4km
High Light:

96 Cores Aerial Fiber Optic Cable

,

GYTC8S steel tape armoured cable

,

96 Cores steel tape armoured cable

Product Description

Aerial Self Supporting Steel Tape 12 24 48 96 Cores G652d G657a Figure8 Cable GYTC8S

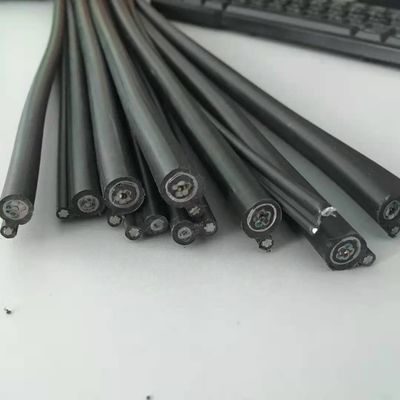

Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 0

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member.

The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor.

All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

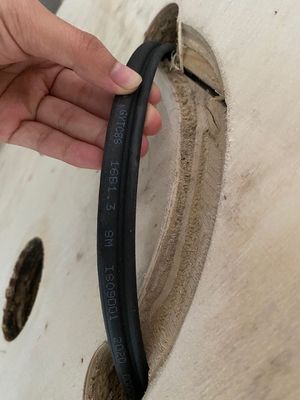

Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 1



Applications

Backbones and Access.
Installed aerially.

Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 2

Mechanical and Environmental Characteristics

Item Unit Specifications
Tension(Long Term) N 2500
Tension(Short Term) N 5000
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min.Bend Radius(Static) mm 10D
Installation Temperature -40~+60
Operating Temperature -40~+70
Storage Temperature -40~+70
Repeating bending Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.

Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 3

Factory
Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 4
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 5
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

Steel Tape Armoured  96 Cores GYTC8S Aerial Fiber Optic Cable 6
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.

7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
