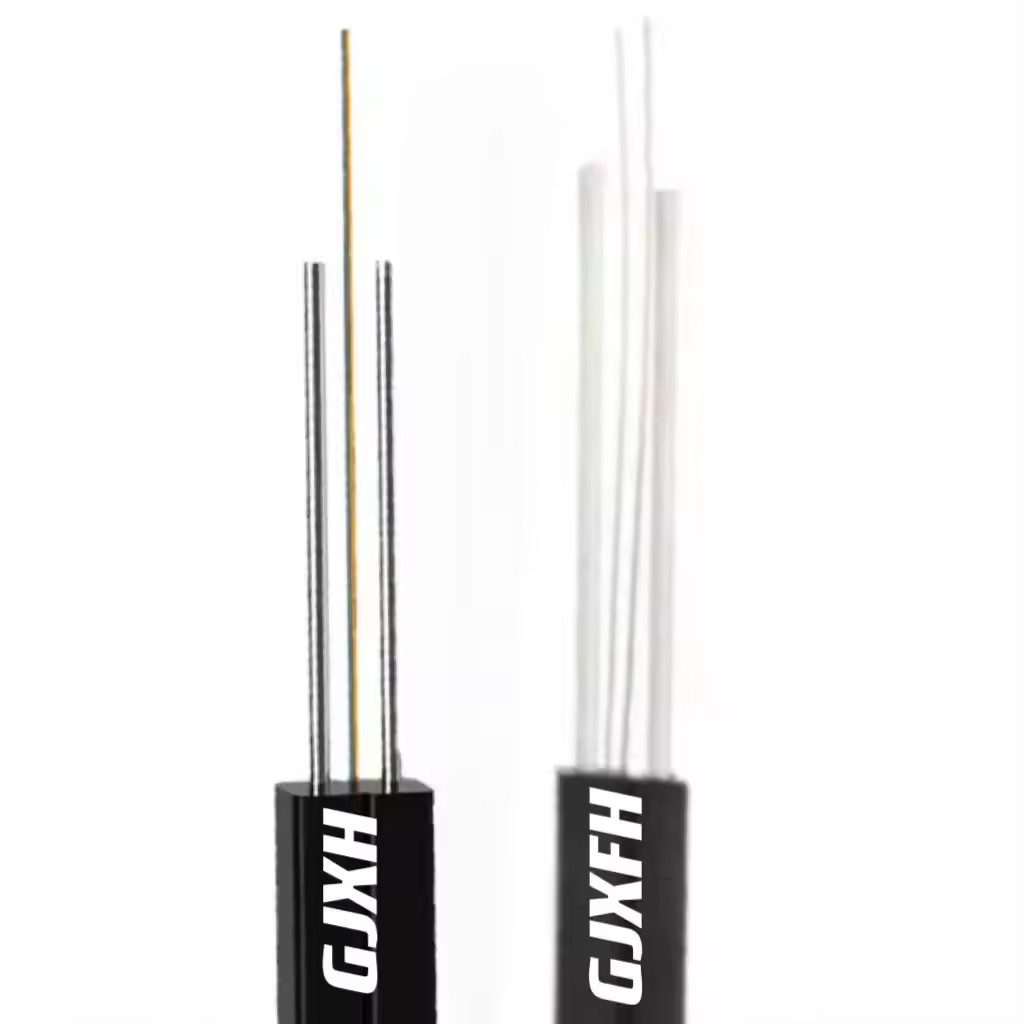

FTTH optical fiber cables G652D G657A fibre 1 2 core single mode GJYXCH drop fiber optic cable
Products Description

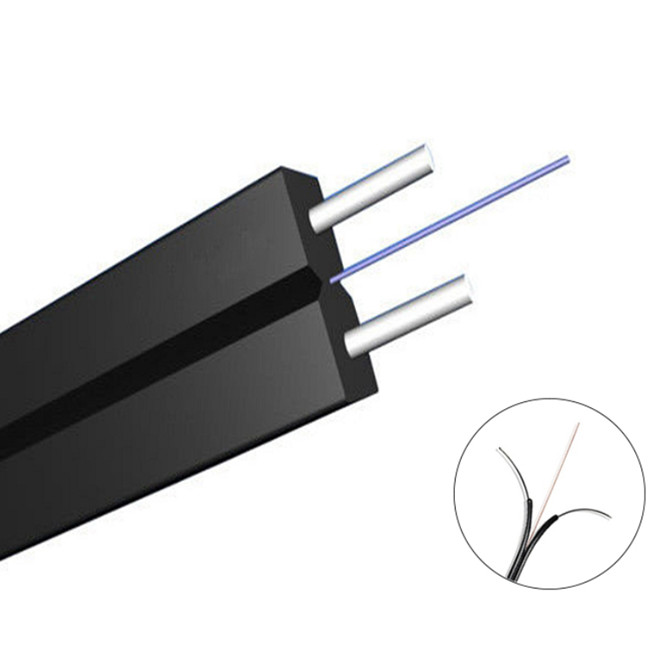

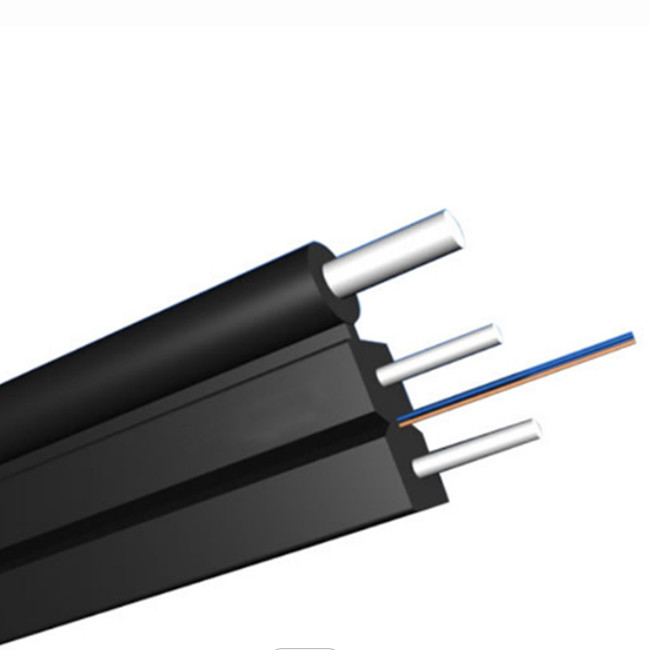

Self-support indoor/outdoor drop cable FTTH fiber optic cable

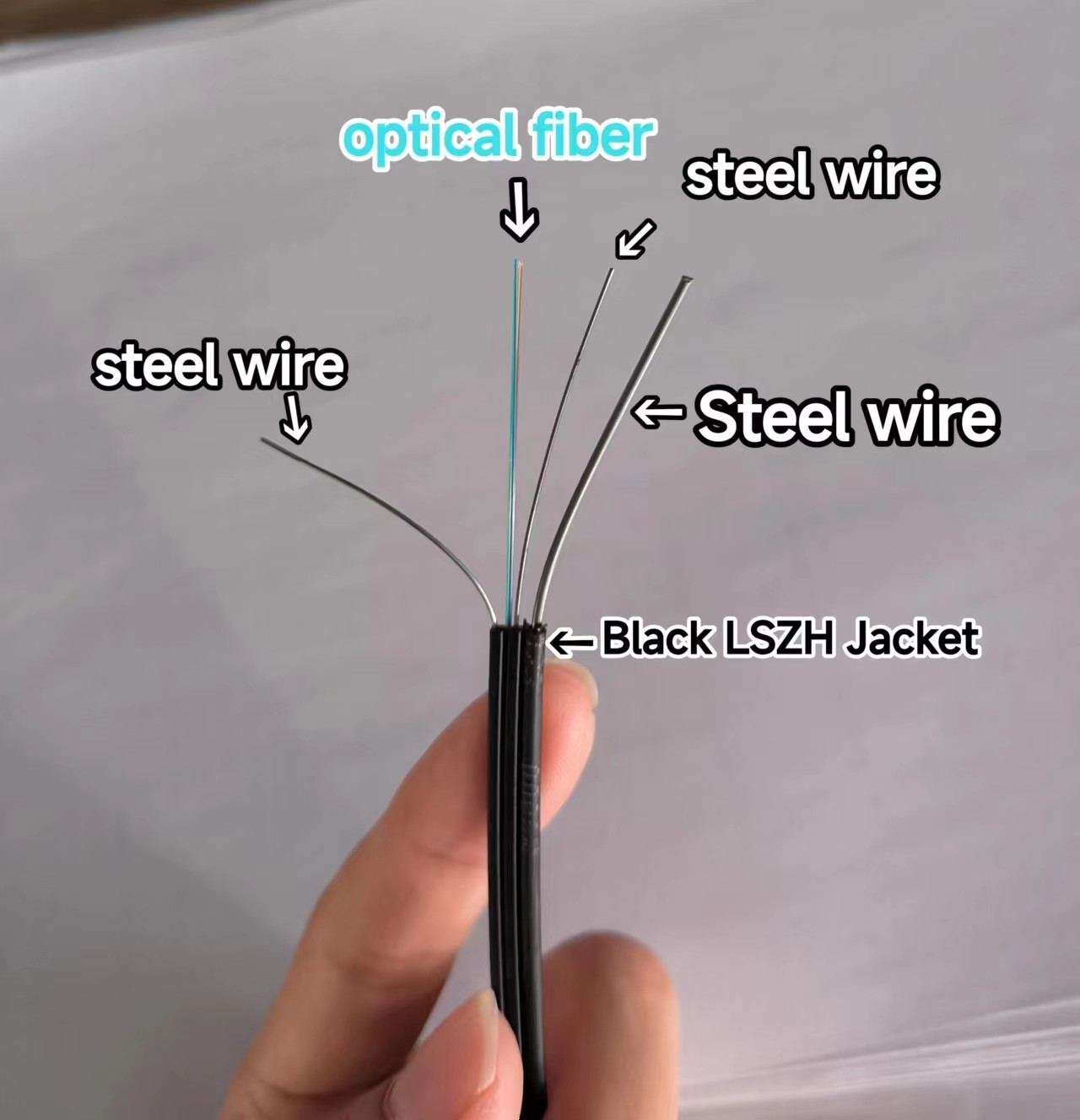

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Characteristic:
Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
Simple structure , light weight and high practicability
special flute desigh , easily strip and splice , simplify the installation and maintenance
Low smoke , zero halogen and flame retardant sheath
Optical Characteristic:
Model
|
142 |
242 |
342 |
442 |
| Type |
G.652D |
G.657A |
50/125 μm |
62.5/125 μm |
Attenuation(+20 ℃) |
850nm |
|
|
≤3.0dB/km |
≤3.5dB/km |
| 1300nm |
|
|
≤1.5dB/km |
≤1.5dB/km |
| 1310nm |
≤0.40dB/km |
≤0.35dB/km |
|
|
| 1550nm |
≤0.3dB/km |
≤0.25dB/km |
|
|
| Brandwidth(Class A) |
850nm |
|
|
≥500MHz.km |
≥200MHz.km |
| 1300nm |
|
|
≥1000MHz.km |
≥600MHz.km |
| Numerical Aperture |
|
|
0.200 ±0.015NA |
0.275 ±0.015NA |
| Cable Cut-off Wave length |
≤1260nm |
≤1480nm |
|
|
Technical Parameters
| Fiber Cores |
Cable OD(mm) |
Cable/Weight(kg/km) |
Tensile Strength(long/short term) |
Crush Resistance(long/short term N/100mm |
Bending Radius Static/Dynamic mm |
| 1 |
(2.0±0.2)* (5.0±0.2) |
20 |
60/120 |
300/1000 |
15/35 |
| 2 |
(2.0±0.2)* (5.0±0.2) |
20 |
60/120 |
300/1000 |
15/35 |
| 4 |
(2.0±0.2)* (5.5±0.2) |
21 |
60/120 |
300/1000 |
15/35 |
| 6 |
(2.0±0.2)* (6.0±0.2) |
22 |
60/120 |
300/1000 |
15/35
|

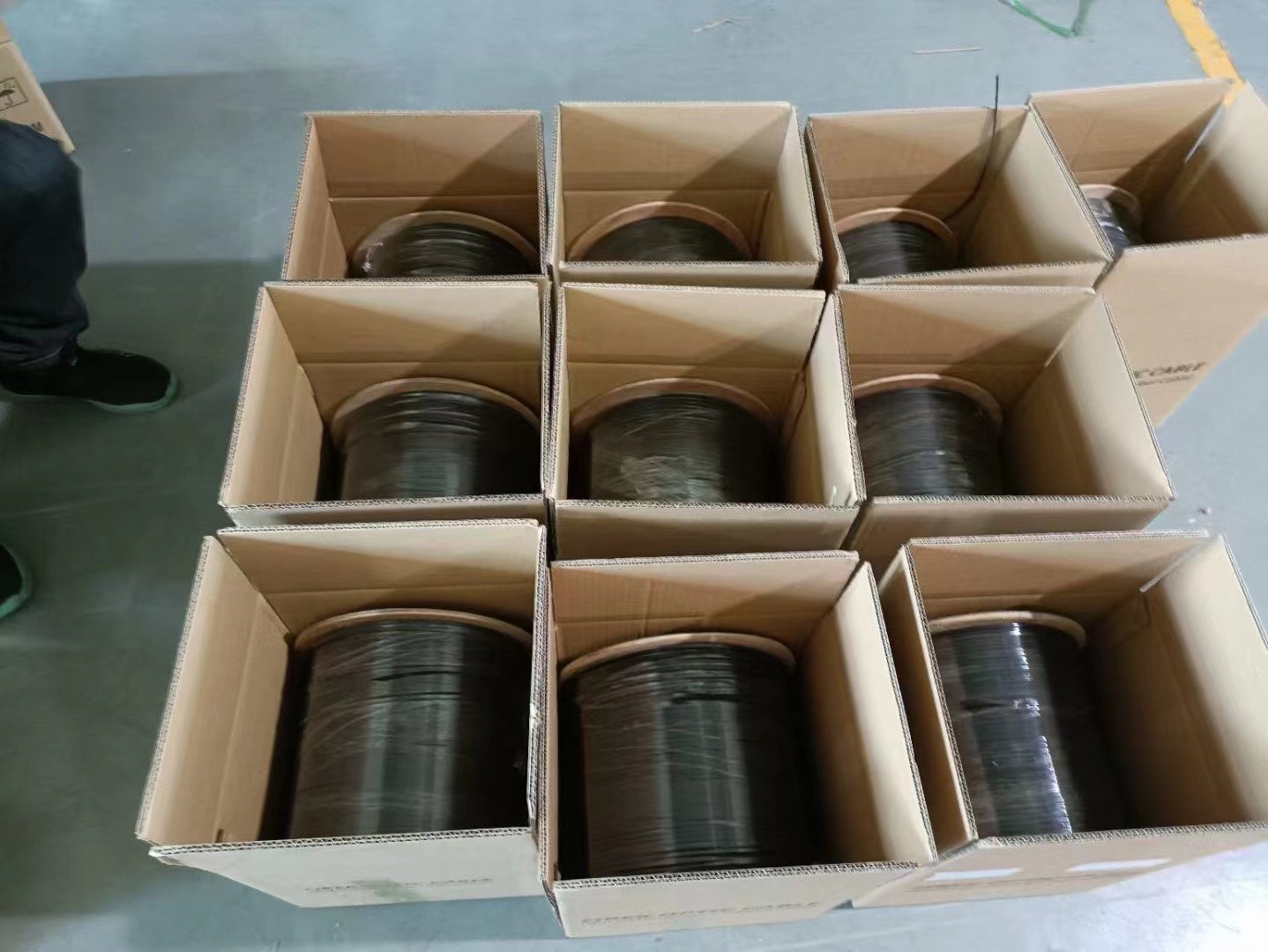

Packing
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
