OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket

1kilometer
MOQ
OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GJXH GJXCH
Brand Name: JQ\OEM
Material Of Sheath: LSZH
Jacket Colors: Black/White/Customized Color
Strength Member: Steel Wire
Fiber Brand: YOFC
Fiber Type: G652D/G,657A
Key Words: FTTH Optical Fiber Cable
Package: Carton/customized
Highlight:

G652D FTTH Fiber Optic Drop Cable

,

OEM FTTH Fiber Optic Drop Cable

,

GJXCH Fiber Optic Drop Cable
Basic Infomation
Place of Origin: China
Brand Name: JQ/OEM
Certification: CE/ISO9001
Model Number: outdoor drop cable
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000kilometers per month
Product Description

Products Description

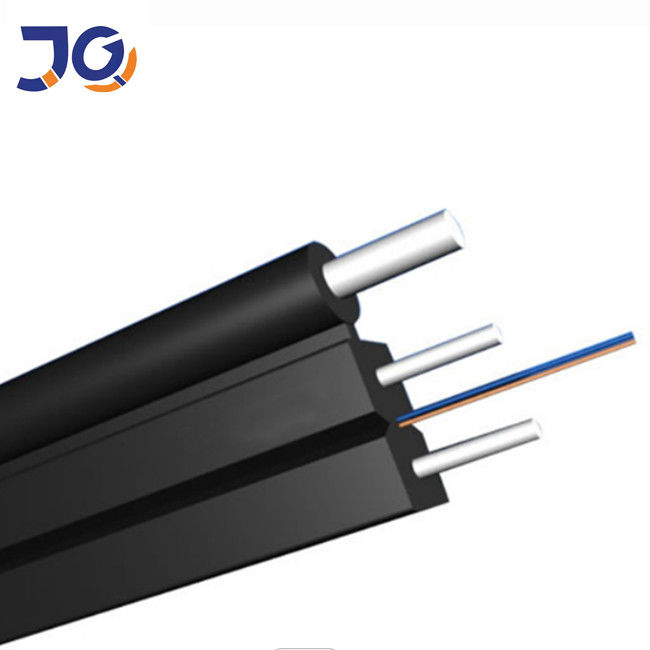

OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket 0


Self-support indoor/outdoor drop cable FTTH fiber optic cable

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.

Characteristic:

Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics.

Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

single metallic strength member makes optical cable having good tensile performance.

Optical cable has simple structure, light weight and strong practicability.

unique groove design, Easy peeled off and splice, simplify the installation and maintenance

Low smoke halogen-free flame-retardant sheath, pro-environment.

Structural Parameter

Model No. Count

quter diameter(mm)±0.2mm

Weight

(kg/km)

 Tension
(N)

Crush

(N/100mm)

 Bending Radius Static / dynamic
(mm)
GJYXCH-1Xn 1 3.1*1.9 9 300/600 1000/2200 10/20
GJYXCH-2Xn 2 3.1*1.9 9 300/600 1000/2200 10/20

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

 1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

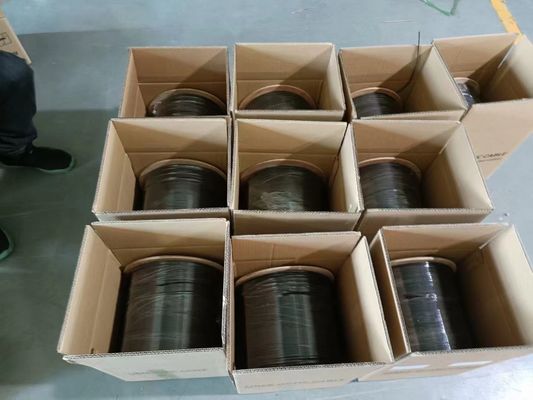

Packing

1/2/3/4km or customized length export carton

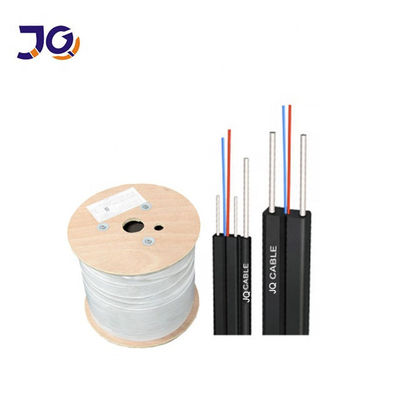

OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket 1

 Application

• Indoor and outdoor wiring system

• FTTH, terminal system

• Indoor and outdoor shaft,building wiring

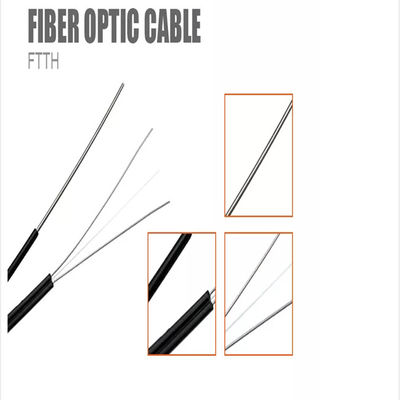

OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket 2



OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket 3



Tag:

Self Supporting FTTH Fiber Optic Drop Cable

GJYXCH fiber drop cable

GJYXCH FTTH Optical Fiber Cable
