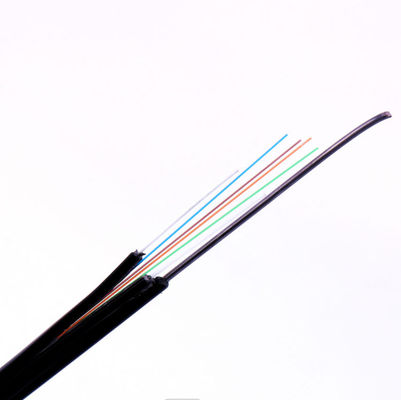

YOFC LSZH Sheath FTTH Fiber Optic Drop Cable for Communication

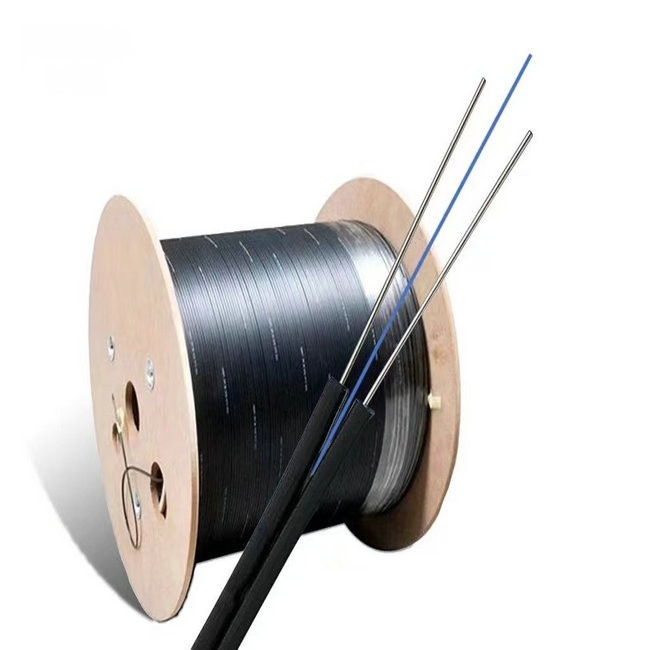

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: outdoor drop cable

Detail Information

Model Number: GJXH GJXCH Brand Name: JQ\OEM
Material Of Sheath: LSZH Jacket Colors: Black/White/Customized Color
Strength Member: Steel Wire Fiber Brand: YOFC
Fiber Type: G652D/G,657A Key Words: FTTH Optical Fiber Cable
Package: Carton/customized
High Light:

LSZH FTTH Fiber Optic Drop Cable

,

YOFC FTTH Fiber Optic Drop Cable

Product Description

Factory Price fiber optic cable ftth fiber optical cable of communication cable

FTTH optical fiber cables G652 G657A fibre 1 2 core single mode GJYXCH drop fiber optic cable

 Products Description

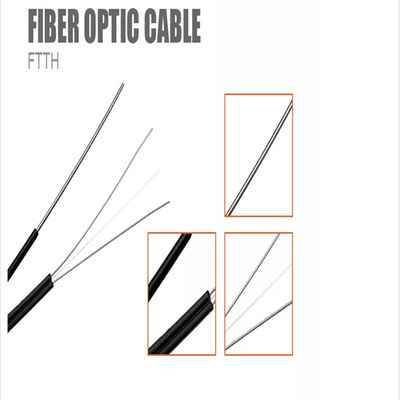

YOFC LSZH Sheath FTTH Fiber Optic Drop Cable for Communication 0

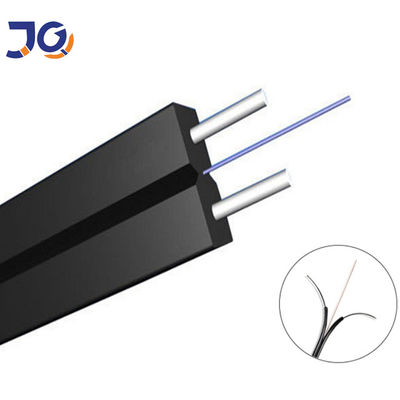

Self-support indoor/outdoor drop cable FTTH fiber optic cable

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket
.

Ftth drop cable as well known as a  fiber optic drop ftth cable developed to transmit light single in last mile internet connections in ftth network construction. Fiber optical cable usually consist of one or more fiber cores, and protected by reinforced material to have appropriate physical attribute to be used during indoor and outdoor ftth network line.
Key Features:
Fiber cores protected by two steel wire
UV resistant LSZH outer shell, durable
High connect usability and easy to operation
Fiber core can be made of G652D, or G657 A1/A2
Apply in outdoor and indoor ftth network distribution
High flexibility, high tensile and crush load
Flame retardant protection
Fair price
Characteristic:

Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics

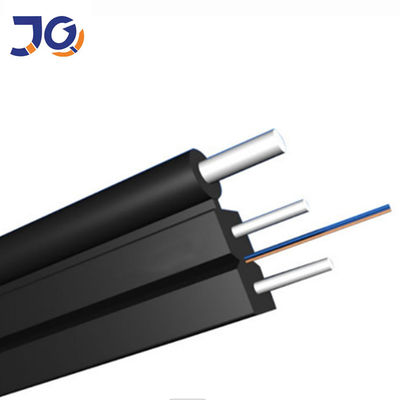

Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure(outdoor drop cable)

single metallic strength member makes optical cable having good tensile performance(indoor drop cable)

Optical cable has simple structure, light weight and strong practicability

unique groove design, Easy peeled off and splice, simplify the installation and maintenance

Low smoke halogen-free flame-retardant sheath, pro-environment

Structural Parameter

Model No. Count

quter diameter(mm)±0.2

Weight

(kg/km)

Tension
(N)

Crush

(N/100mm)

Bending Radius Static / dynamic
(mm)
GJYXCH-1Xn 1 3.1*1.9 9 300/600 1000/2200 10/20
GJYXCH-2Xn 2 3.1*1.9 9 300/600 1000/2200 10/20

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm

≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

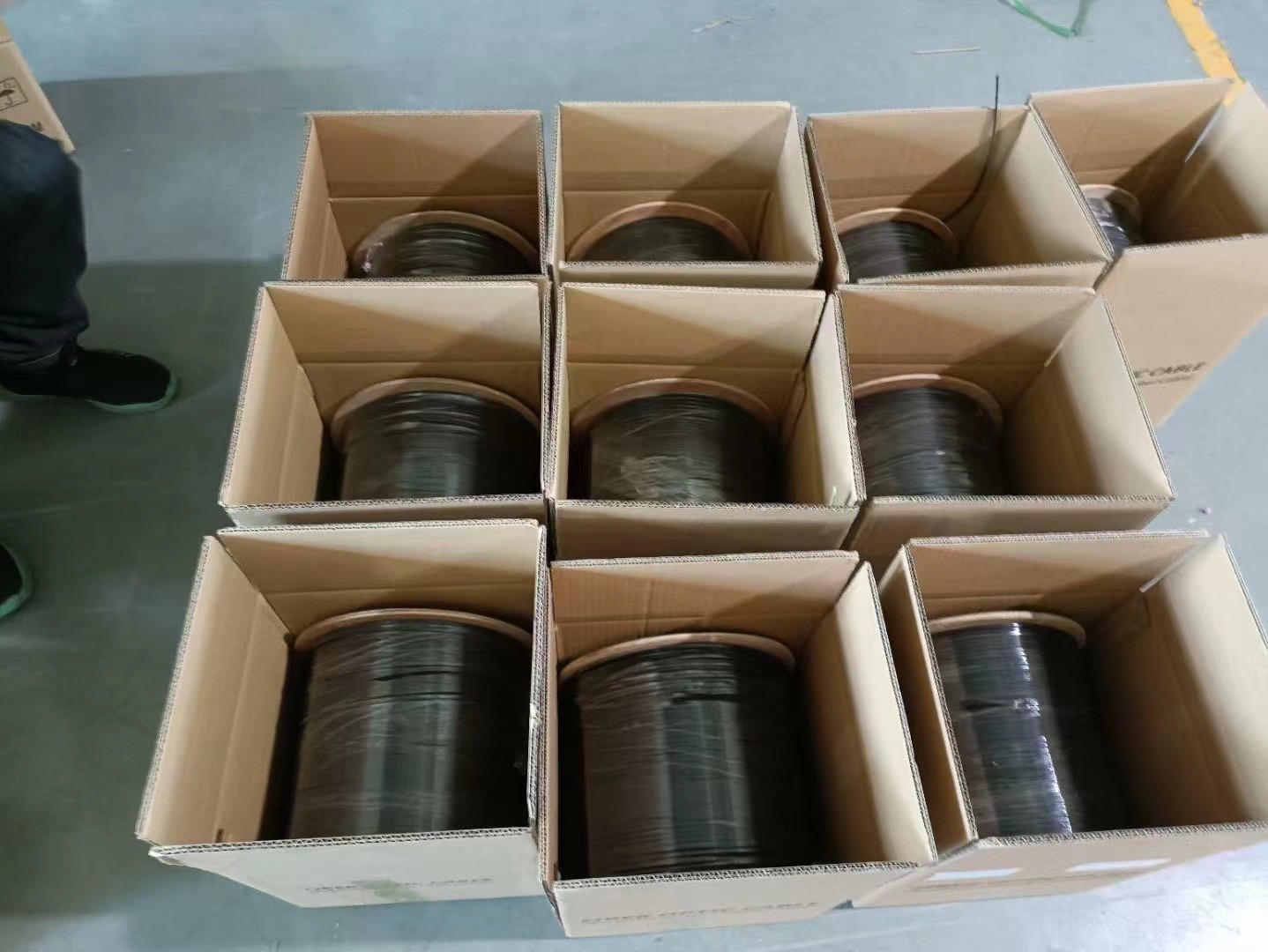

Packing

YOFC LSZH Sheath FTTH Fiber Optic Drop Cable for Communication 1

       Application

• Indoor and outdoor wiring system

• FTTH, terminal system

• Indoor and outdoor shaft,building wiring

YOFC LSZH Sheath FTTH Fiber Optic Drop Cable for Communication 2



FAQ

1.Are you the real manufacturer?
We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
