Name: Multi Mode 50/125 Armored Fiber Optic Cable For Underground Anti Rodent Gyta Gyts
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA
Price: 1,249.01 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-288Core

Strength Member: Steel

Warranty: 25 Years

MOQ: 1KM

OEM: Yes

Amoured: Yes

Length: 1/2/3/4/5KM

Highlight:

Anti Rodent Armored Fiber Optic Cable

Underground Armored Fiber Optic Cable

Armored Fiber Optic Cable Gyta

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: Jiqian

Certification: CE/ISO9001

Model Number: GYTA

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 days, it depends on your quantity

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

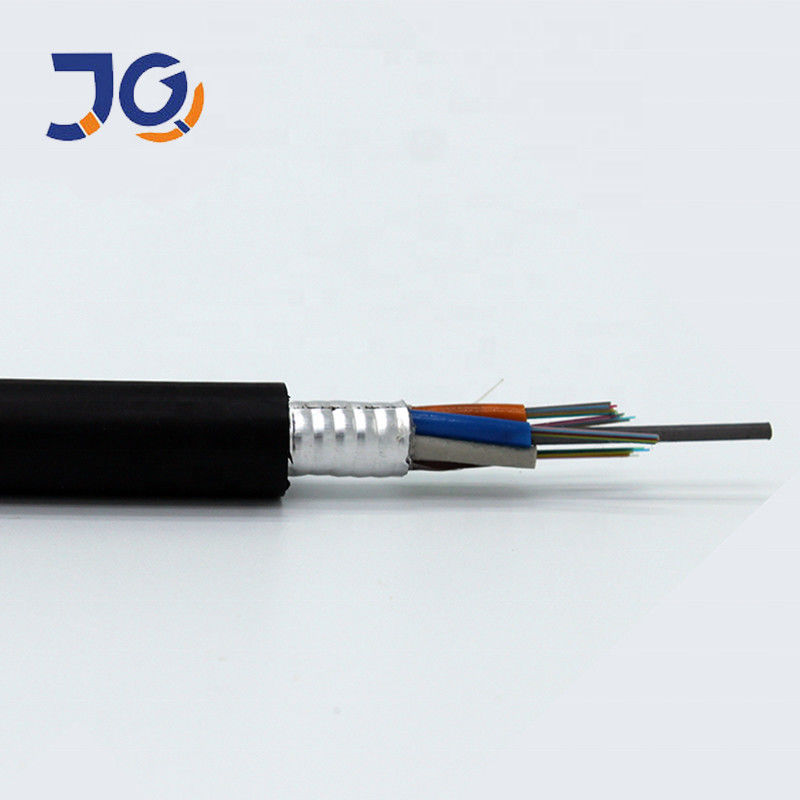

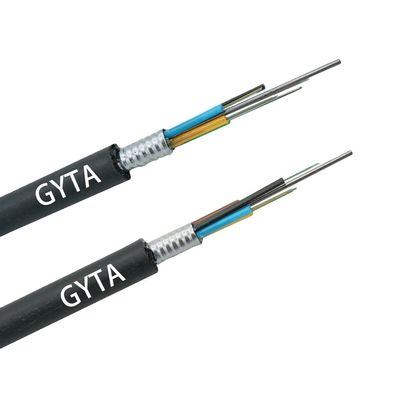

Multi Mode 50/125 Armored Fiber Optic Cable For Underground Anti Rodent Gyta Gyts

Product Description

Anti Rodent Gyta Gyts Multi Modle 50/125 Armored Fiber Optic Cable Price Per Mete For Underground
Product Description

			Product Name

			GYTA Outdoor Fiber Optic Cable

			Material

			PE outer jacket

			Structure

			Stranded Loose Tube Aluminum Tape Cable

			Package

			3km/drum or customized

GYTA Optical Fiber Cable
Steel wire used as the central strength memberSteel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Fiber parameter

			Item
			Unit
			Specification

			Fiber Type
			G.652D

Mode field diameter

			1310nm
			mm
			9.2±0.4

			1550nm
			mm
			10.4±0.8

			Cladding diameter
			mm
			125.0±1

			Cladding non-circularity
			%
			£1.0

			Core/cladding concentricity error
			mm
			£0.5

			Coating diameter
			mm
			245±5

			Coating non-Circularity
			%
			£6.0

			Coating/cladding concentricity error
			mm
			£12.0

			Cable cut-off wavelength
			nm
			£1260

Attenuation Coefficient

			1310nm
			dB/km
			£0.36

			1550nm
			dB/km
			£0.22

			Proof stress level
			kpsi
			≥100

Company Picture

Packaging Details

1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
We still have more. Please feel free to contact me. Whatsapp:+8618122383351
