Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Contact Now

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GYTA53

Detail Information
Fiber Type:	G652D	Color:	Black
Jacket:	PE,MDPE	Fiber Count:	2-288cores
Product Name:	Stranded Loose Tube Armored Cable	Length:	2km Or Customized Length
Installation:	Aerial & Duct	Oem:	Available
Application:	Telecommunication	Type:	Singlemode &Multimode
Name:	Outdoor Armor Fiber Optic Cable
Highlight:	Direct Buried Fiber Optic Cable , 24 Core Fiber Optic Cable , Armoured Steel Tape Fiber Optic Cable

Product Description

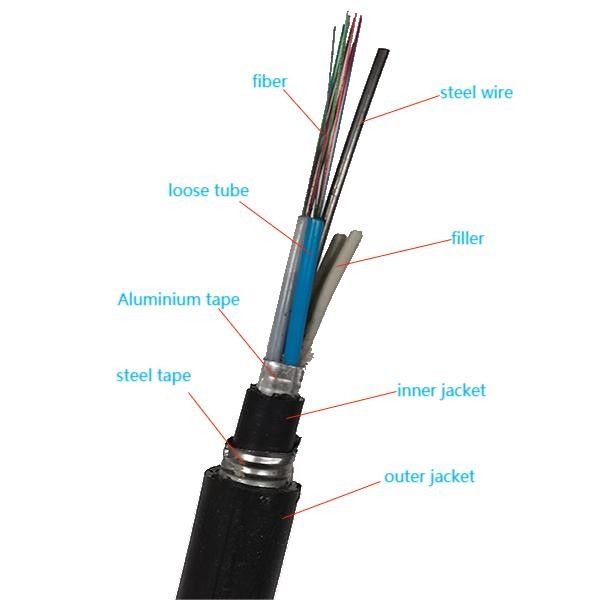

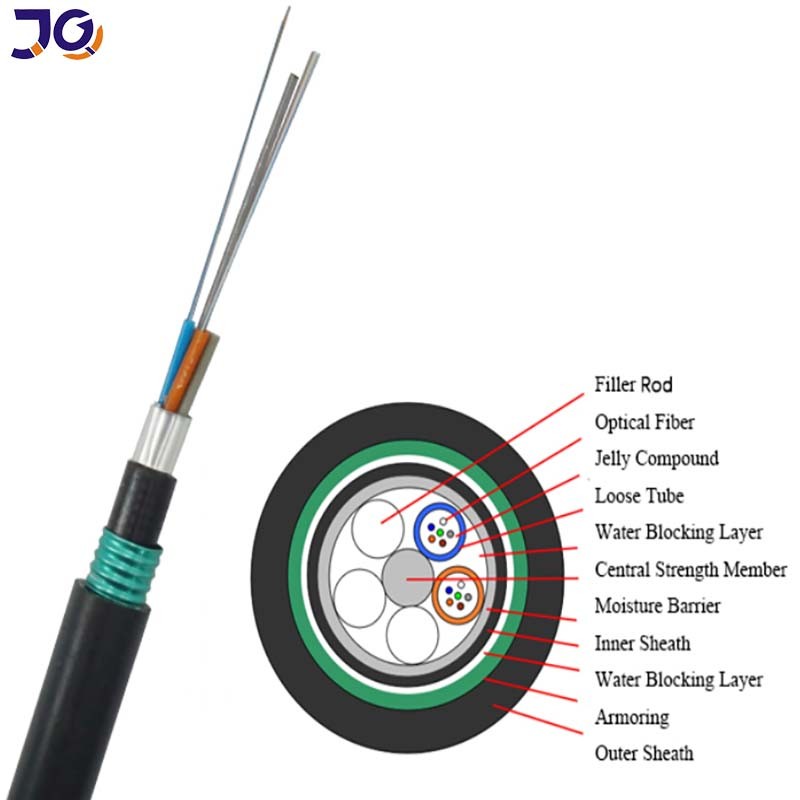

GYTA53 Outdoor Optical Cable is a steel belt armored outdoor direct buried optical cable. burial fiber optic cable The center of the cable core is a metal reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with plastic aluminum strip (APL) longitudinally and extruded with a layer of polyethylene inner sheath,and the double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath.

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 1

Features

1: Direct Burial Fiber Optic Cable Loose tube gel-filled construction for superior fiber protection
2: Double jacket single armored(GYTY53) and Double jacket double armored
3: (GYTA53) for rodent protection and direct burial.
4: UV and moisture-resistant design

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 2

Application

Suitable for directly buired laying method

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical parameters

Items		Specifications
Fiber Count		24CORE
Cable structure		5+1
Loose tube	Number	4
	Fiber counts per tube	6
	Dimension	2.0mm±0.1mm
	Material	PBT
	Filling	Gel
	Color	Blue Orange Green Brown
Central Strength Member	Material	Steel Wire
	Diameter(mm) Approx.	1.5±0.1mm
Outer/inner Jacket	Dimension	11.7± 0.2mm
	Material	PE
	Thickness	1.5-1.8mm
	Color	Black
Armoring	Material	Steel tape +Aluminum tape
Application		Underground Directly buried/duct

Note : This datasheet can only be a reference, but not a supplement to the contract.

Please contact our sales people for more detailed information

Similar model: GYFTA53 FRP as Strength member

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 3

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 4

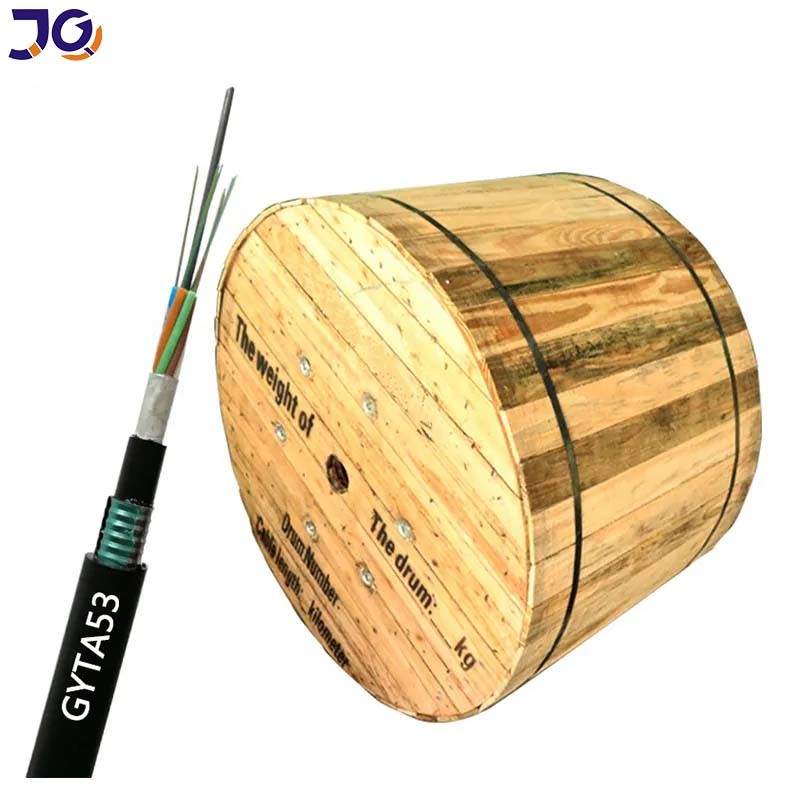

Packing

1/2/3/4km or customized length export wooden drum

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 5

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 6

Double Jacket 24 Core Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53 7

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
