YOFC Armoured Aerial GYXTW Fiber Optic Cable 4 6 8 12 24 Core

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 5-7 days,it depends on order quantity Payment Terms : L/C, T/T,Alipay
Supply Ability : 4500km
Brand Name: Jiqian Model Number: GYXTW

Detail Information

Place Of Origin: Guangzhou,China Certification: ISO 9001/CE/FCC/ROHS
Cable Brand: Jiqian Number Of Conductors:: 12
Application: Duct/aerial Armoured: Yes
Fiber Type: Fiberhome/YOFC Suitable Temperature: -40+60
Manufacturer: Yes
High Light:

24 Core GYXTW Cable

,

YOFC GYXTW Cable

,

YOFC Armoured Aerial Cable

Product Description

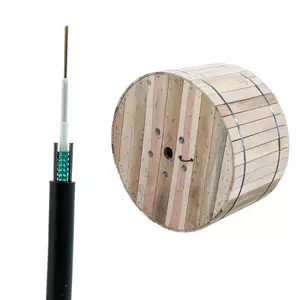

Armoured Aerial GYXTW Fiber Optic Cable 4 6 8 12 24 Core

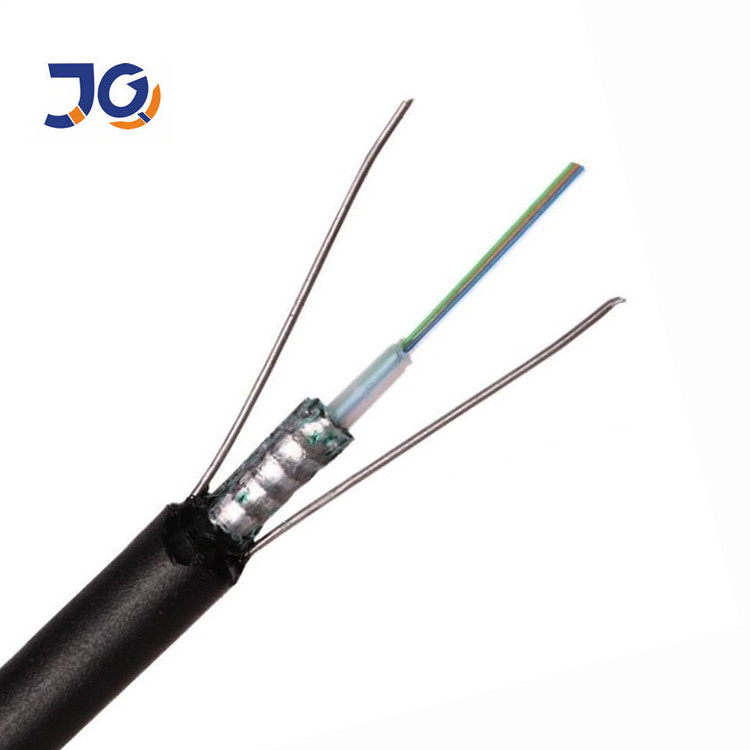

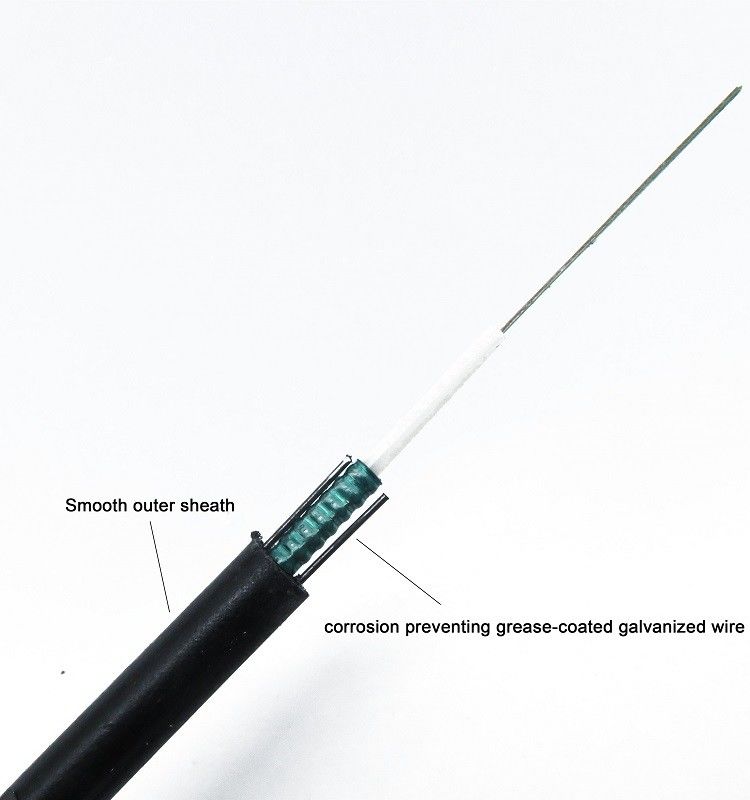

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.

YOFC Armoured Aerial GYXTW Fiber Optic Cable 4 6 8 12 24 Core 0



Product Characteristics

• Material of loose tube has good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The tube is filled with special filler to provide critical protection for the fiber

• Good lateral pressure resistance and softness

• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables

• The two parallel steel wires provides enough tensile strength

• Small diameter, light weight, easy for laying



Fiber Optic Cable G652D



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error μm ≤0.5
Coating diameter μm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error μm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.36
1550nm dB/ks ≤0.22
Proof stress level kpsi ≥100



Cable performance:

Item Parameter
Fiber Count 12
Colored coated fiber Dimension 250µm±15µm
Color Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube Dimension 2.2mm±0.1mm
Material PBT
Color nature
Filler Material none
Color none
Strength Member Dimension 0.7mm±0.05mm
Material Phosphating steel wire
Armoured Material Plastic coated steel strip
Outer jacket Material PE
Color Black

FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
