2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: JQ
Certification: ISO Model Number: GYTA 12core/24core/48core

Detail Information

Fiber Type: G652D Oem: Available
Application: Duct Number Of Conductors: 12 Core 24core 48core 72core 96 Core
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: Aluminium Wires
High Light:

Underground Armoured Optical Fiber Cable

,

24 Cores Armoured Optical Fiber Cable

Product Description

Armoured Outdoor 96Core Fibre Optic Cable Price GYTA Duct Optical Fibre Cable

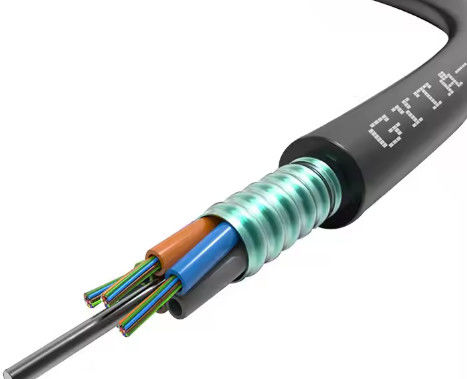

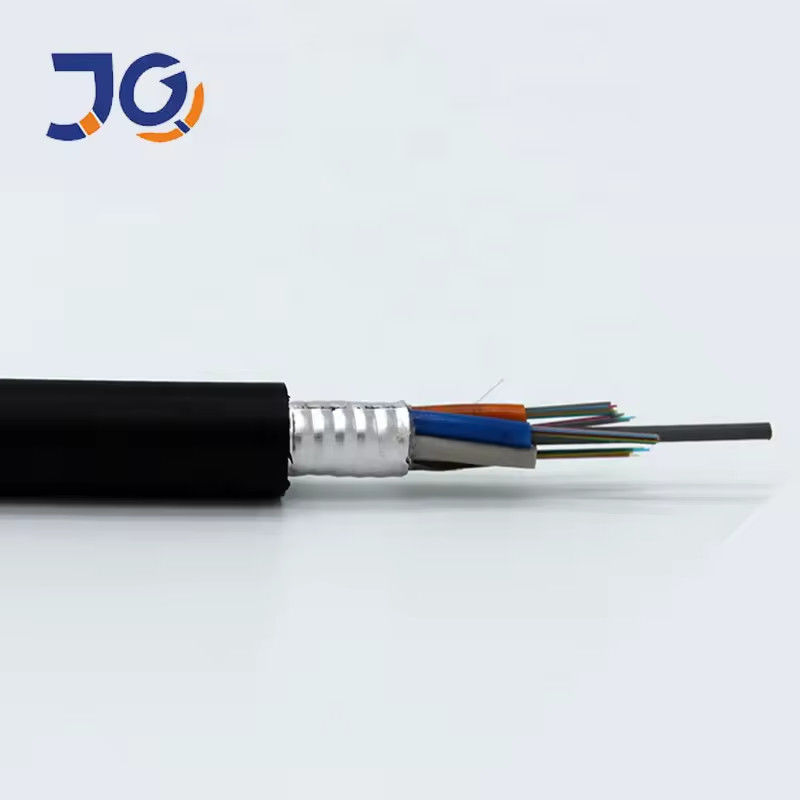

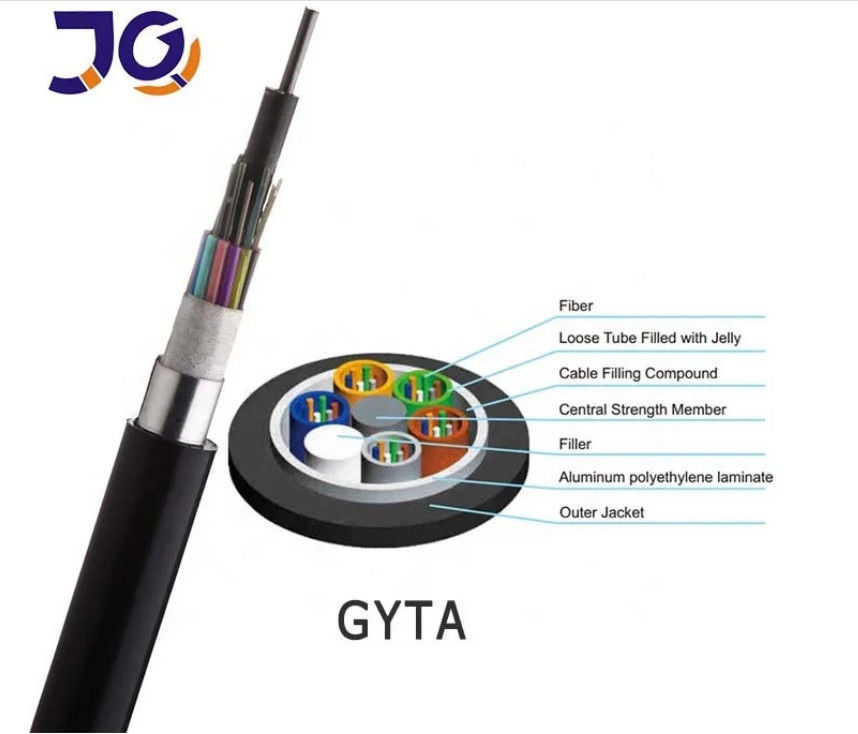

GYTA armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable 0

2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable 1

Characteristics:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath.

Application:
Directly installed into houses Aerial Installation Suitable for Condominiuml Office Installation
Access network, fiber to the home
End users use directly cabling.
Support the internet, CATV and telephone, Support more network increase service in futureGood mechanical and enviromental characteristic Anti-UV charateristics meet the requirements of relevant standards The mechanical charateristics meet the requirements of relevant standards Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission Meet various requirements of market and clients



Optical Characteristics:

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm





<3.0 dB/km

<3.3 dB/km

1300 nm





<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km





1550 nm

<0.22 dB/km

<0.23 dB/km





Bandwidth

850 nm





>500 MHz-km

>200 Mhz-km

1300 nm





>500 MHz-km

>500 Mhz-km

Numerical Aperture





0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength λcc

<1260 nm

<1450 nm









Structure and Technical Specifications



Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber
Per Tube

Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~36

10.3

109

6

6

1500

600

1000

300

38~72

11.5

145

12

6

1500

600

1000

300

74~96

13.5

175

12

8

1500

600

1000

300

98~120

14.8

209

12

10

1700

600

1000

300

122~144

16.6

249

12

12

2000

600

1000

300

146~216

16.7

254

12

18(2 layers)

2000

600

1000

300

218~288

19.0

325

12

24(2 layers)

2500

600

1000

300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.



Company Information.



Guangzhou jiqian fiber optical cable co., LTD is a professional manufacturer of fiber optic cable,it provide a wide range of outdoor/indoor fiber optic cable,ftth drop cable,fiber patch cord with ISO9001/FCC/ROHS/CE International certifications,it's located in Guangzhou city,China We OEM or design any structure of fiber optic cable for you.



2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable 2

2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable 3



Support OEM:



Print your logo on jacket : Customer logo+ GYTA 12 Core +G652D Cable .....2024 ....Meter



Such as :



2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable 4

Delivery:


For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details

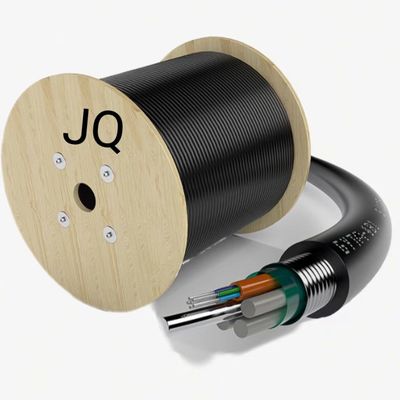

Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2 4 6 8 24 32 48 Cores Armoured Optical Fiber Cable GYTA Underground Fiber Cable 5

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!


2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available



3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.



4.What about Payment?


L/C,T/T,Western Union and Paypal are acceptable.



5.Delivery time?


Generally 3-7 working days, also it is according to qty.



6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
