4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYXTW

Detail Information

Fiber Type: G652D Oem: Available
Application: Aerial Number Of Conductors: 12 24
Structure: Central Loose Tube Operating Temperature: -40 ~ +60 C
High Light:

GYXTW Aerial Fiber Optic Cable

,

4 Cores Aerial Fiber Optic Cable

Product Description

4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable
GYXTW Optical Cable 4/ 6 / 8/12 Core Outdoor Single Mode Optical Fiber Cable



In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable 0

Characteristics:

1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length
2.Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
3.Special compact structure to avoid the loose tube shrinkage
4.Excellent crush resistance and flexibility
5.PSP enhances the cable crush-resistance, impact-resistance and moisture-proof
6.Two parallel steel wires ensure tensile strength. Small diameter, light weight and installation friendliness with long delivery length
7. Excellent ultraviolet prevention with PE sheath

Product Parameter:



No.



Items



Unit

Specification
G.652D


1


Mode Field Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.5
2
Cladding Diameter
μm
124.8±0.7
3
Cladding Non-Circularity
%
≤0.7
4
Core-Cladding Concentricity Error
μm
≤0.5
5
Coating Diameter
μm
245±5
6
Coating Non-Circularity
%
≤6.0
7
Cladding-Coating Concentricity Error
μm
≤12.0
8
Cable Cutoff Wavelength
nm
λcc≤1260


9


Attenuation (max.)
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.24





Transmission Characteristics


G.655
G.655
50/125μm
62.5/125μm
Max Attenuation
(dB/km) (+20℃)
850 nm


3.0
3.3
1300 nm


1.0
1.0
1310 nm
0.36
0.4


1550 nm
0.24
0.23


Cable Cute-off Wavelength (nm)
≤1260
≤1450



Cable Parameters:

Cable Count
Out sheath
Weight
Minimum allowable Tensile Strength
minimum allowable Crush Load
Minimum Bending Radius
Storage
Diameter
(N)
(N/100mm)
(MM)
temperature
(MM)
(KG)
short term
long term
short term
long term
short term
long term
(℃)
2
8.3
78
1500
600
1000
300
20D
10D
20
4
8.3
78
1500
600
1000
300
20D
10D
20
6
8.3
78
1500
600
1000
300
20D
10D
20
8
8.3
78
1500
600
1000
300
20D
10D
20
10
8.3
78
1500
600
1000
300
20D
10D
20
12
8.3
78
1500
600
1000
300
20D
10D
20

Mechanical and Environmental Characteristics:

Items
Unit
Specifications
Tensio (Long Term)
N
600
Tension (Short Term)
N
1500
Crush (Long Term)
N/10cm
300
Crush (Short Term)
N/10cm
1000
Min. Bend Radius (Dynamic)
mm
20D
Min. Bend Radius (Static)
mm
10D
Installation Temperature
-20~+60
Operating Temperature
-40~+70
Storage Temperature
-40~+70
4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable 1

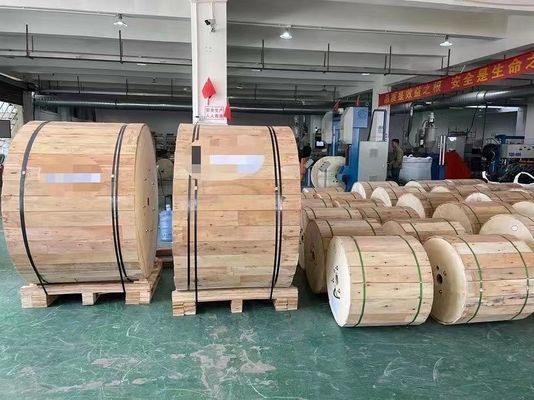

 Product Packing :

1). 4km/reel

2). 5km/reel Color Box and OEM Package available.
20" Container Full Load: 400km.
40" Container Full Load: 800km.

4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable 2

4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable 3

FAQ:

1. Are you the real manufacturer?


Yes, we are factory in guangzhou china, welcome to visit us!


2. what is your minimum quantity?


1KM. We support new project of our customers, trial order is available


3.Can I get a sample?


Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?



L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.




6.Can you supply customized products and logo?


Yes, we supply OEM&ODM service, pls feel free to contact.
