12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A
12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A
12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A 12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A 12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A 12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A 12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A
Contact Now

12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYXTW 16 core 24 core

Detail Information
Fiber Type: G652D Oem: Available
Application: Duct Number Of Conductors: 12 16 24
Structure: Loose Tube Operating Temperature: -40 ~ +60 C
Highlight:

G657A Fiber Optical Cable

,

Single Mode Fiber Optical Cable

,

GYXTW Fiber Optical Cable

Product Description

12 / 16 / 24 Core Single Mode Outdoor Armoured GYXTW G657A Fiber Optical Cable

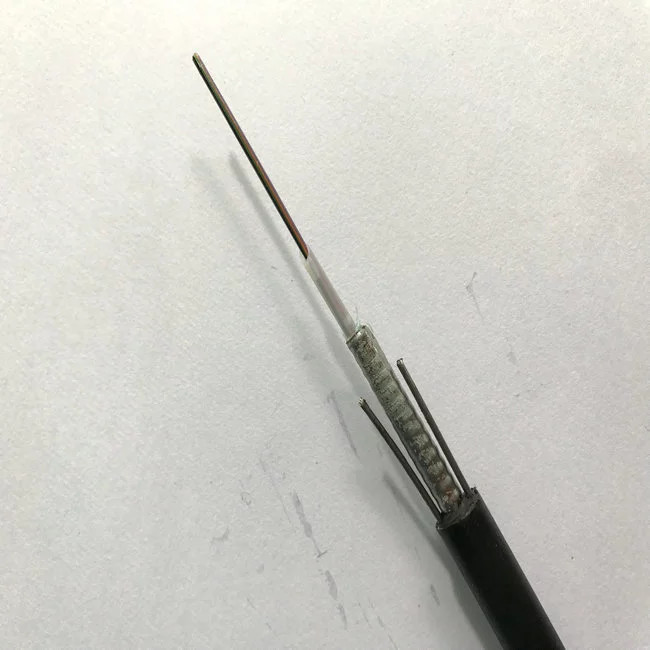

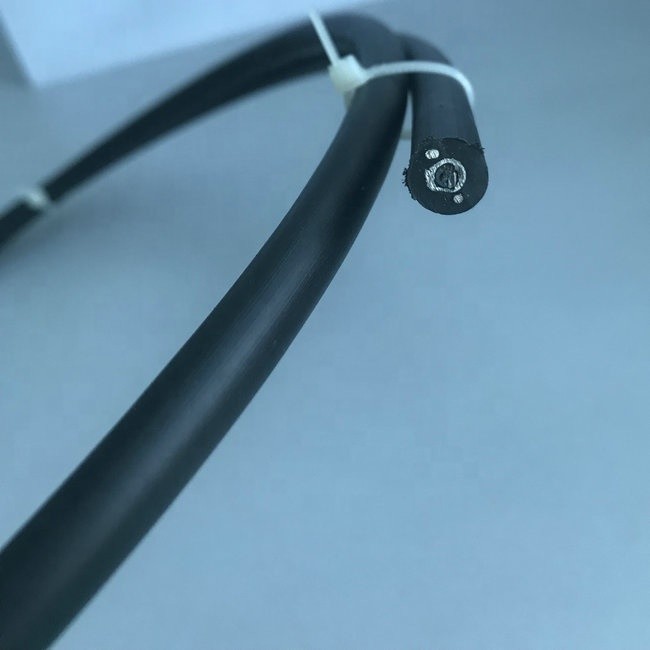

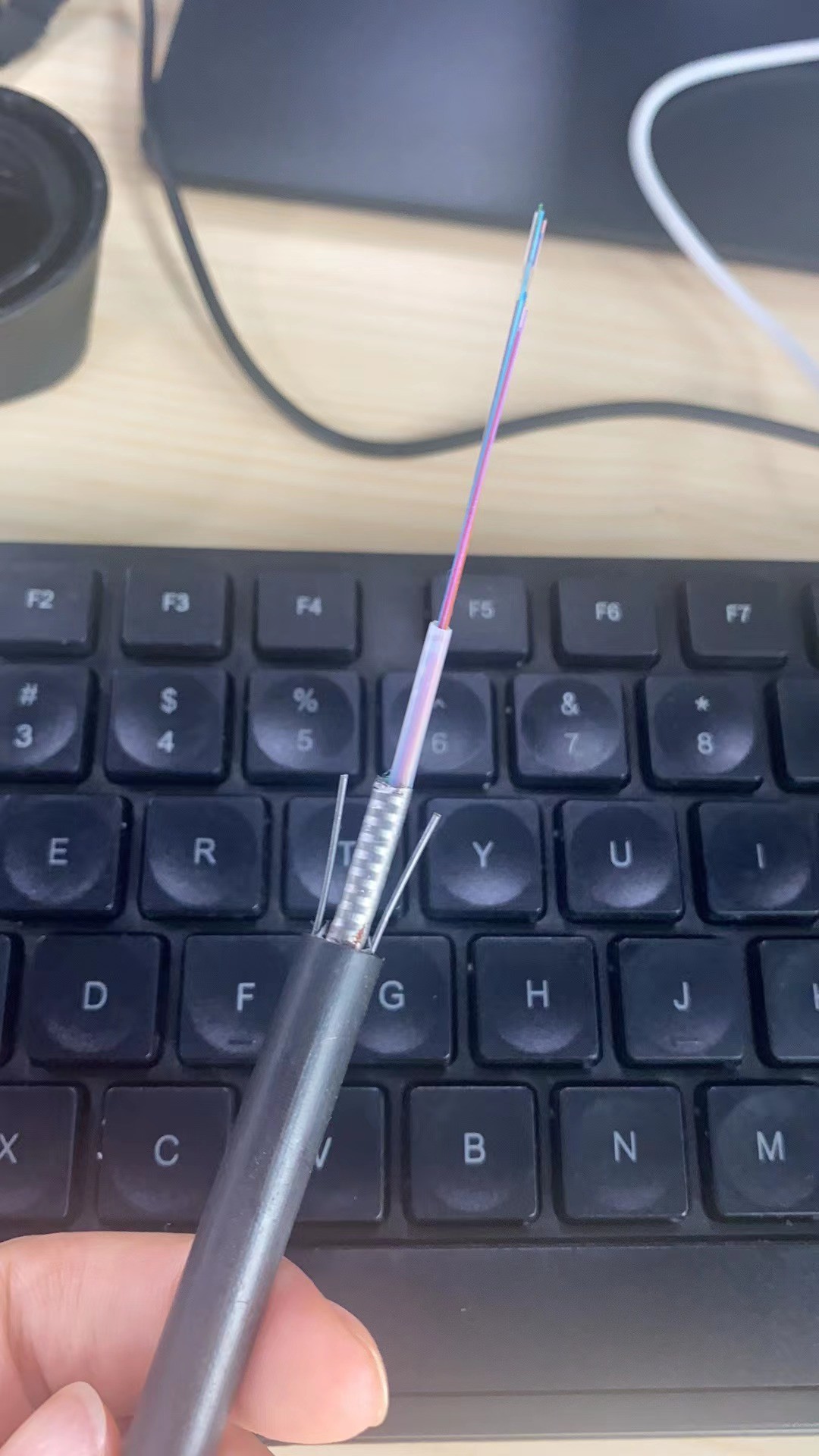

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheat12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A 0

12 / 16 / 24 Core Fiber Optical Cable Single Mode Outdoor Armoured GYXTW G657A 1



Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Storage / Operating Temperature: -40℃~+70℃



Application

Usable in Duct / Aerial



Fiber Parameter

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24



Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



Mechanical and Environmental Characteristics

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70

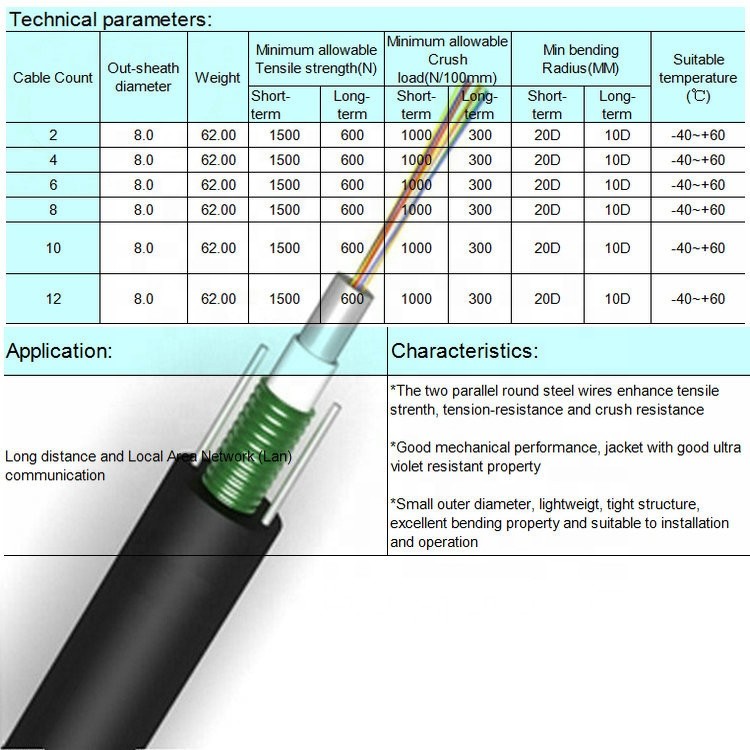

Technical Parameter

Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

Tensile Strength

Long/Short

Term (N)

Crush Resistance

Long/Short

Term (N/100mm)

Bending

Radius Static/Dynamic

(mm)
2~12 10.6 124 1000/3000 1000/3000 10D/20D
14~24 12.0 147 1000/3000 1000/3000 10D/20D





Transmission Characteristics
  G.652 G.655 50/125μm 62.5/125μm

Max Attenuation

(dB/km) (+20℃)

 850 nm     3.0 3.3
1300 nm     1.0 1.0
1310 nm 0.36 0.4
1550 nm 0.24 0.23
Cable Cute-off Wavelength (nm) ≤1260 ≤1450





FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!


2. what is your minimum quantity?


1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?


L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?


Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
